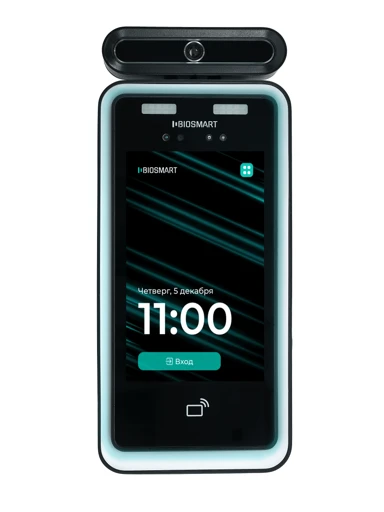

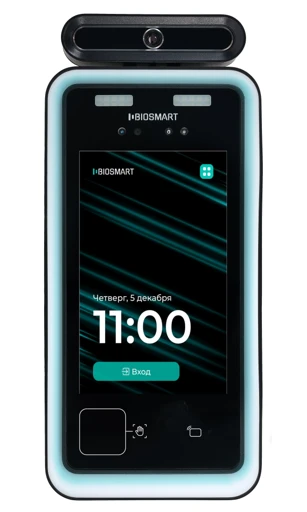

BioSmart Quasar Biometric Access Terminal

BioSmart Quasar Biometric Access Terminal

Brand: BioSmart

$420 - $1,500 USD

MOQ: 5 pieces

Key Features

Overall dimensions: 379 x 174 x 40 (mm)

Temperature range: -10...50 million m³

Type of biometric scanner: 3D camera with 5 Mpx RGB sensor, 1 Mpx Ir sensor and with infrared projector

Degree of protection of the housing against dust and moisture: IP54

Supplier Information

PROSOFT-BIOMETRICS LLC

🇷🇺 📦 🏭 🛡️

View All Products

Quick Inquiry

More from BioSmart

BioSmart 4-O Fingerprint and RFID Access Control Controller

$150-$480

BioSmart PalmJet BOX - Contactless Palm Vein Reader

$150-$480

BioSmart Prox-E Fingerprint and RFID Access Controller

$150-$540

BioSmart UniPass Pro Palm Vein and RFID Access Controller

$450-$1,800

BioSmart 4-E Biometric Access Controller

$150-$480

Palm Vein Scanner BioSmart DCR-PV

$150-$480

BioSmart 5M-E Fingerprint and RFID Access Control Controller

$90-$300

BioSmart DCR-PV-XX Combined Biometric Reader

$360-$1,500

BioSmart 5M-O Fingerprint and RFID Access Controller

$90-$300

BioSmart WTC2 Fingerprint and RFID Access Terminal

$90-$300

BioSmart UniPass Controller for Palm Vein Identification

$150-$540

BioSmart PalmJet Contactless Palm Vein Reader

$150-$480

BioSmart Palm Vein Reader PV-WM

$150-$480

BioSmart Mini-O Fingerprint and RFID Reader

$60-$220

BioSmart PV-WTC Palm Vein and RFID Access Terminal

$210-$720

BioSmart UniPass-EX Palm Vein and RFID User Identification Controller

$270-$900

BioSmart Prox-E-EX Fingerprint and RFID Access Controller

$210-$660

BioSmart Mini-E Fingerprint and RFID Reader

$36-$150

Description

The terminal is designed to identify users by face and RFID-cards as part of a biometric system of access control and management and time tracking system. It has a built-in camera complex, RFID-reader, relay, discrete inputs and outputs, interfaces RS-485, Wiegand In/Out, USB 2.0, Wi-Fi, Ethernet + PoE, display and polyphonic speaker.

Operating temperature range from -10°C to +50°C. Degree of protection of the case IP54.

Specifications

Overall dimensions

379 x 174 x 40 (mm)

Temperature range

-10...50 million m³

Type of biometric scanner

3D camera with 5 Mpx RGB sensor, 1 Mpx Ir sensor and with infrared projector

Degree of protection of the housing against dust and moisture

IP54

Net weight

1880 million m² total area

Power supply parameters

DC 12V 2A or PoE (IEEE 802.3at class 4)

Indication means

Display and polyphonic speaker

Built-in relay

One relay with normally open and normally closed contacts (DC 30 V 2 A)

Supported interfaces

Wiegand In/Out, RS-485, USB 2.0, discrete inputs and outputs

Interface for communication with the server

Ethernet (100BASE-TX / 10BASE-Te IEEE 802.3), Wi-Fi (IEEE 802.11)

Maximum number of events stored on the terminal

100000 µGy

Maximum number of RFID tags stored on the terminal

1000000 µGy

Maximum number of biometric face templates stored on the terminal

1000000 µGy

RFID card formats (optional)

EM-Marine; Mifare (Classic, ID, Mini, Ultralight, DESFire, Plus), including secure Mifare Plus SL3 and SL1 modes; ISOProx II

Identifier types

Face, RFID card
