Assembled Refrigeration Chambers with Insulated Doors

Assembled Refrigeration Chambers with Insulated Doors — TECHNOLOGIES OF COLD LLC

Name: Assembled Refrigeration Chambers with Insulated Doors
SKU: 408399
Availability: InStock

$3,000 - $120,000 USD

MOQ: 1 pieces

Key Features

Refrigeration chamber volume: 1000...1000000000 l

length: 1360...500000 mm

height: 1000...50000 mm

Thickness of sandwich panel: 25...300 mm

Supplier Information

TECHNOLOGIES OF COLD LLC

🇷🇺 📦 🏭 🛡️

View All Products (2)

Quick Inquiry

Description

Assembled refrigeration chambers from TECHNOLOGIES OF COLD LLC (Tekhnologii Kholoda, Republic of Tatarstan, Russia) are modular cold rooms built from polyurethane-foam sandwich panels manufactured in-house and joined with a PVC tongue-and-groove locking system. The modular design allows the chamber to be erected quickly on site without special skills or tools, and the company engineers rooms to any dimensions — from the compact KHM-2.94 (3 m³, 1360×1360×2200 mm) through the KHM-11.75 (12 m³, 2560×2560×2200 mm) and beyond to custom warehouse-scale installations.

Panels are available in thicknesses from 25 to 300 mm, supporting medium-temperature storage, low-temperature freezing and shock-freezing duty. Each chamber ships as a complete kit: wall, floor and ceiling panels, corner posts, a universal door frame that can be hung right- or left-opening, and Italian MTH hinges.

Door options cover single- and double-leaf hinged, sliding and swing configurations with a standard 800×1850 mm clear opening on series models. The manufacturer pairs its chambers with refrigeration units from established Russian brands — MariHolodMash, Brandford and Ariada — and the panel construction meets fire-safety requirements while resisting mould and pathogenic microorganisms.

Optional extras include dust- and moisture-protected interior lighting, reinforced flooring with 1.5–3 mm patterned steel sheet, and loading ramps, making the chambers suitable for food production, retail, catering and pharmaceutical storage.

Details & Equipment

Door configurations

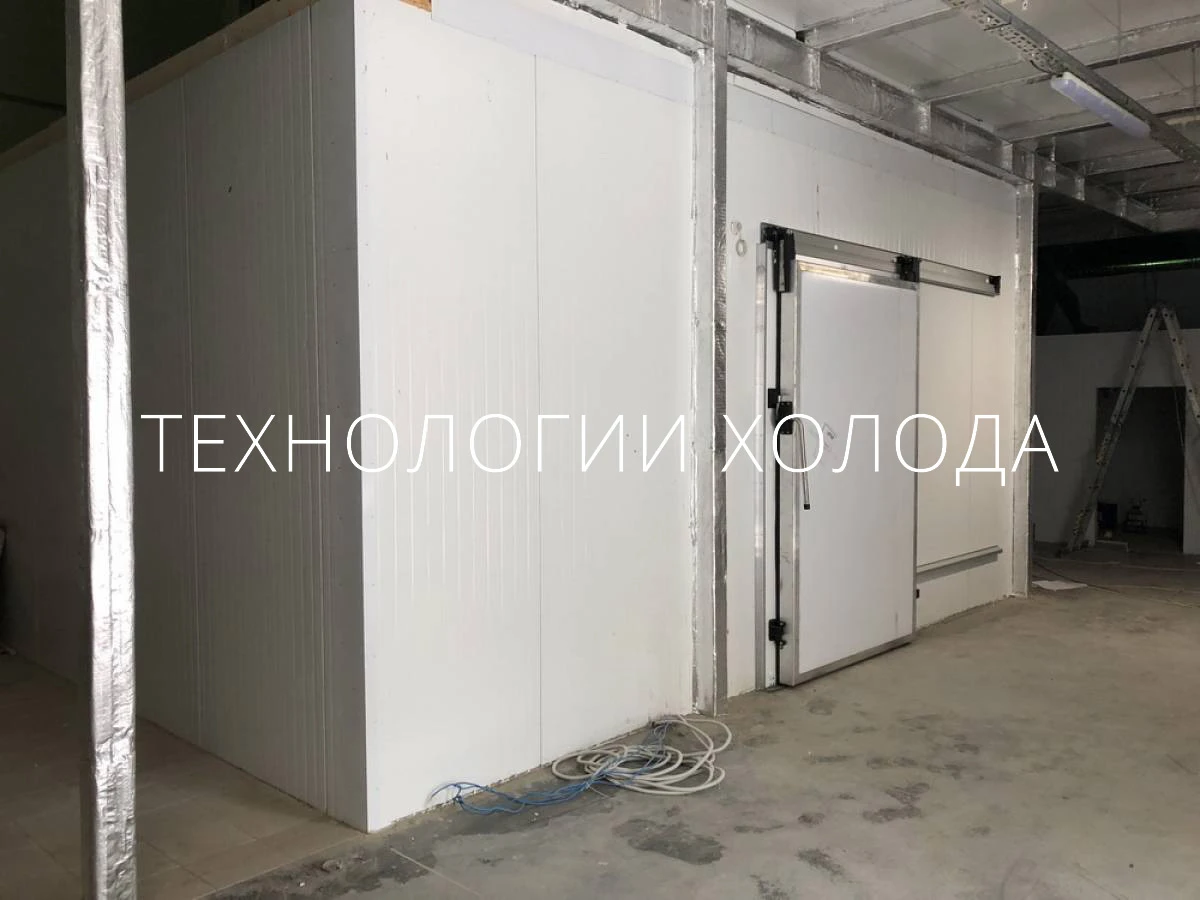

Sliding-door cold warehouse

A large assembled chamber with a sliding insulated door — the preferred configuration for warehouse rooms where trolleys and pallet trucks pass through wide openings.

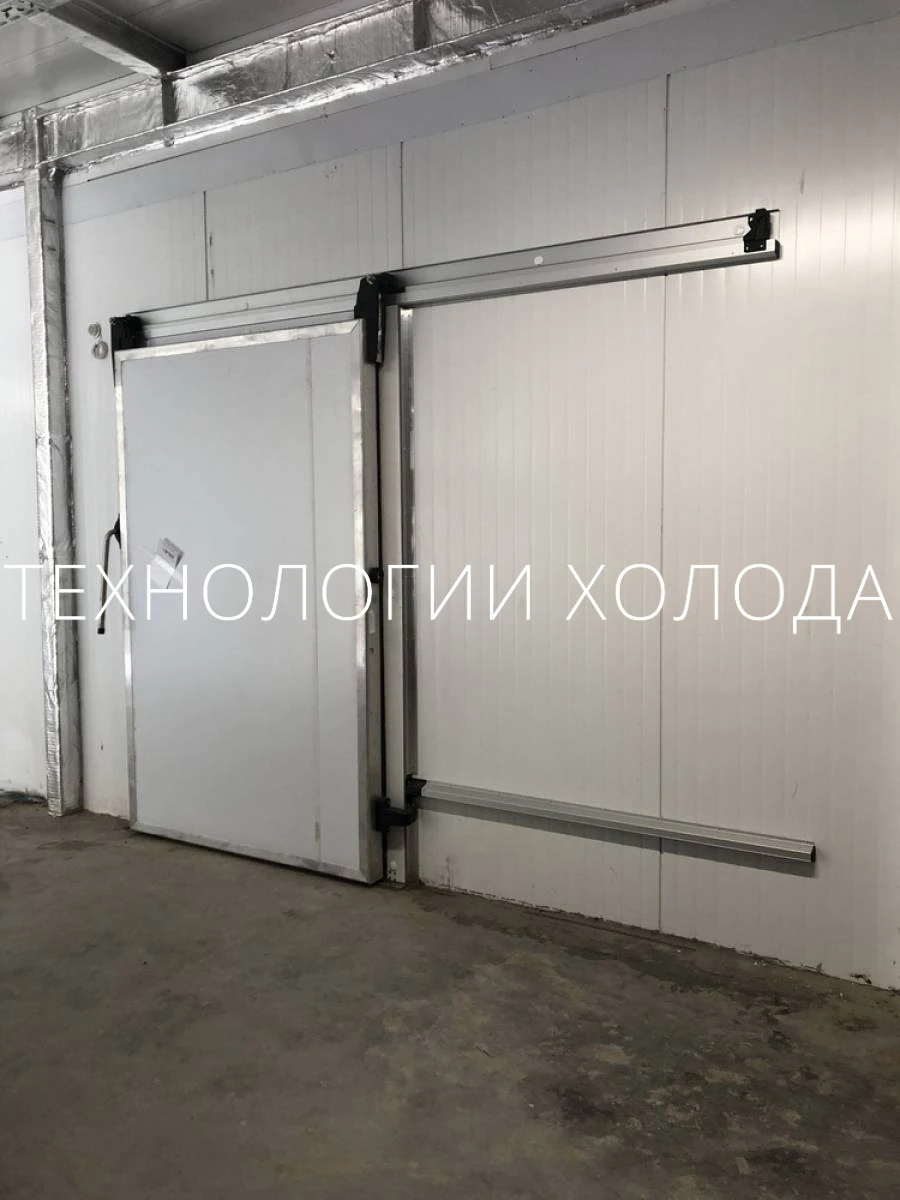

Sliding door close-up

The overhead-rail sliding door seals against the panel wall; the universal frame design allows right- or left-hand installation.

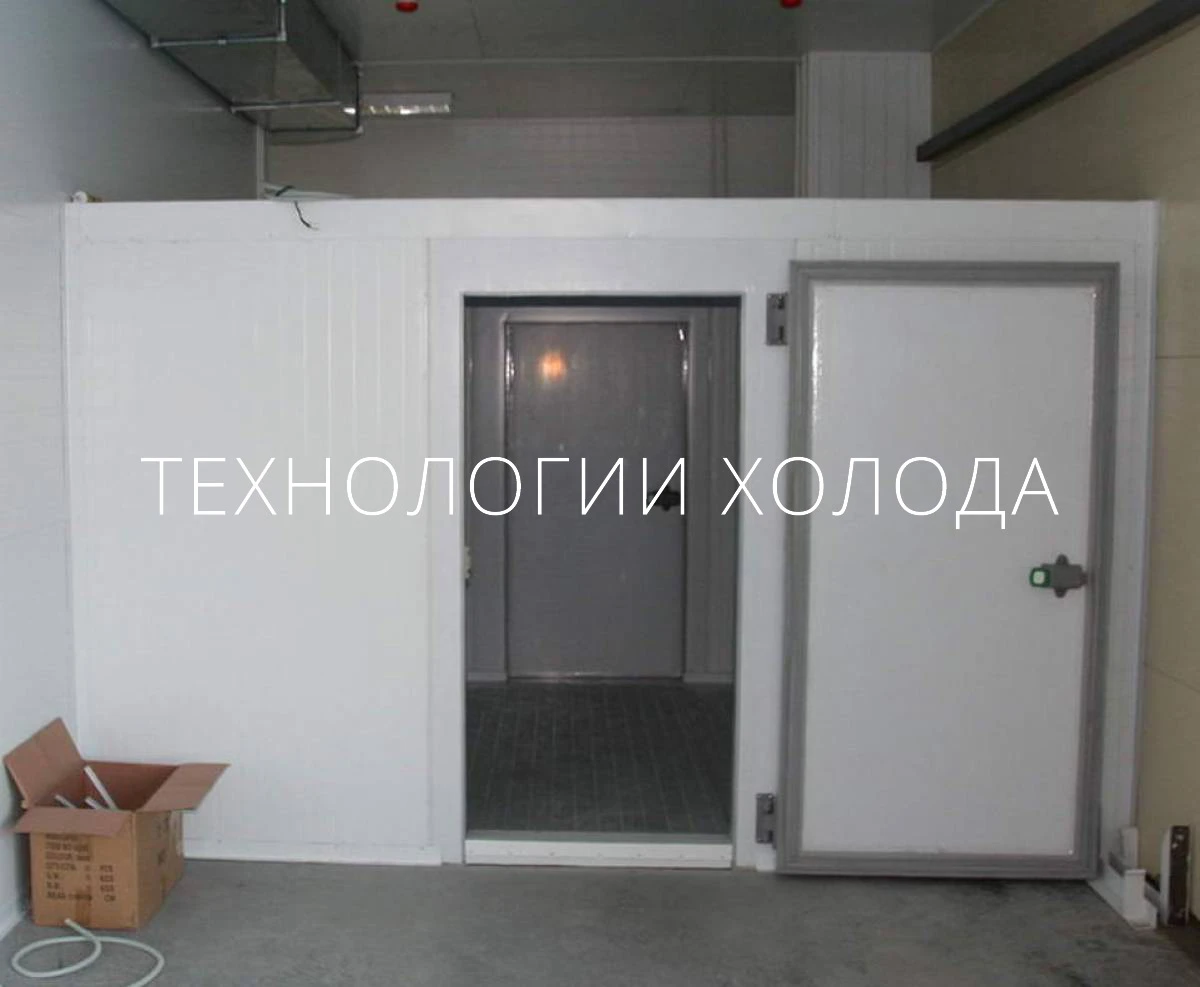

Hinged insulated door

A walk-in chamber with a single-leaf hinged door on Italian MTH hinges and a standard 800×1850 mm clear opening.

Installation examples

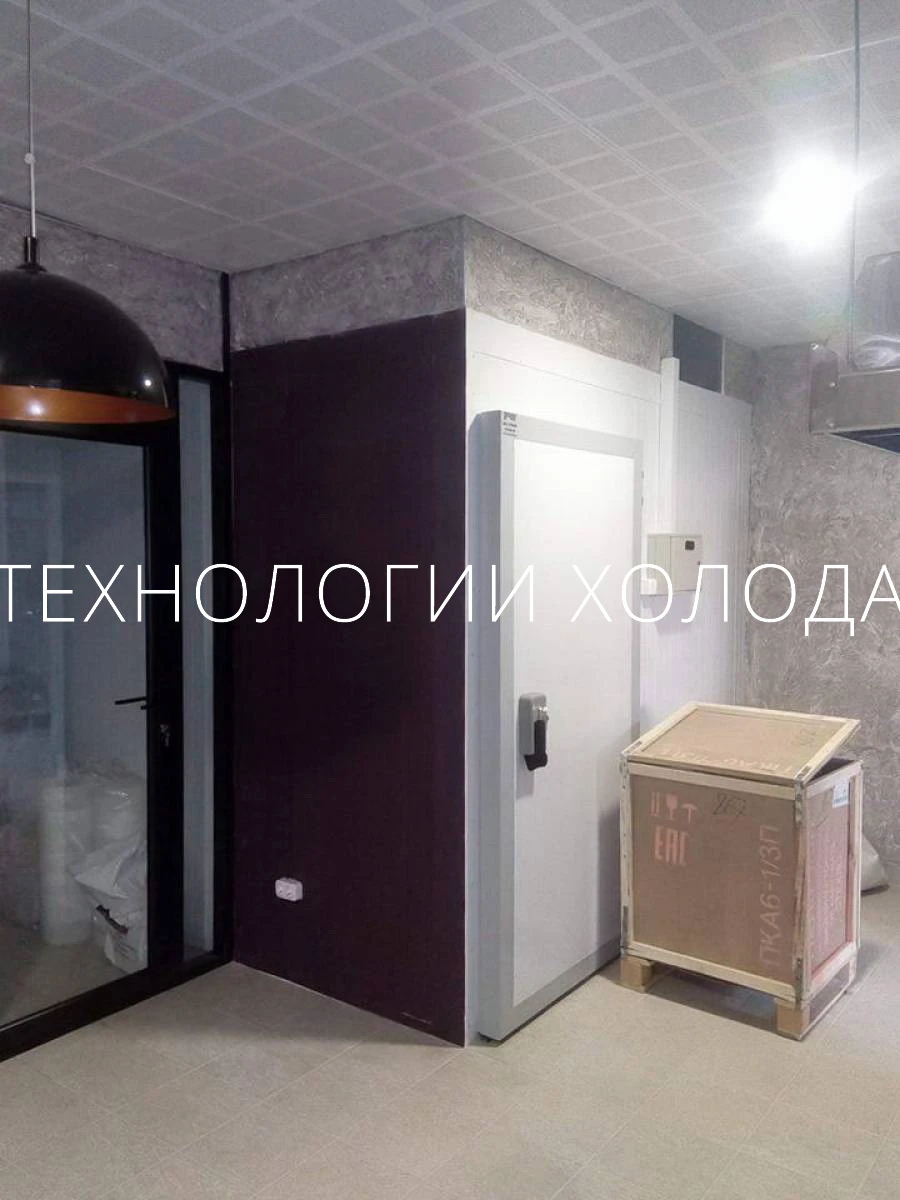

Compact chamber for catering

A small-footprint chamber installed inside a cafe back-of-house — series models start at 3 m³ with a 1360×1360 mm footprint.

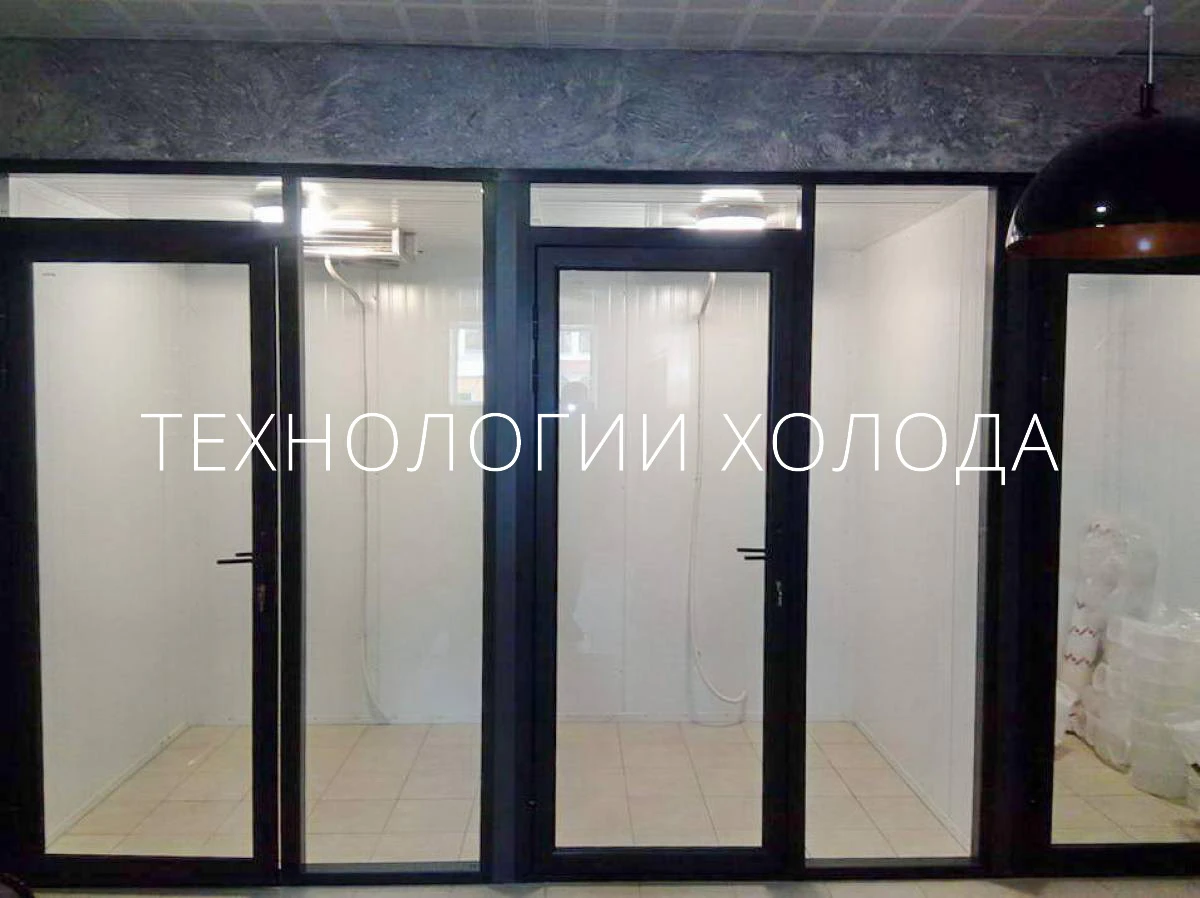

Display chambers with glazed doors

A row of assembled chambers fitted with glazed door blocks and interior lighting for retail display of chilled goods.

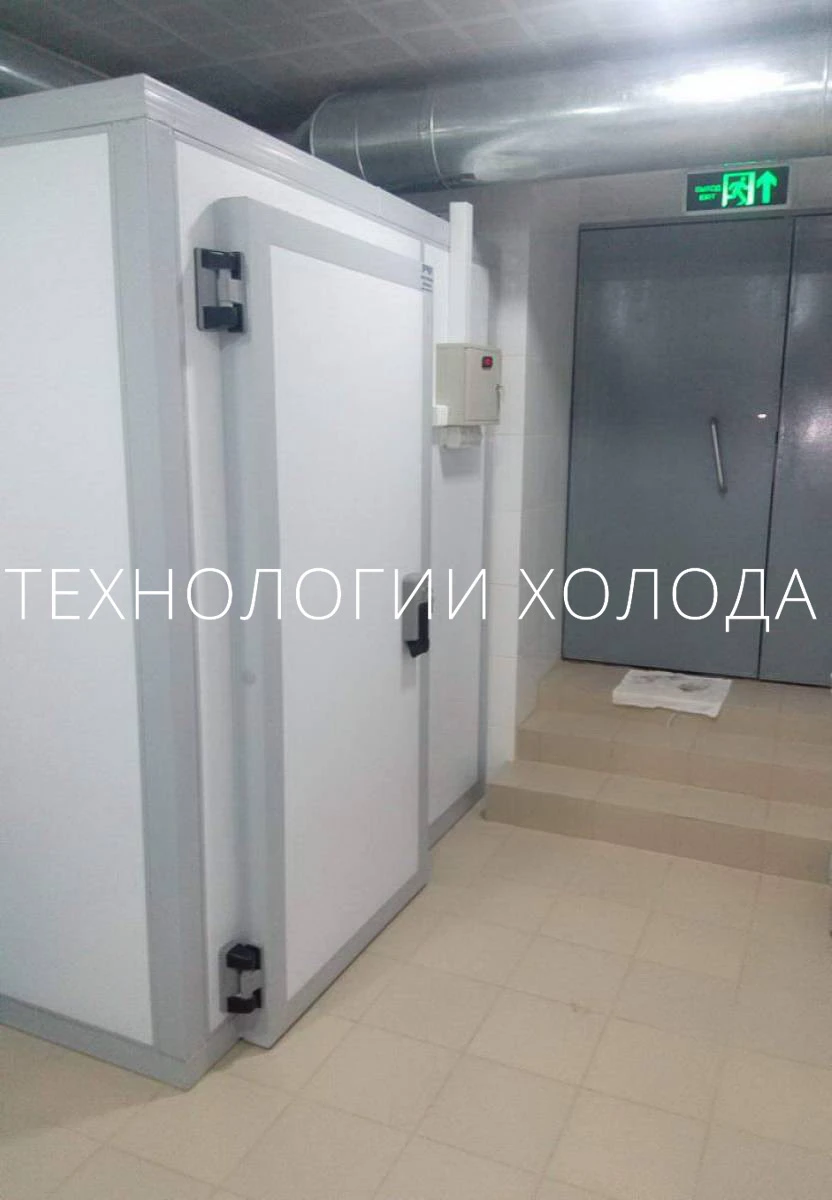

Production-site cold room

A medium-temperature chamber with external control cabinet installed at a food production facility.

Features

🧊

Own-production sandwich panels

Walls, floor and ceiling are PUR-foam sandwich panels made by the manufacturer itself, in thicknesses from 25 to 300 mm to match the required temperature regime.

🔧

Tool-free modular assembly

Panels join with a PVC tongue-and-groove lock, so the chamber is assembled on site quickly without special skills or instruments and can later be relocated.

🚪

Full range of insulated doors

Single- and double-leaf hinged, sliding and swing doors are available; the universal door frame hangs right or left, with a standard 800×1850 mm opening and Italian MTH hinges.

🌡️

Three temperature regimes

Configurations cover medium-temperature storage, low-temperature freezing and shock freezing, using refrigeration units from MariHolodMash, Brandford and Ariada.

📐

Any size, from 3 m³ upward

Series models run from KHM-2.94 (3 m³, 1360×1360×2200 mm) to KHM-11.75 (12 m³, 2560×2560×2200 mm), and custom chambers are designed to any client dimensions.

🛡️

Hygienic and fire-safe construction

Panel surfaces comply with fire-safety norms and do not promote mould or pathogenic microorganisms, suiting food and pharmaceutical storage.

Buyer Benefits

Factory-direct pricing without reseller margin, straight from the panel manufacturer
Fast on-site assembly without special tools — minimal downtime when commissioning a store or production site
Modular construction lets the chamber be enlarged, reconfigured or moved to a new location
One supplier for the full scope: design, panel production, doors and matched refrigeration units
Panel thickness selectable from 25 to 300 mm, so insulation is matched to chiller, freezer or shock-freezing duty
Standard kit includes a reversible universal door frame and Italian MTH hinges
Optional floor reinforcement (1.5–3 mm steel sheet), ramps and sealed lighting adapt the chamber to heavy trolley traffic

Applications

Meat-processing plants storing chilled meat and semi-finished products Dairy production and distribution facilities Industrial-scale food factories and processing plants Bakeries, confectioneries, canteens, cafes and restaurant complexes Harvesting, freezing and long-term storage of fruit and vegetables Grocery stores and supermarkets selling perishable goods Cold storage of flowers and fur products Temperature-controlled storage of medicines and pharmaceuticals

Source: official manufacturer website
