The ARBYTE CADStation G16 is a high-performance dual-processor graphic workstation engineered for demanding professional visualization and computational workloads. Manufactured by ARBYTE (ООО «Арбайт»), a Russian developer and producer of computing hardware, the CADStation G16 is registered in the Minpromtorg Unified Registry of Russian Electronic Products (record No.
10577238), making it eligible for government and state-enterprise procurement under Russian import-substitution regulations.
At the core of the system are up to two Intel® Xeon® Scalable v3 processors on an Intel C621 chipset, delivering exceptional multi-threaded throughput for simulation, rendering, and data-intensive workloads. DDR4 memory scales from 8 GB up to 4 TB, accommodating the largest datasets encountered in scientific computing or 3D rendering pipelines.
Storage is highly configurable, with front-panel bays supporting up to 24 HDD/SSD drives in SAS, SATA, or NVMe formats plus dedicated rear-panel and NVMe slots, backed by built-in RAID 0/1/5/10.

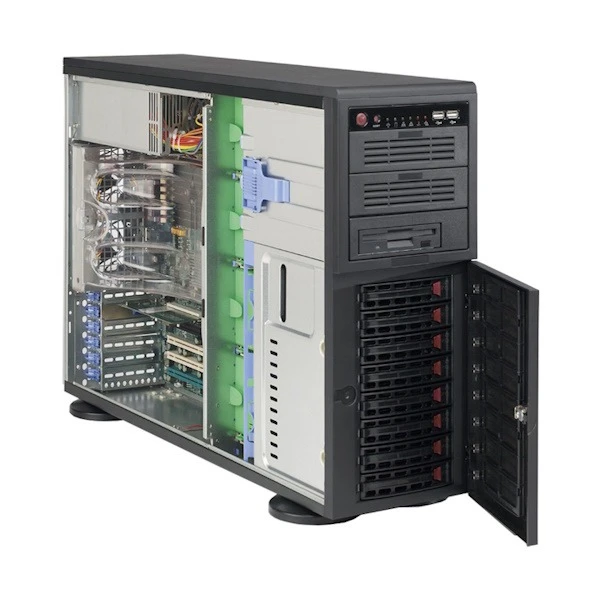

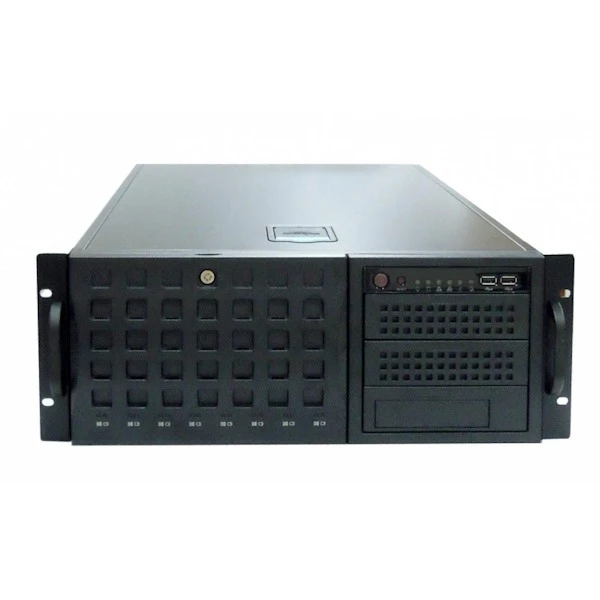

Professional graphics output is handled by an Nvidia Quadro T1000 or RTX A2000, while ten PCI-E 4.0 expansion slots allow integration of additional accelerators, RAID controllers, or specialty boards. The CADStation G16 ships in Tower, Rack 2U, 3U, and 4U form factors with 80 Plus certified power supplies rated from 550 W to 1600 W.
Remote out-of-band management and dual 1 GbE network ports round out the feature set. ARBYTE provides a warranty of up to three years.
