Antiviral Bactericidal Recirculator LE-CCO-43-062-xxxxx-20H
Antiviral Bactericidal Recirculator LE-CCO-43-062-xxxxx-20H
Antiviral Bactericidal Recirculator LE-CCO-43-062-xxxxx-20H
Antiviral Bactericidal Recirculator LE-CCO-43-062-xxxxx-20H
Antiviral Bactericidal Recirculator LE-CCO-43-062-xxxxx-20H
Antiviral Bactericidal Recirculator LE-CCO-43-062-xxxxx-20H
Antiviral Bactericidal Recirculator LE-CCO-43-062-xxxxx-20H
Antiviral Bactericidal Recirculator LE-CCO-43-062-xxxxx-20H

Antiviral Bactericidal Recirculator LE-CCO-43-062-xxxxx-20H — LED-EFFECT LLC

Brand: Antivirus Retail
$150 - $540 USD
MOQ: 10 pieces

Key Features

Power supply voltage: 220 V
Volume flow rate of treated air: SBVVBG

Description

The LE-ССО-43-062 RITEIL ANTIVIRUS is a dual-function commercial device from LED-EFFECT LLC, a Russian manufacturer of professional LED systems with patented industrial designs across its ANTIVIRUS luminaire family. In a single pendant housing measuring 965 × 90 × 167 mm, the unit integrates a full linear LED luminaire with a sealed bactericidal air recirculator.

The LED module delivers 4,000 lm at 5,000 K with a CRI above 80, at an efficacy exceeding 100 lm/W — total system draw is 62 W. The recirculator module houses a 15 W T8 germicidal lamp (G13 base, 26 mm diameter) operating at 254 nm, a wavelength effective at disrupting microbial DNA to neutralize viruses including COVID-19 and ARVI pathogens, as well as bacteria and fungi.

Silent internal fans push up to 50 m³ of room air per hour through the sealed UV chamber; a split-nozzle geometry — intake and exhaust on opposite sides — promotes continuous room-wide air turnover without drafts. The UV lamp sits fully enclosed and invisible to occupants, making the device safe for eyes during uninterrupted operation.

One unit is rated for spaces up to 30 m². It connects directly to a 175–264 V / 50 Hz supply with no additional equipment required, and can be suspended on cables or surface-mounted via adjustable-angle brackets.

UV lamps are sourced from OSRAM, PHILIPS, LEDVANCE, LIGHTTECH, or SOMESINO. LED-EFFECT provides a 3-year warranty on the luminaire and recirculator assembly.

Details & Equipment

Design & Construction

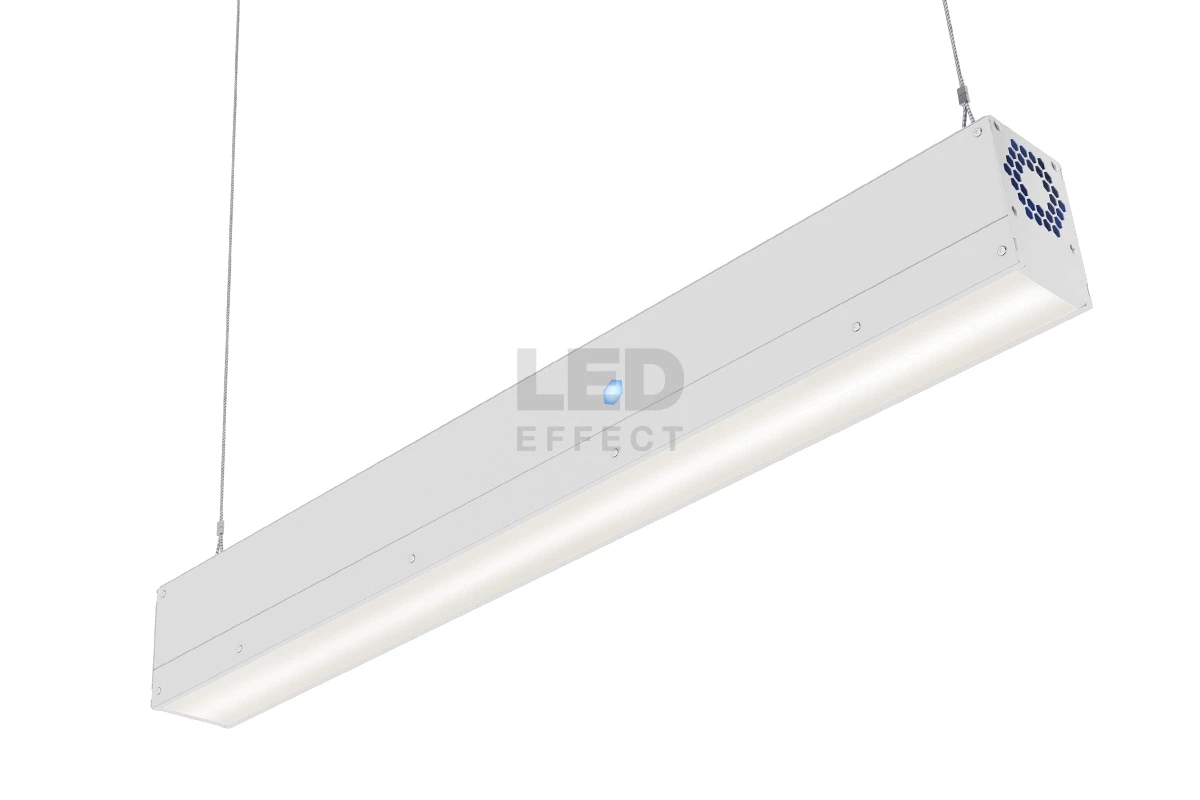

Pendant suspension view
Pendant suspension view
Full-unit pendant configuration showing the 965 mm linear LED diffuser and the honeycomb-grille recirculator module at the near end; stainless-steel cables attach at two points on the top rail.

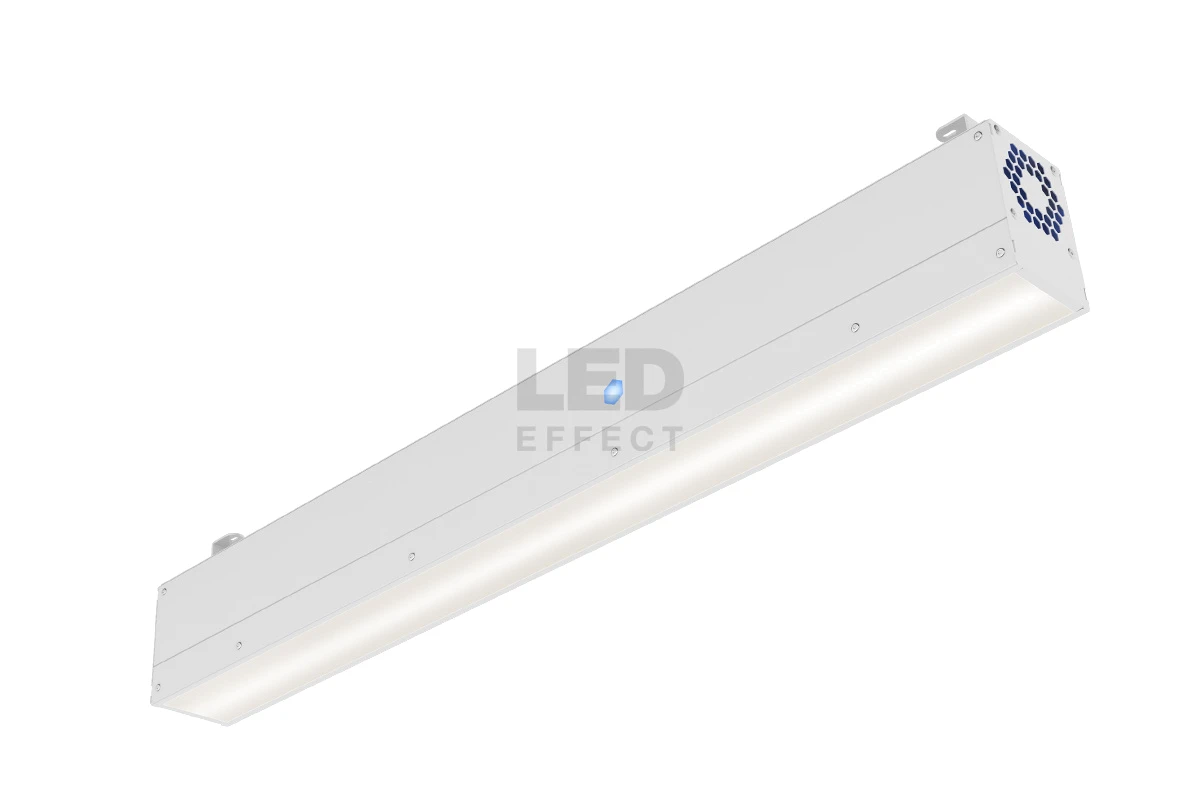

Surface-mount configuration
Surface-mount configuration
The same unit shown in surface/bracket-mount orientation, displaying the translucent textured LED diffuser and the recirculator end section; adjustable-angle brackets are fitted to the top panel.

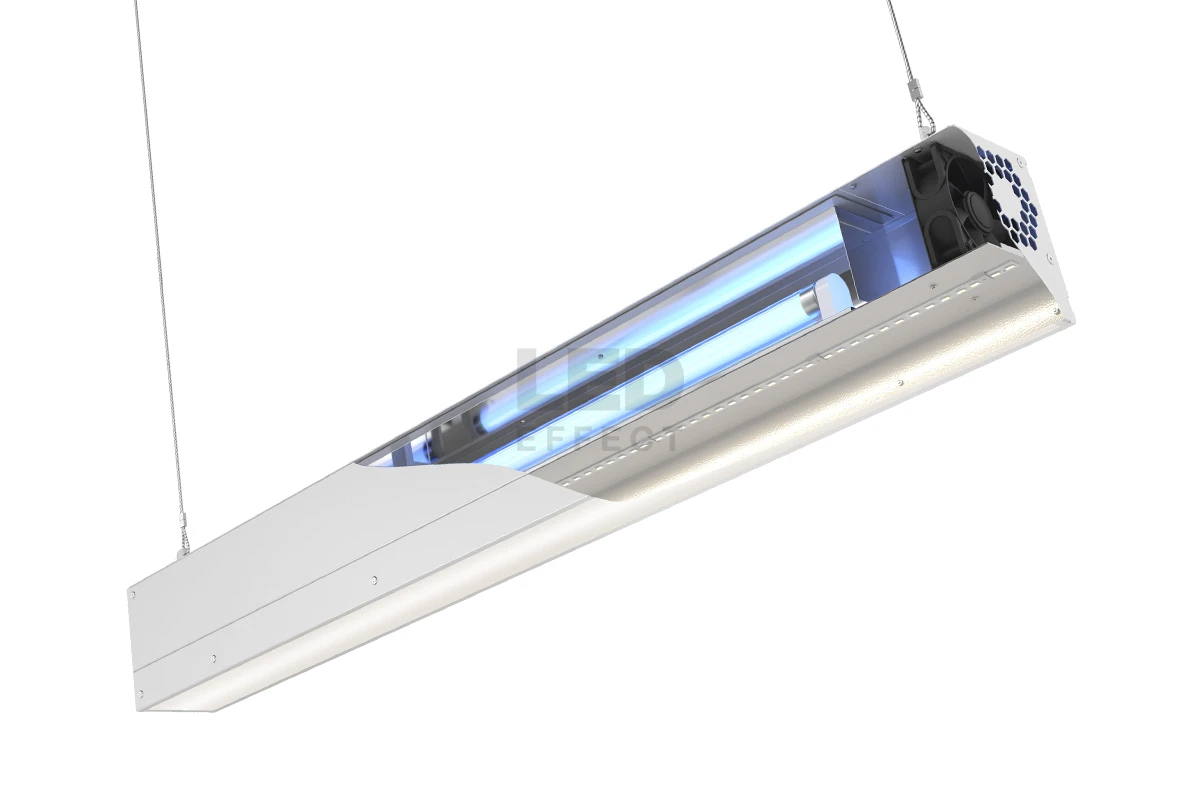

UV disinfection chamber open
UV disinfection chamber open
Cut-away view revealing the sealed bactericidal compartment: the 15 W T8 UV lamp at 254 nm glows blue inside the chamber, flanked by the dual silent fans that circulate 50 m³/h of room air through the module.

Installation & Dimensions

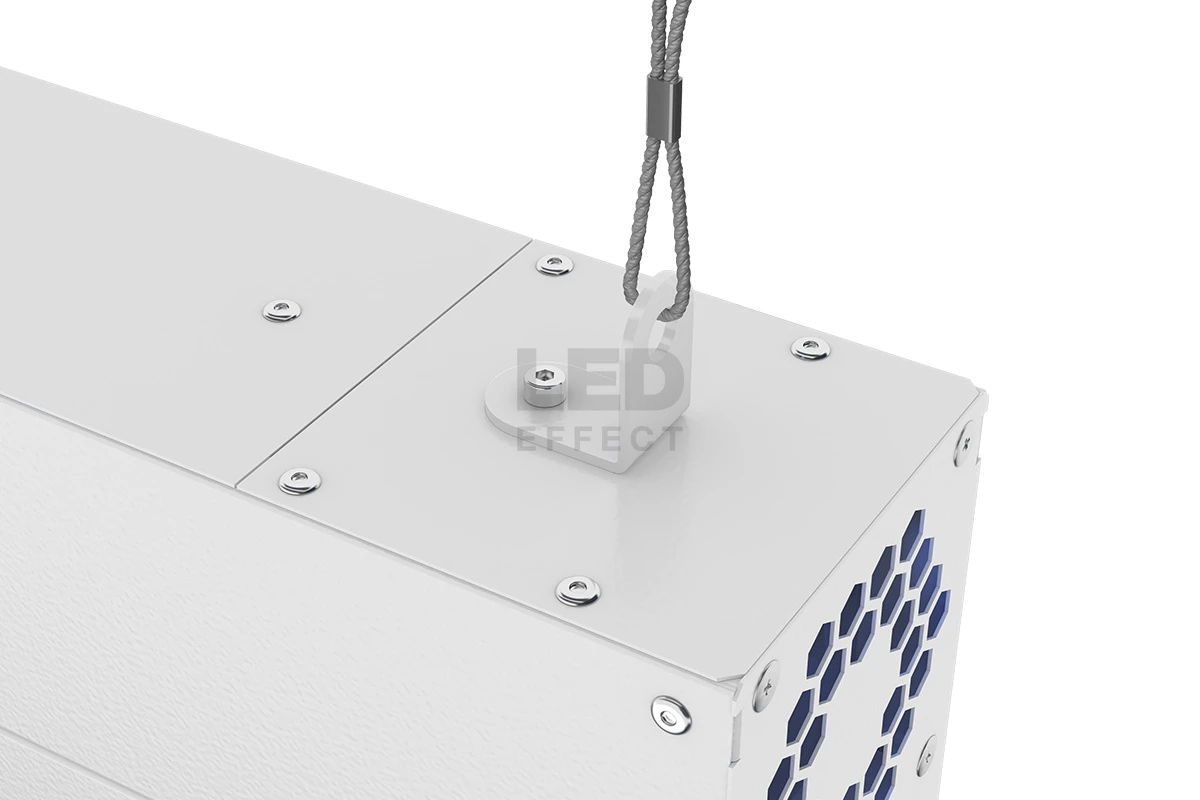

Cable attachment detail
Cable attachment detail
Close-up of the stainless-steel cable suspension point on the top panel; the recirculator's honeycomb air-inlet grille is visible at the end, with the UV-status indicator glowing behind it.

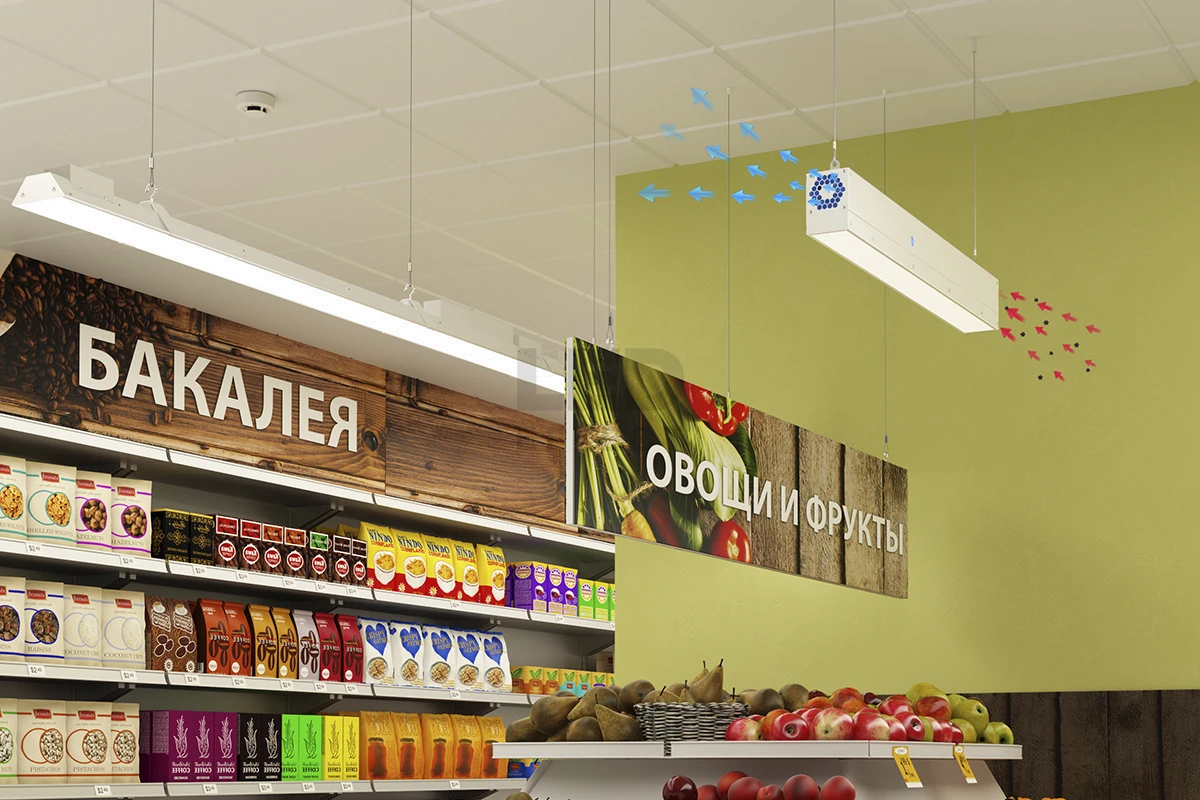

In-service retail installation
In-service retail installation
Installed unit in a live retail environment, simultaneously illuminating grocery aisles and recirculating air through the UV module; airflow direction is indicated by the arrows on the recirculator end.
Dimensional drawing
Dimensional drawing
Manufacturer's engineering drawing: body length 857 mm between mounting bosses, 90 mm wide, 167 mm tall; the end detail (section A, 1:1) shows the round recirculator inlet with fan assembly and cable-bracket fittings.

Features

🔬
Closed-chamber UV disinfection
A 15 W T8 lamp at 254 nm sits inside a fully enclosed, vision-safe compartment; bactericidal power flux reaches 4.9 W, effective against COVID-19, ARVI, and other airborne pathogens.
💡
High-efficacy LED module
The LED section delivers 4,000 lm at 5,000 K (CRI > 80) with an efficacy above 100 lm/W — matching conventional retail lighting output at 62 W total system consumption.
🌬️
Active air circulation — 50 m³/h
Silent fans drive 50 m³ per hour through the UV chamber; opposing intake/exhaust nozzles create optimised room-wide circulation, supporting continuous disinfection of spaces up to 30 m².
🛡️
Ozone-free operation
UV lamps are certified ozone-free, eliminating the respiratory hazard associated with conventional open-UV systems and meeting indoor air quality requirements for occupied premises.
🔧
Flexible mounting — cable or surface
Ships ready to energise at 175–264 V AC / 50 Hz; supports pendant suspension on cables and surface bracket mounting with adjustable tilt angle; net weight 4 kg, housing RAL9003 white.
Patented design, 3-year warranty
LED-EFFECT holds registered industrial-design patents on the ANTIVIRUS RITEIL series; the unit carries Russia-made certification and a 3-year manufacturer warranty on the luminaire and recirculator components.

Buyer Benefits

Applications

Retail grocery stores, supermarkets, and hypermarkets Pharmacies and drug store counters Hospital wards, outpatient clinics, and treatment rooms Administrative offices and open-plan workspaces Schools, universities, and educational facilities Public service counters and waiting areas Fitness centers and sports halls Hospitality venues and food-service environments
