Name: Air-Cooled Condenser Refrigeration Equipment ACTIVECOLD AC-COLD Mini A
Brand: ACTIVECOLD
SKU: 555797
Availability: InStock

Brand: ACTIVECOLD

$1,500 - $18,000 USD

MOQ: 1 pieces

Key Features

Compressor capacity: 1.2...16.8 kW

Cooling capacity: 7.2...96 kW

Pump capacity: 0.4...2.6 kW

connection: 19.05...50.8

Supplier Information

ORBITA SERVICE LLC

🇷🇺 📦 🏭 🛡️

View All Products (23)

Quick Inquiry

Description

The ACTIVECOLD AC-COLD Mini A is a compact, air-cooled industrial chiller engineered and manufactured in Russia by CLEVER COLD (Orbita Service LLC), with a production facility in Dedovsk, Moscow region. Designed to deliver chilled process water for demanding industrial environments, the series spans ten standard models covering cooling capacities from 4.8 kW to 63.3 kW at rated duty conditions (water supply 7 °C, ambient 35 °C) and from 7.2 kW to 96 kW under nominal conditions (15 °C / 25 °C).

Each unit is a fully self-contained block assembled on a stainless steel frame and includes a hermetic scroll compressor, axial condenser fans, thermostatic expansion valve, and a stainless steel hydromodule. Scroll compressor technology minimizes energy consumption and reduces vibration, keeping noise levels within 63–71 dB depending on the model.

Standard anti-vibration mounts on the base frame, combined with optional sound-insulating panels, allow installation directly on the shop floor without disrupting adjacent operations. The chiller supports both R407c and R290 (propane), a natural refrigerant with low global-warming potential.

Hydraulic connections range from ¾" (Mini A06) to 2" (Mini A100), and pump power spans 0.4–2.6 kW. Multiple units can be coupled in cascade to scale capacity on a minimal footprint, and the series integrates seamlessly with FREECOLD dry coolers for free-cooling hybrid systems that cut operating energy costs.

Details & Equipment

Product Overview

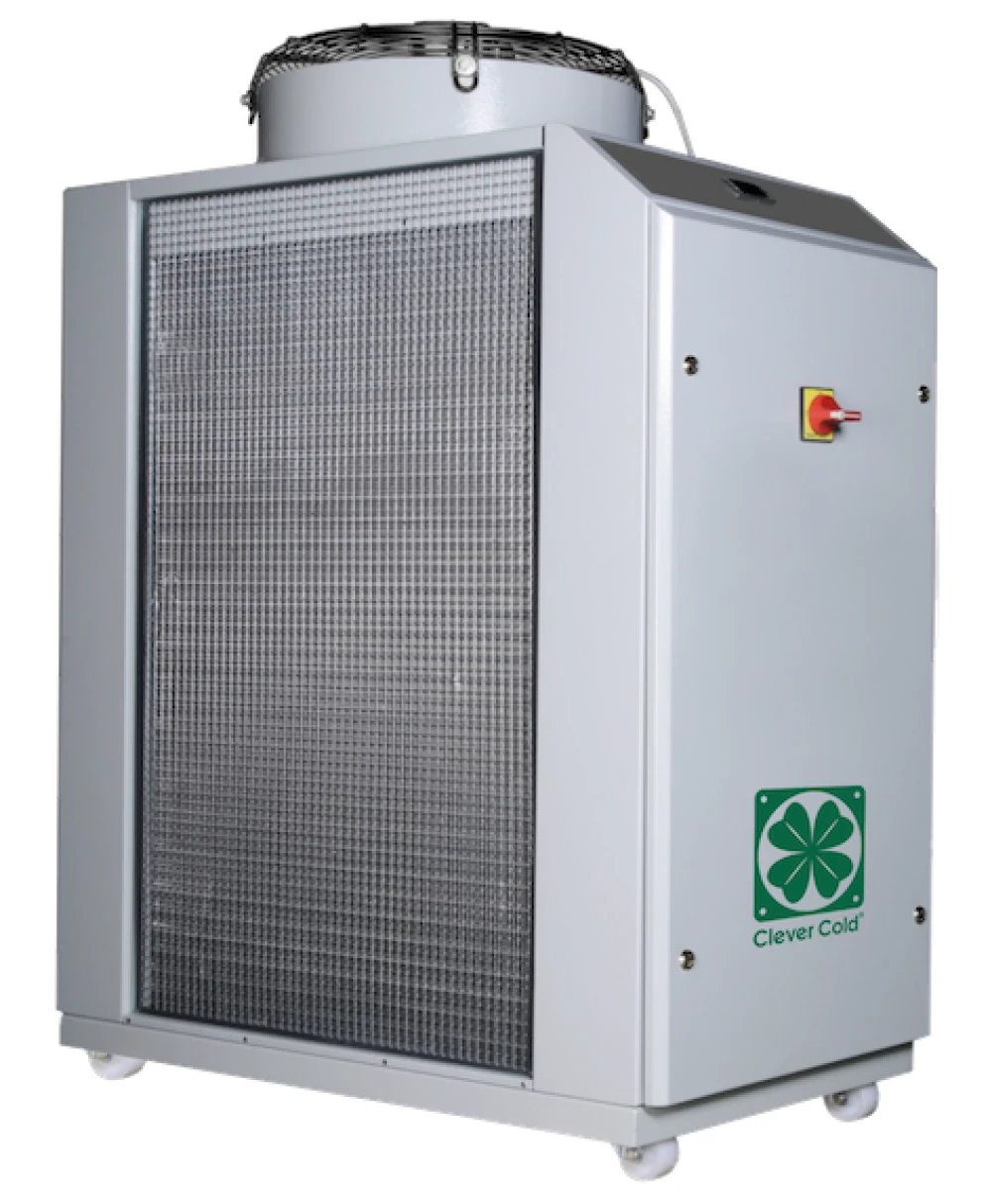

AC-COLD Mini A Unit

The AC-COLD Mini A chiller in its compact stainless steel housing. The series covers models from 7.2 kW to 96 kW cooling capacity and is designed as a fully self-contained block ready for immediate process connection.

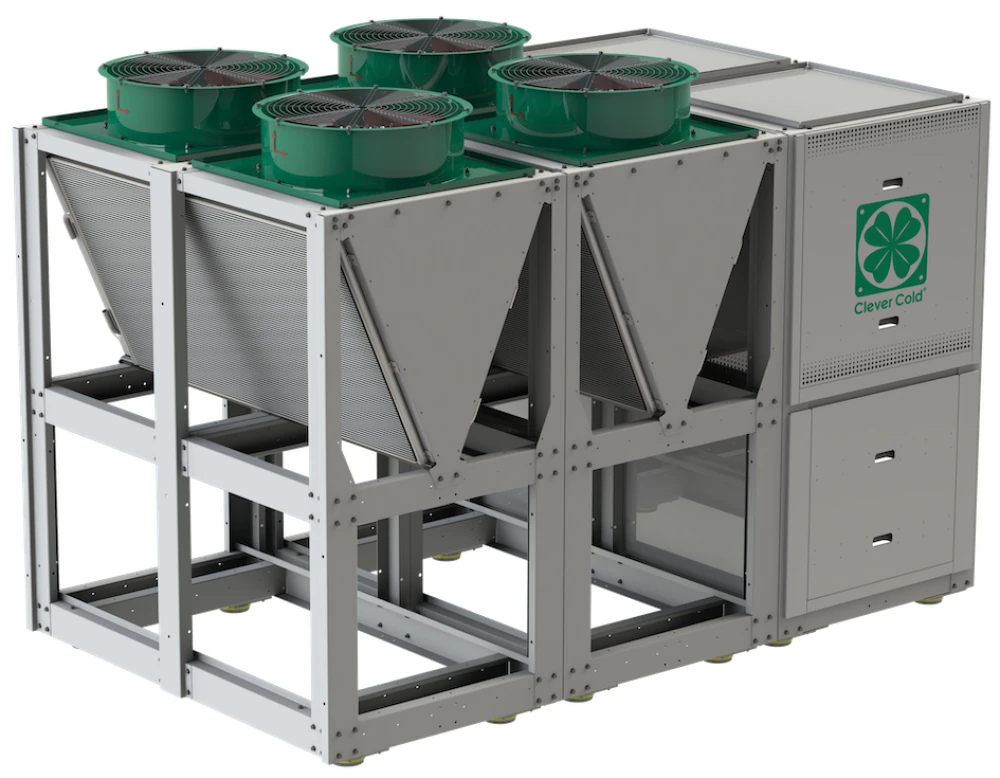

AC-COLD A Series Installation

An AC-COLD A series chiller installed at an industrial site. The modular design allows single units or cascaded groupings to be deployed in both indoor and outdoor settings with minimal civil works.

Dimensional Drawing

Dimensional and connection drawing for the AC-COLD A series, illustrating the compact footprint and standard hydraulic connection points used across all Mini A models.

Features

🌀

Hermetic Scroll Compressor

Each unit uses a hermetic scroll compressor that lowers energy consumption compared to reciprocating designs and significantly reduces vibration, keeping operating noise at 63–71 dB across the range.

❄️

Wide Capacity Range

Ten standard models span cooling capacities from 4.8 kW (Mini A06 at 7 °C/35 °C) to 63.3 kW (Mini A100), with compressor power from 1.2 to 16.8 kW.

🌿

Natural Refrigerant Option

The series is available with R290 propane, a zero-ODP natural refrigerant with negligible global-warming potential, offering a cost-effective and eco-conscious alternative to HFC refrigerants.

🔩

Stainless Steel Frame & Hydromodule

The structural frame and integrated hydromodule are both fabricated from stainless steel, ensuring corrosion resistance in humid or chemically aggressive production environments.

🏭

Indoor Installation Ready

Anti-vibration mounts are fitted as standard, and optional acoustic panels allow the chiller to be sited inside production rooms where space and noise constraints would otherwise prevent installation.

📐

Cascade Scalability

Multiple Mini A units can be stacked in cascade configuration, letting operators add cooling capacity incrementally on a minimal floor footprint as production demands grow.

Buyer Benefits

Fully self-contained unit with integrated stainless steel hydromodule — no external pump or buffer tank required for basic process circuits
Compact housing (smallest models: 540 × 912 × 1325 mm) fits tight equipment rooms and can be installed alongside process machinery
Cascade architecture lets buyers start with one unit and expand capacity without discarding existing hardware
Choice of R407c or R290 (propane) refrigerant provides flexibility to meet local environmental regulations at low refrigerant cost
Noise levels of 63–68 dB on smaller models allow deployment inside production buildings without additional acoustic shielding
Designed for continuous 24/7 industrial-duty operation with reliable scroll compressor technology
Manufactured in Russia with direct support from the CLEVER COLD factory team, including design, installation, and service

Applications

Plastics processing — injection molding, blow molding, and extrusion line cooling CNC machining and metalworking — cutting fluid temperature stabilization Chemical and petrochemical plant process cooling Food and beverage production — ingredient and equipment cooling Pharmaceutical manufacturing — precise temperature control for process reactors Printing and packaging equipment heat removal Electronics and electrical equipment manufacturing Laboratory and R&D test bench thermal management
