Name: Agricultural Subsoiler "AGRIRICH" for Heavy Tractors
Brand: AGRIRICH
SKU: 136011
Availability: InStock

Brand: AGRIRICH

$5,400 - $18,000 USD

MOQ: 1 pieces

Key Features

Working width: 2.8 m

Depth of treatment: 35...60 cm

Number of working bodies: 4 pcs

Tractor power: 160...200 hp

Supplier Information

AGRISTO LLC

🇷🇺 📦 🏭 🛡️

View All Products (5)

Quick Inquiry

Description

The AGRIRICH AR-4 is a mounted deep subsoiler produced by AGRISTO LLC, a Stavropol-based agricultural machinery manufacturer specialising in tillage, seeding, and crop-protection equipment for demanding Russian and CIS farming conditions. Designed specifically for tractors in the 160–200 hp range, the AR-4 delivers reliable deep loosening from 35 to 60 cm — well below the compaction layers that restrict root development and moisture infiltration on heavy and very heavy soils.

The machine carries four parabolic shanks spaced 70 cm apart on a robust double-row American-type frame fabricated from low-alloy steel 09G2S. The main cross-beam uses 160×120×8 mm hollow section, while the longitudinal members are 140×60×7 mm with closed gusset-plate corner reinforcements — a construction engineered to withstand the extreme draft loads generated at depth.

Unlike European paraflow-type shanks that deflect soil sideways, the American-profile parabolic shanks cut through the profile without lateral displacement and require noticeably less tractive effort. Each shank is fitted with a shear-bolt overload protection as standard; a spring-type or hydraulic protection system is optionally available.

Working depth is set through the transport wheels, making depth control independent of tractor hitch position and enabling work on wet or uneven ground. Optional accessories include wavy coulter discs (Ø 510 mm) ahead of each shank, a roller per shank, or a three-row spring harrow for seedbed finishing.

The AR-4 is classified as a loosener under Russian Government Decree No. 616.

Details & Equipment

Shank System

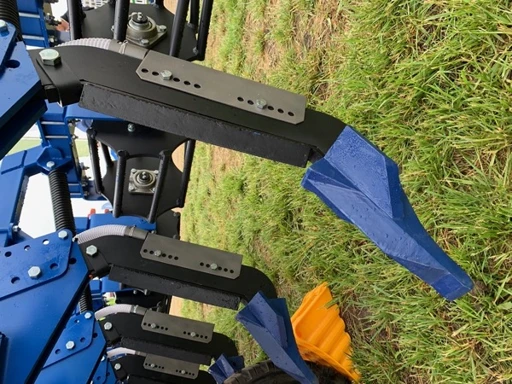

High-Strength Parabolic Shank

Italian-made high-strength parabolic shank with 60° attack angle, 100 cm height, and 30×130 mm cross-section for working depths up to 60 cm. Three interchangeable deflector widths — 30 mm (slit loosening), 60 mm (medium disturbance), and 60 mm with lateral wings (maximum disturbance) — allow the tillage intensity to be matched to soil conditions.

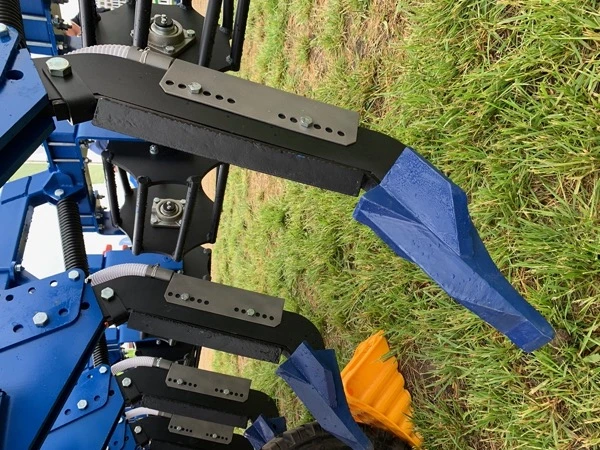

Block-Type Shank Mounting

The shank is secured in a special 'block' clamp with a wide pivot axis that eliminates lateral shank movement during work and prevents clamp deformation when striking a stone. Two shear bolts provide the primary overload protection, and the assembly is fully compatible with optional spring or hydraulic protection upgrades.

Machine Overview

AGRIRICH AR-4 Mounted Subsoiler

The AGRIRICH AR-4 mounted on a tractor's rear three-point linkage, showing the double-row 09G2S steel frame with four parabolic shanks at 70 cm spacing and a 2.8 m total working width. Transport width is 2.2 m and machine weight is 2,400 kg.

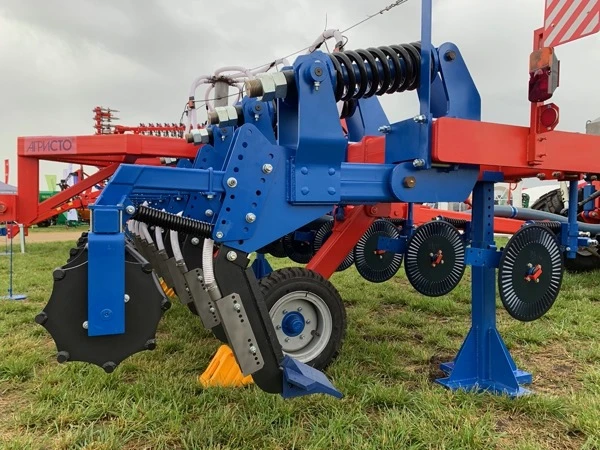

Optional Roller per Shank

The AGRIRICH fitted with an optional individual roller immediately behind each shank. Rollers crumble large clods right after deep loosening and consolidate the loosened layer, making a single-pass combined loosening-and-consolidation operation possible.

Features

🔩

American Parabolic Shanks

Four parabolic high-strength shanks (attack angle 60°, height 100 cm, cross-section 30×130 mm) penetrate the soil to 35–60 cm without causing lateral displacement, requiring less draft force than European paraflow-type shanks on heavy and very heavy soils.

🏗️

Heavy-Duty 09G2S Frame

The double-row American-style frame is welded from low-alloy 09G2S steel using 160×120×8 mm cross-section profile tube with closed gusset-plate reinforcements at all corners, ensuring long service life under extreme tillage loads.

🛡️

Dual Overload Protection

Standard shear-bolt protection guards each shank against rock strikes; optional spring protection (1,500 kg trigger force) or hydraulic protection (adjustable 80–200 bar via hydropneumatic accumulator) is available for fields with heavy stone content.

📏

Wheel-Referenced Depth Control

Working depth of 35–60 cm is regulated via the transport wheels rather than the tractor hitch, delivering consistent tillage depth on over-moistened or undulating terrain and reducing sensitivity to tractor pitch.

🌾

Coulter Disc Option

Wavy cutting coulter discs (Ø 510 mm, three wave patterns available) can be installed in front of each shank to slice through dense crop residues and prevent shank plugging in high-biomass fields.

🔄

Strip-Till & Mole-Drain Versatility

With the optional Strip-Till kit — row cleaners, coulter disc, furrow-forming discs, and packer roller — the AR-4 converts to precision strip-till at 25–45 cm depth; shanks can also be swapped for mole-drainer bodies using the same mounting dimensions.

Buyer Benefits

Reaches 35–60 cm working depth to shatter hardpan and subsoil compaction layers beyond the reach of conventional cultivators
Parabolic American-profile shanks deliver lower draft resistance than European paraflow shanks, cutting fuel consumption per hectare
Depth control via transport wheels ensures uniform loosening depth even on wet or uneven fields without relying on tractor hydraulic response
Shear-bolt standard protection plus optional spring or hydraulic overload systems minimise downtime from rock strikes
Optional roller or three-row spring harrow attachment enables seedbed preparation in a single combined pass
Available through Rosagrolizing state leasing programme, reducing the upfront capital requirement
Classified under Russian Government Decree No. 616 as a loosener, qualifying for state subsidy programmes for agricultural machinery

Applications

Deep autumn tillage on compacted clay and loam soils to break the plough sole and subsoil pans before winter or spring crops Moisture-conservation deep loosening to improve rainwater infiltration and reduce surface runoff on dryland farming areas Soil drainage improvement on fields with poor permeability, reducing waterlogging and anaerobic root zones Subsoil fertiliser incorporation at 25–45 cm depth when paired with the optional pneumatic fertiliser distributor Strip-Till seedbed preparation for row crops when fitted with the optional Strip-Till working unit kit Deep loosening on heavily crop-residue-covered fields using optional coulter discs to prevent shank plugging Mole drainage installation by replacing subsoil shanks with mole-drainer bodies on the same frame Heavy-soil reclamation tillage ahead of irrigation system installation or perennial crop establishment
