Universal Single-column Testing Machine REM-5

Universal Single-column Testing Machine REM-5 — METROTEST LLC

Brand: REM

$4,200 - $15,000 USD

MOQ: 1 pieces

Key Features

Highest ultimate load, kN: 5

Maximum travel speed of the movable crosshead, mm/min: 500 (1000)*

Tolerance limit of moving crosshead movement without load, in the range from 0.0001 to 10 mm: ±0.001 mm

Tolerance limit of moving crosshead movement without load, in the range from 10 to 3000 mm: ±0,5 %

Supplier Information

METROTEST LLC

🇷🇺 📦 🏭 🛡️

View All Products (49)

Quick Inquiry

Description

The REM-5 is a universal single-column electromechanical testing machine built by METROTEST LLC, a Russian manufacturer of materials-testing equipment including universal testing machines, hardness testers, impact pendulums and testing presses. Designed and produced to GOST 28840-90, the machine performs tension, compression and bending tests on specimens of rubber, plastics and polymers, wood, textiles, nonwovens, metal sheet and foil, as well as finished articles such as fasteners, tubes, cords, electrical components and medical products.

The single-column REM family covers test loads up to 5 kN, with the REM-5 occupying the top of that range: its load measurement range is 0.2 to 5 kN with a relative load-measurement error within ±1.0%. A servo-driven loading system positions the moving crosshead at speeds from 0.05 to 500 mm/min and holds the programmed test speed within ±5%, while crosshead displacement is measured to ±50 µm over the 0.05–10 mm range and ±0.5% beyond.

REM machines are registered in the State Register of Measuring Instruments of Russia (No. 76470-19), Kazakhstan and Belarus, and carry a Russian Ministry of Industry and Trade conclusion (No.

123526/10 of 17.11.2023) confirming domestic manufacture. Each machine ships with a force module, control pendant, strain-gauge load cell, technical documentation, primary verification certificate and a Quality Mark certificate for testing equipment.

Details & Equipment

Machine Overview

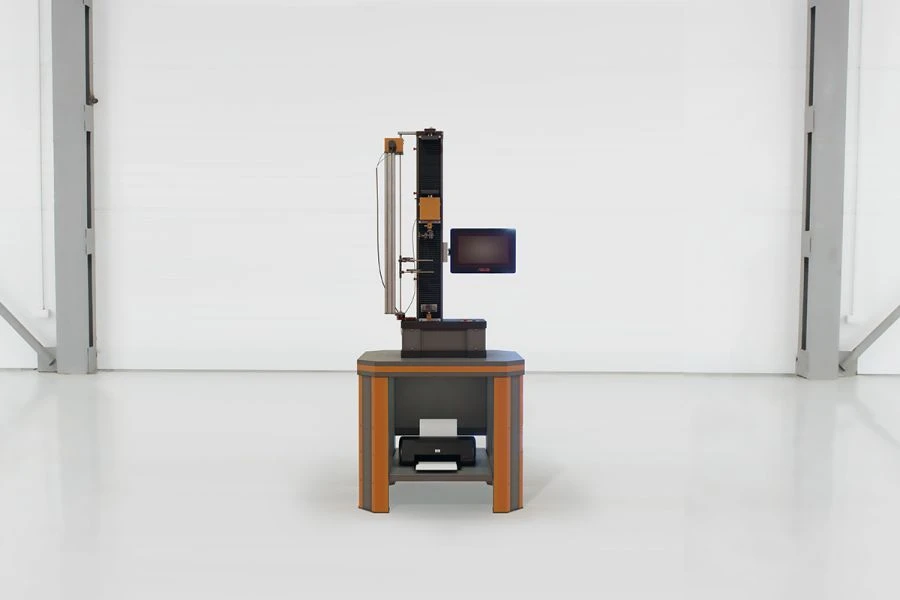

REM-5 test station

Single-column REM-5 frame with the operator workstation: in the automated REM-A configuration a PC with MTest-REM-2.15 software and a printer control the test and output protocols.

Single-column frame

The rigid single-column design carries the servo-driven moving crosshead, covering test loads up to 5 kN within a compact laboratory footprint.

Test Zone and Fixtures

Specimen grips

Mechanical grips hold flat and shaped specimens; the grip type is selected to the customer's technical specification.

Bend test fixture

An optional bending fixture mounted in the test zone lets the same machine perform flexural tests alongside tension and compression.

Compression platen

Circular compression platen on the moving crosshead; crosshead travel is read against the graduated scale on the column.

Construction Details

Connection panel

Rear panel with mains input and dedicated connectors for the strain-gauge load cells and the measurement-and-control system.

Protected drive column

Bellows guard protects the ball screw of the loading drive, while the column scale gives a direct visual reference of crosshead position.

Features

⚖️

5 kN capacity with high accuracy

Load measurement range from 0.2 to 5 kN with relative load-measurement error within ±1.0% of the measured value, using a precision strain-gauge load cell.

🎯

Precise crosshead control

Servo-driven loading system moves the crosshead at 0.05–500 mm/min and maintains the set loading speed within ±5%. Displacement error is only ±50 µm in the 0.05–10 mm range and ±0.5% above 10 mm.

🖥️

Two control options

Base machines use a control pendant with display and keypad showing the live load diagram; the REM-A version adds PC control with the manufacturer's MTest-REM-2.15 software for automated test programs, data processing and printed test reports.

🔩

Versatile test fixtures

Tension, compression and bend testing in one frame; optional special grips, bending fixtures, non-standard compression tables and temperature test systems extend the machine's capabilities.

📜

Certified measuring instrument

Registered in the State Register of Measuring Instruments of Russia No. 76470-19, of Kazakhstan No. KZ.02.03.06422-2015/57528-14 and of Belarus No. РБ 03 03 5681 15.

🛡️

Protected and quiet operation

Crosshead travel limiters protect the frame and load cell from overload damage; noise level does not exceed 75 dB. Compliance with GOST 28840 is confirmed by primary verification on delivery.

Buyer Benefits

Compact single-column frame suited to laboratories testing materials with breaking loads up to 5 kN
±1.0% load accuracy and ±50 µm crosshead positioning accuracy ensure reliable, repeatable results
One machine covers tension, compression and bend tests, reducing equipment costs
Delivered verified and with a Quality Mark certificate, ready for accredited laboratory use
Optional MTest-REM-2.15 software automates testing, calculates material characteristics and prints protocols; customer-specified GOST methods can be added
Registration in Russia, Kazakhstan and Belarus simplifies metrological approval across the EAEU
Manufacturer-confirmed Russian production (Minpromtorg conclusion No. 123526/10) supports import-substitution procurement

Applications

Tensile, compression and bend testing of rubber, plastics and polymer materials Quality control of textiles, nonwovens and waterproof materials Testing of metal sheet, foil and small metallic specimens Strength testing of wood and wood-based products Verification of finished components: fasteners, tubes, cords, micro-device parts and electrical components Mechanical testing of medical devices and products Incoming inspection and certification testing in factory and independent laboratories Materials research and development to GOST 28840 test methods
