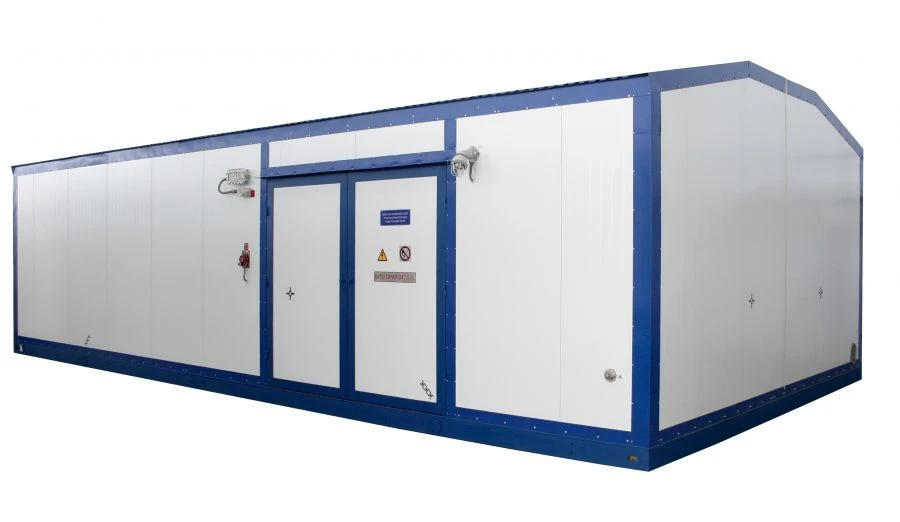

The 2BKTPA-SGA-1600/10/0.4-DC1-UHL1 is a block-complete transformer substation designed to step 10 kV distribution voltage down to 0.4 kV for industrial sites, infrastructure facilities and large commercial consumers. The unit is configured with two power transformers rated at 1600 kVA each, giving the substation a redundant two-transformer architecture that supports continued supply if one transformer section is taken out for maintenance.
High-voltage busbars are rated at 630 A. As a block-complete (packaged) substation, it arrives as factory-assembled modules with switchgear, transformers and low-voltage distribution already integrated and tested, which sharply reduces on-site construction time compared with building a masonry substation: the buyer prepares a foundation, sets the blocks, and connects incoming and outgoing cables.
The UHL1 climatic designation indicates an outdoor design intended for temperate and cold climate zones. This class of substation is typically procured by industrial plants, mining and processing sites, utility distribution companies and developers of large logistics or residential projects.
Minimum order is one substation, and each unit is configured to the buyer's single-line diagram, so technical questionnaires are exchanged before manufacture.
