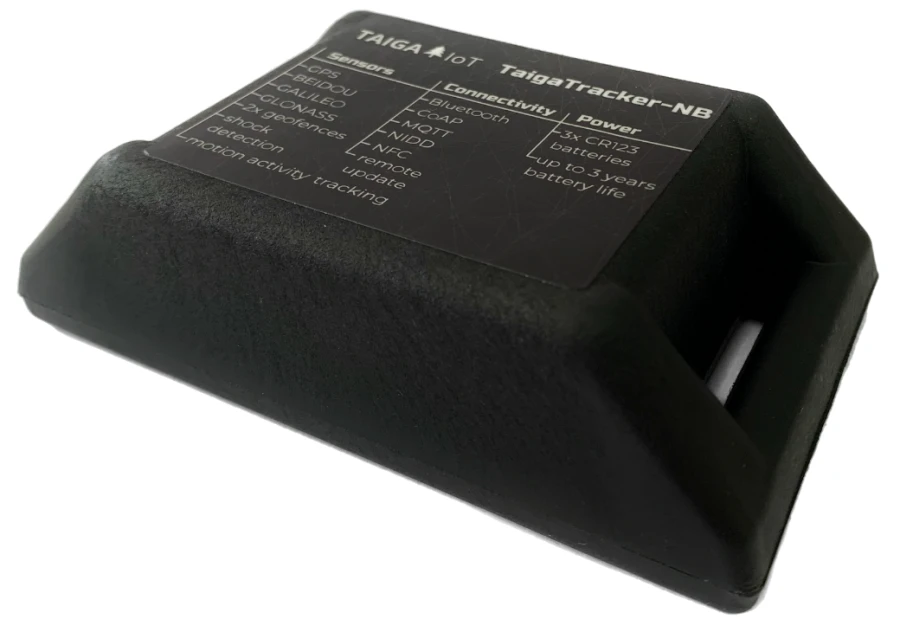

Taiga Tracker-NB mobile object monitoring tracker

Data Collection Devices

Manufacturer: LIV LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Taiga Tracker-Nb is designed to track the movement of moving objects both in the open with a navigation receiver and indoors with a Bluetooth iBeacon tag scanner. The energy-efficient NB-IoT data transmission technology provides up to 3 years of autonomous operation. The device counts motion activity, detects shocks and is housed in an impact-resistant, sealed case that works even in the harshest environments.B

Specifications

Color

Black

Material

Glass-filled polyamide

Degree of enclosure protection

IP-65

Dimensions

125x75x37 mm

Weight

300 year

Operating temperature

-40...85 °C

Humidity

0...100 %

Power supply voltage

3 V

Battery model

LiMnO2

Battery type

3xCR123 (LiMnO2)

Battery life

Up to 3 years depending on settings

Battery capacity

4500 mAh

Data transmission standard

LTE cat. NB2

Operating frequency range

B1, B3, B5, B8, B20, B28

Maximum transmitter power

23 dBm

Sensitivity

-129 dBm

Antenna type

Built-in ceramic

Supported GNSS navigation satellite systems

GLONASS/GPS

Number of channels

Sensitivity

-167 dBm

Cold start time

Hot start time

Function of automatic synchronization of real-time clock by GNSS signals

Armoured glass

Geolocation method

Bluetooth low energy

Scanning period/time

Customizable

Bluetooth beacon format

IBeacon

Bluetooth beacon filtering

Armoured glass

Motor activity control

Yes, with adjustable interval and sensitivity

Motion detection at start/stop

Yes, with configurable timeout

Impact detection

Yes, with adjustable sensitivity

Rotation detection

Yes, with adjustable angle threshold

Temperature measurement

Yes, with customisable interval

Configuration interface

Using the Android mobile application

Identification method

Built-in NFC tag with device information and LoRaWAN activation keys

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
