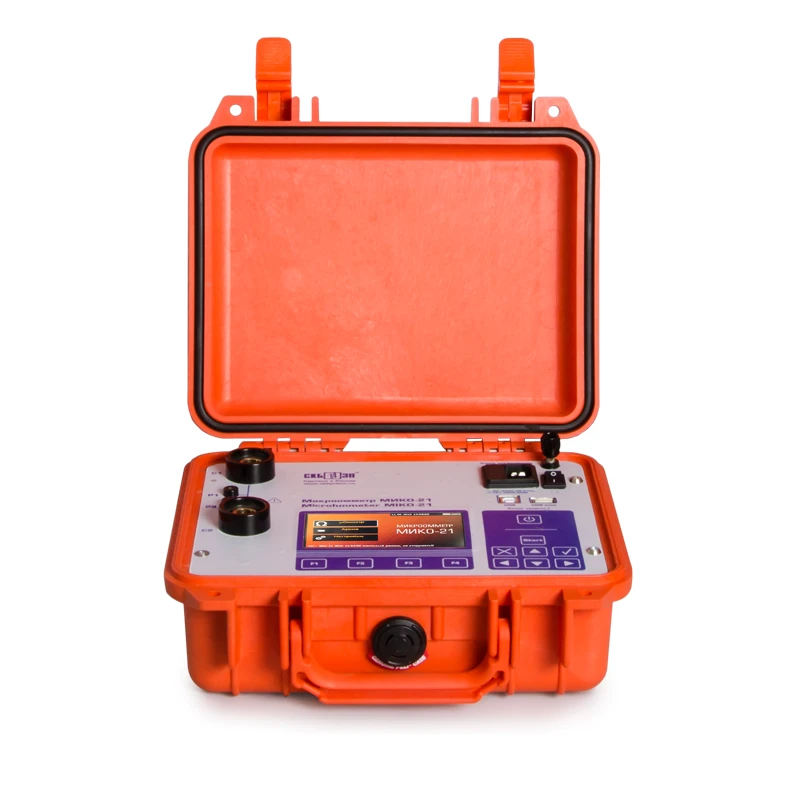

High-Precision Micro-Ohmmeter MIKO-21 for Accurate Low Resistance Measurements

Digital Ohmmeters

Manufacturer: SKB EP LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

High-precision micro-ohmmeter is designed to measure transient resistance of electrical equipment circuits in the range of 0,1 µOhm ÷ 2 Ohm with the lowest error of ±0,05% at rated current up to 200A.

MIKO-21 has a special algorithm for measuring transient resistances of high-voltage circuit breakers with built-in CTs.

In the MIKO-21 micro-ohmmeter the user can set the current strength in several ways up to 200A.

The instrument has four ways to start the resistance measurement process, where the User can choose the most convenient and suitable operation option.

The built-in archive of passport values of electrical resistances allows the device to automatically detect and signal the measurement result exceeding the permissible limits.

The device can be integrated into measurement systems under PC control of diagnostic laboratories and enterprises - manufacturers of electrical equipment..

Specifications

Resistance measurement range

0,1 ?? ÷ 2 ? ohm

Measuring current

1 ÷ 200 ? A

Accuracy

± 0,05% %

Number of digits in the measurement result output

5 pcs

Power supply (built-in battery)

Lithium-ion

Battery charging time

Continuous battery life

Built-in memory

Up to 2,000 measurements (64 Mb)

PC communication

USB and USB host

Instrument weight

3.3kg kg

Environmental protection in working position

IP 40

Environmental protection in transport position

IP 67

Temperature range when operating the device

-20 °C to +50 °C °C

Inspection period

3 year

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
