Name: Automatic Dew Point Analyzer Hygrovision-BL
Brand: Hygrovision
SKU: 178348
Availability: InStock

Brand: Hygrovision

$9,000 - $30,000 USD

MOQ: 1 pieces

Key Features

Test gas pressure: 0.01...16 MPa

Gas flow rate, l/min: 0.5...5

Continuous operation time: 4

power: 15 W

Supplier Information

Vimpel LLC

🇷🇺 📦 🏭 🛡️

View All Products (10)

Quick Inquiry

Description

The HYGROVISION-BL is an automatic condensation dew-point analyzer manufactured by NPO Vympel LLC, a Russian instrument-engineering company specializing in moisture measurement for the gas and oil industries. The device uniquely combines an automatic inline flow analyzer and a manual visual chilled-mirror hygrometer in a single portable unit — a capability that Vympel claims no other manufacturer in its class has achieved.

The instrument measures both water and hydrocarbon dew points by exploiting the Brewster-angle total refraction effect on a cooled dielectric mirror, coupled with a patented dual-channel optical observation system featuring 40× microscope magnification. Measurement accuracy reaches ±0.25 °C in Class A configuration across a dew point range from −60 °C to ambient.

The unit operates at gas pressures up to 23 MPa, accepts gas flows of 0.5–5 dm³/min, and offers IP67 environmental protection suitable for outdoor or hazardous-area installation. Autonomous operation from an internal rechargeable battery (minimum 4 hours) ensures continuity during power failures.

Data are stored for up to 5 years and can be transmitted via ModBus/RTU or IrDA. HYGROVISION-BL holds Russian State Metrological Approval, ATEX and TR TS 012/2011 explosion-safety certification, and TR TS 020/2011 EMC certification.

It was selected as the international comparison reference standard for national metrological institutes within the COOMET organization.

Details & Equipment

Product Views

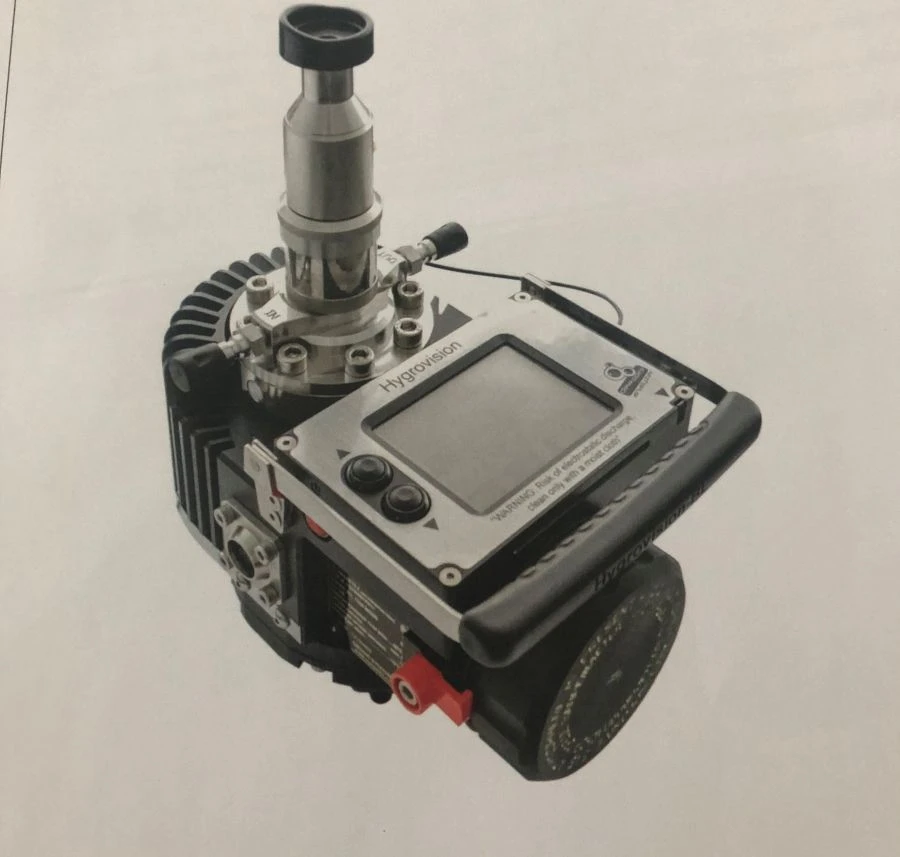

HYGROVISION-BL Analyzer

The HYGROVISION-BL compact portable dew-point analyzer features a rugged IP67 enclosure with dimensions 165×204×257 mm and weighs 7.5 kg without accessories.

Touchscreen Interface

The built-in touchscreen panel displays the last 12 dew-point readings and provides intuitive switching between automatic and manual measurement modes.

Optical Measurement System

The patented dual-channel optical system uses a vertically polarized laser at the Brewster angle to detect condensate formation on the chilled dielectric mirror with sensitivity to films as thin as 5–10 nm.

Field Configuration

Gas Inlet Assembly

Gas is connected via a Dk-Lok fitting for 6 mm OD tubing; a filter for glycol and heavy hydrocarbon removal is included in the standard delivery set.

Microscope Attachment

The 40× microscope (КРАУ3.821.003) attaches to the observation port, enabling visual confirmation of condensation type — water droplets versus hydrocarbon films — during manual measurement.

Transport Case

The analyzer ships in a purpose-made transport case (ВМПЛ4.161.012 or ВМПЛ4.161.003 depending on configuration) along with the pressure control system, gas inlet system, cables, and charging unit.

Features

🔬

40× Microscope Visualization

A patented dual-channel optical system with built-in 40× magnification microscope lets operators visually observe condensation on the chilled mirror in real time, distinguishing water droplets from hydrocarbon films.

⚡

Autonomous Battery Operation

The built-in rechargeable battery (4 A·h) provides at least 4 hours of continuous operation and switches on automatically when external power is cut, ensuring uninterrupted measurement in the field.

🎯

Class A Accuracy ±0.25 °C

In its highest accuracy grade (Class A), the analyzer measures dew point with absolute error limits of ±0.25 °C, making it suitable for metrological comparisons and arbitration measurements.

💾

5-Year Data Storage

All measurement results — both automatic and manual — are stored in non-volatile memory for up to 5 years; the last 12 readings are displayed directly on the built-in touchscreen.

🔒

IP67 & ATEX Certified

The housing meets IP67 ingress protection and carries ATEX and TR TS 012/2011 certification for use in explosive gas atmospheres, enabling deployment on live gas pipelines and in hazardous zones.

📡

ModBus/RTU & IrDA Communication

Measurement data can be exported via standard ModBus/RTU protocol over a wired interface or wirelessly through an IrDA infrared port, simplifying integration with SCADA systems.

Buyer Benefits

Only portable chilled-mirror hygrometer combining automatic inline and manual visual measurement modes in one instrument
Dual operating pressure versions: up to 16 MPa or up to 23 MPa, covering the full range of field gas-sampling conditions
Automatic photoelectric mirror scanning reduces measurement time in manual mode and continuously monitors mirror contamination
Battery automatically takes over when external power fails — critical for uninterrupted monitoring on gas pipelines
Selected as the inter-laboratory comparison reference standard by COOMET metrology institutes, validating its metrological traceability
Touch display with intuitive switching between automatic flow analyzer and visual comparator modes eliminates the need for two separate instruments
Certified for use in explosive atmospheres (ATEX, TR TS 012/2011) and validated in Russia, Azerbaijan, and the EEU customs union

Applications

Custody-transfer and quality control measurement of natural gas moisture content on pipelines and compressor stations Verification and arbitration control of permanently installed inline dew-point analyzers Calibration transfer — used as a comparator to link humidity generators of different accuracy classes Commissioning and periodic field checks in the gas, oil, chemical, and power-generation industries Environmental monitoring and compliance testing requiring traceable dew-point measurements Metallurgical and industrial-gas process control where both water and hydrocarbon dew points must be simultaneously assessed Metrological laboratory work, including inter-laboratory comparisons within COOMET member states Emergency or mobile measurements in any location where mains power is unavailable, thanks to autonomous battery operation
