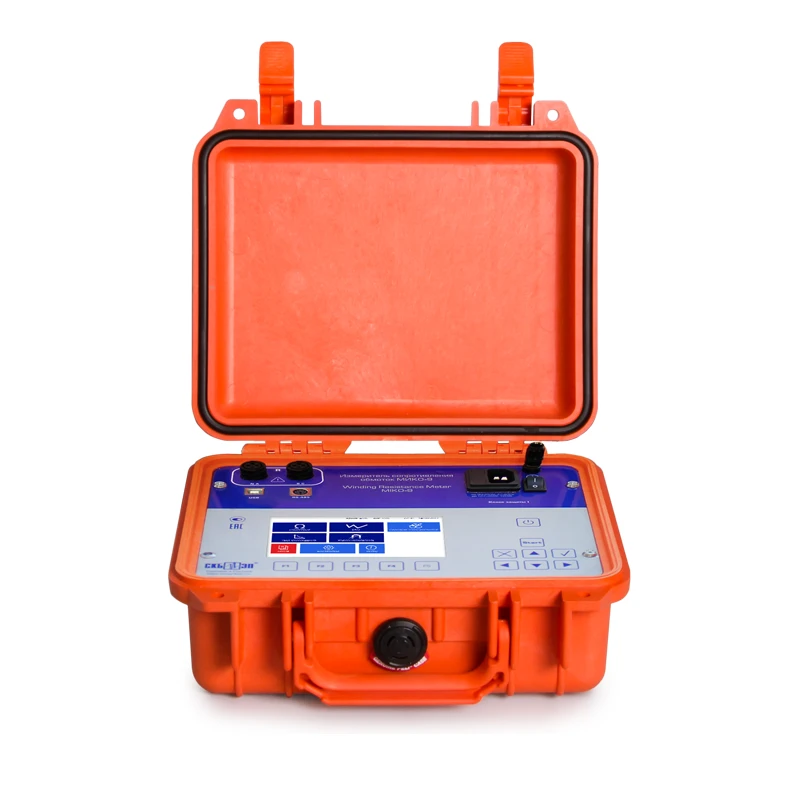

Winding resistance meter MIKO-9A Milliometer

Milliometer is designed for measuring electrical resistance in inductive and inductive-free circuits in the range of 10 µOhm ÷ 30 kOhm at current strength from 0,0005 to 10A.

Special modes that take into account the specific measurement settings of different objects.

The device allows simultaneous measurement and connection to all windings of three-phase transformers, which significantly reduces the time and labour intensity of measurement procedures.

In the device the possibility of simultaneous resistance measurement of two windings of HV/LV windings of high-power power transformers is realised, which allows to accelerate the measurement process considerably and increase the reliability of the obtained measurement results.

Full automation of the measurement process: calculation of the relative deviations of the winding resistance of the three phases to each other; conversion of the linear winding resistance to the resistance of the phase windings, etc.

The DRM test mode (DRM-test), which allows for an indiscriminate check and di...
