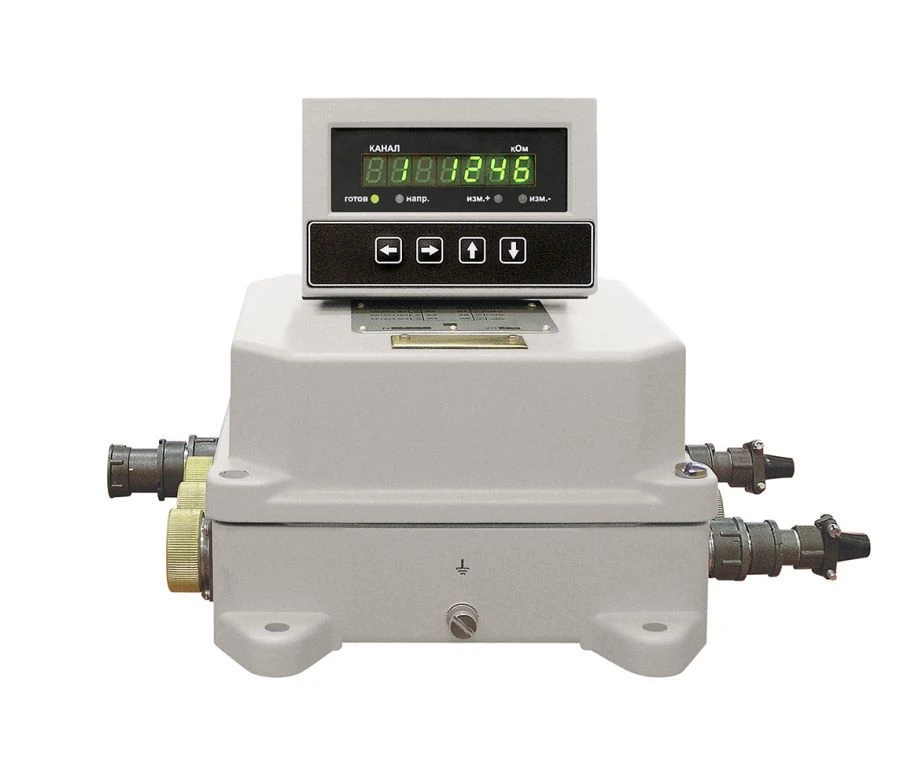

Multichannel insulation resistance meter ICIM1623

Digital Ohmmeters

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

The ICIM1623 meters are designed for multi-channel automatic measurement of insulation resistance of isolated relative to "ground" AC, DC or dual current networks, which are energised or de-energised, and transmission of information to the control system. Control objects: three-phase and single-phase AC networks of 380 V or 220 V with frequency of 50 Hz or 400 Hz; DC networks with voltage up to 320 V (including 24 V and 27 V); double current networks; networks with removed operating voltage. Number of measurement channels - up to 60. Measurement range of equivalent insulation resistance of the network - under operating voltage - from 0 to 2000 kOhm, with removed voltage - from 0 to 5000 kOhm..

Technical Specifications

Measuring range of mains resistance under operating voltage, kOhm	0-2000
Measuring range of mains resistance at removed operating voltage, kOhm	0-5000
Equivalent capacitance of the network with respect to the case , µF	100, 300, 500
Number of measurement channels	10...60 pc
Power supply voltage	27 V
Power consumption	8 W
Meter composition	Converter unit BP1623, Switching unit BK1623, Indication unit BI1623.
Self-diagnostic mode	Self-diagnosis is carried out automatically when power is supplied to the meter, as well as at the operator's command
Interface	CAN2B
Operating temperature range	0...50 °C
Inspection interval	5 a

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
