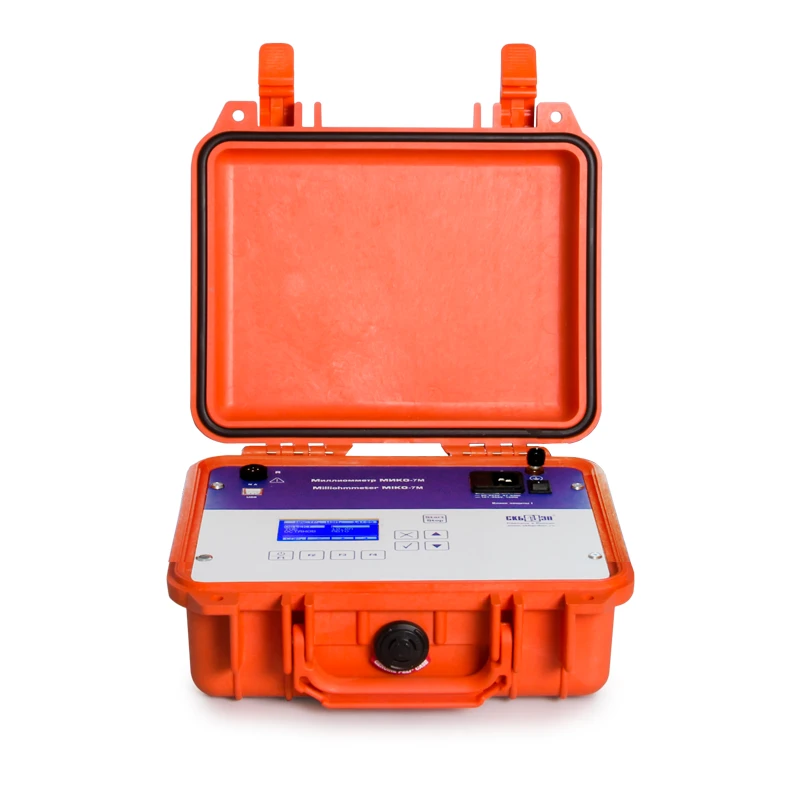

Milliometer MIKO-7M and its modification MIKO-7MA

Digital Ohmmeters

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Milliometer is designed for measuring electrical resistance in inductive and inductorless circuits in the range of 10 µOhm ÷ 2 kOhm at current strength from 0,01 to 10A.

It has a rather high field of application - it is measurement of electrical resistance of windings of power transformers and measuring current transformers, windings of electromagnets and electric motors; equalising, current-limiting and other resistors of high-voltage switches; contacts and contact connections of power and signal circuits; cables.

Special modes that take into account the specific measurement settings of different objects.

Display of special symbols characterising: the process of current establishment in the circuit, speed and direction of change of the measured resistance.

The device is powered not only from the mains but also from an external battery, depending on the modification of MIKO-7M or MIKO-7MA.

Specifications

Resistance measurement range 1 ?? ÷ 2 k? ohm

Measuring current range 0,01 ÷ 10 A A

Accuracy ±(0,1%+0,5 ??)

MIKO-7MA: Power supply (built-in battery) Lithium-ion

МИКО-7МА: Время заряда аккумулятор 3

MIKO-7MA: Duration of continuous battery operation 8

Built-in memory Up to 200 measurements

Communication with the MP/PC Bluetooth

MIKO-7MA: Instrument weight 4 kg

MIKO-7M: Instrument weight 2,7 kg

Environmental protection in working position IP 40

Environmental protection in transport position IP 67

Temperature range when operating the device -20 °C to +55 °C °C

Inspection period 3 a

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
