Available for Import

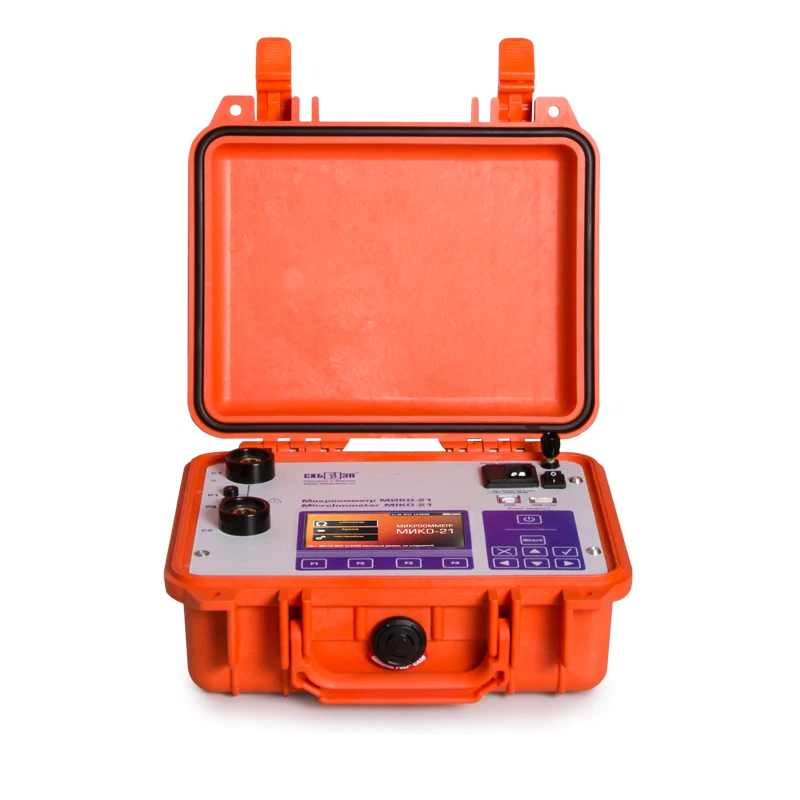

Micro-ohmmeters MIKO-21
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
High-precision micro-ohmmeter is designed to measure transient resistance of electrical equipment circuits in the range of 0,1 µOhm ÷ 2 Ohm with the lowest error of ±0,05% at rated current up to 200A.
MIKO-21 has a special algorithm for measuring transient resistances of high-voltage circuit breakers with built-in CTs.
In the MIKO-21 micro-ohmmeter the user can set the current strength in several ways up to 200A.
The instrument has four ways to start the resistance measurement process, where the User can choose the most convenient and suitable operation option.
The built-in archive of passport values of electrical resistances allows the device to automatically detect and signal the measurement result exceeding the permissible limits.
The device can be integrated into measurement systems under PC control of diagnostic laboratories and enterprises - manufacturers of electrical equipment..
MIKO-21 has a special algorithm for measuring transient resistances of high-voltage circuit breakers with built-in CTs.
In the MIKO-21 micro-ohmmeter the user can set the current strength in several ways up to 200A.
The instrument has four ways to start the resistance measurement process, where the User can choose the most convenient and suitable operation option.
The built-in archive of passport values of electrical resistances allows the device to automatically detect and signal the measurement result exceeding the permissible limits.
The device can be integrated into measurement systems under PC control of diagnostic laboratories and enterprises - manufacturers of electrical equipment..
Specifications
Resistance measurement range
0,1 ?? ÷ 2 ? ohm
Measuring current
1 ÷ 200 ? A
Accuracy
± 0,05% %
Number of digits in the measurement result output
5 pc
Power supply (built-in battery)
Lithium-ion
Battery charging time
2
Continuous battery life
8
Built-in memory
Up to 2,000 measurements (64 Mb)
PC communication
USB and USB host
Instrument weight
3.3kg kg
Environmental protection in working position
IP 40
Environmental protection in transport position
IP 67
Temperature range when operating the device
-20 °C to +50 °C °C
Inspection period
3 a
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
