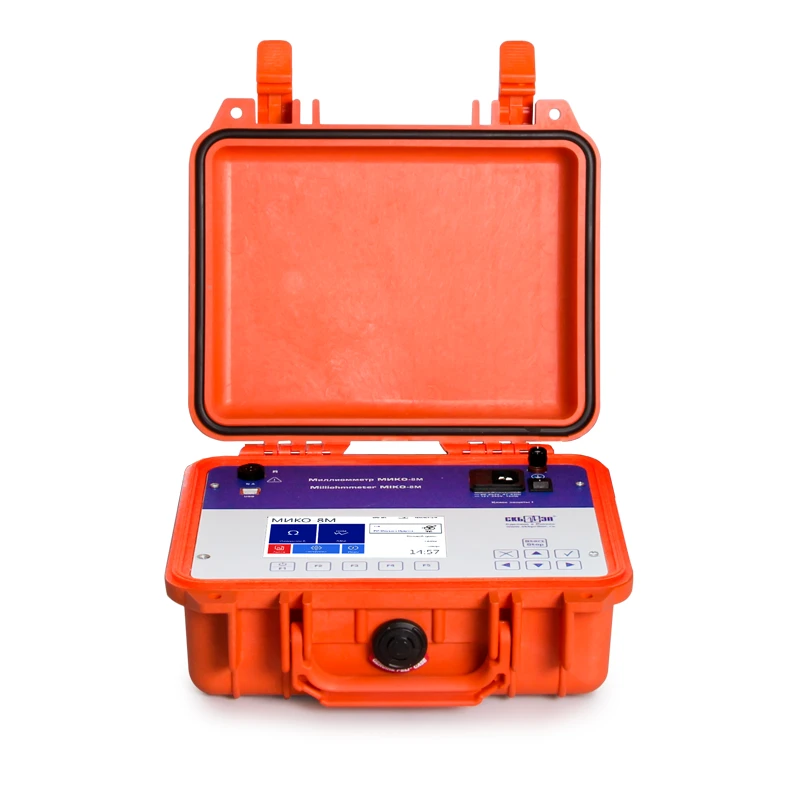

Milliometer MIKO-8M and its modification MIKO-8MA

Digital Ohmmeters

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Milliometer is designed for measuring electrical resistance in inductive and inductorless circuits in the range of 10 µOhm ÷ 10 kOhm at current strength from 0,001 to 10A.

Special modes that take into account the specific measurement settings of different objects.

Full automation of the measurement process: calculation of the relative deviations of the winding resistance of the three phases to each other; conversion of the linear winding resistance to the resistance of the phase windings, etc.

The DRM test mode (DRM-test) is a mode that allows to carry out an on-load tap-changer with current-limiting resistors without removing the diverter switch box cover. As a result, the device produces an evaluation oscillogram.

Touch screen, non-volatile memory, mains or internal battery power.

The device is powered not only from the mains, but also from an external battery, depending on the modification MIKO-8M or MIKO-8MA.

Specifications

Resistance measurement range 1 ?? ÷ 10 k? ohm

Measuring current range 0,001 ÷ 10 A A

Accuracy ±(0,1%+0,5 ??)

Measuring current range in DRM mode 0,1 ÷ 10 A A

MIKO-8MA: Power supply (built-in battery) Lithium-ion

MIKO-8MA: Battery charge time 3

MIKO-8MA: Duration of continuous battery operation 8

Built-in memory up to 1,000 measurements

Communication with the MP/PC Bluetooth / USB cable

MIKO-8MA: Instrument weight 4 kg

MIKO-8MA: Weight of the instrument 2,7 kg

Environmental protection in working position IP 40

Environmental protection in transport position IP 67

Temperature range when operating the device -20 °C to +55 °C °C

Inspection period 3 a

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
