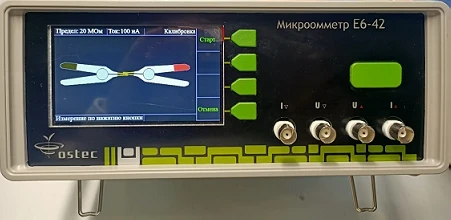

Ohmmeter

Ommeter measures electrical resistance within the measurement range from 2 mOhm to 200 Mohm.Ohmmeter provides the specified characteristics after the establishment of the operating mode within 20 min.Continuous operation of ohmmeter is possible within 18 h with non-working intervals of at least 2 h.Voltage drop on the measured resistance is not more than 1 V. The ohmmeter has manual switching on and indication of:- resistance measurement limits;- automatic and manual selection of measurement limits;- zero correction mode.The ohmmeter is a desktop portable device and is made in a metal case.To ensure the specified accuracy of measurements in the range above 2 MOhm, the measuring chamber included in the delivery set is used. The electrical circuit of the chamber provides reliable protection against the influence of external electromagnetic interference and parasitic leakage currents on its measuring circuits.
