Viscometer TRL35 SAV

Fluid Measurement Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

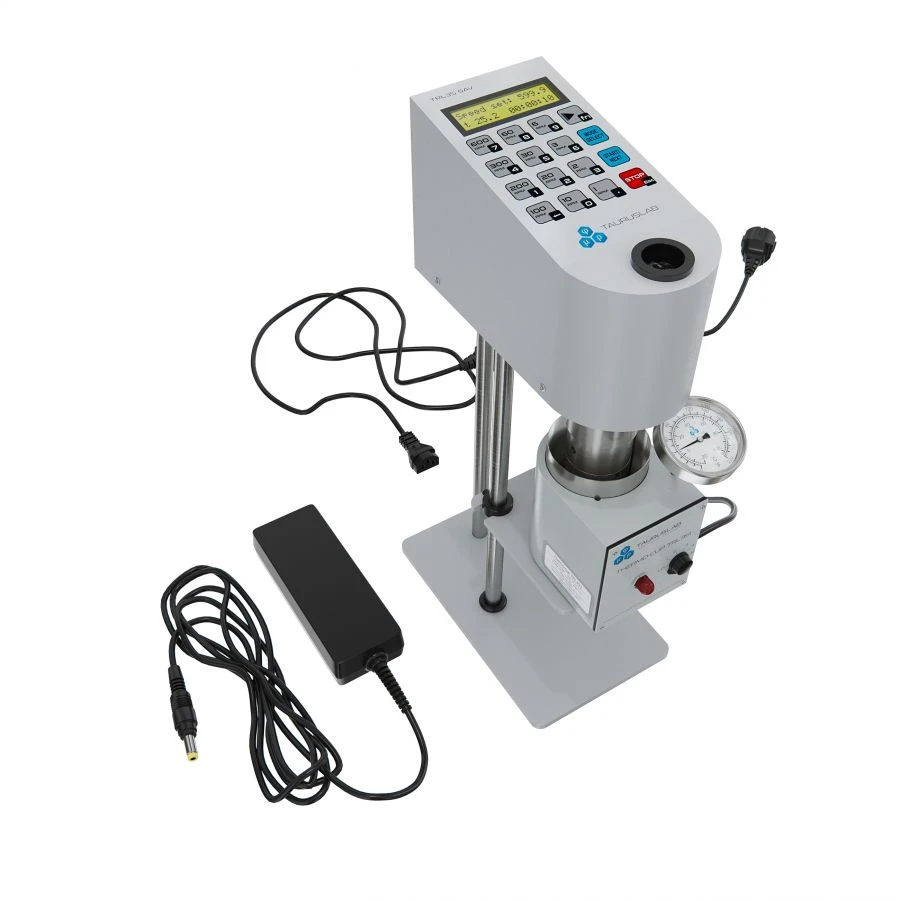

The TRL35 SAV Viscometer (Semi-Automatic Viscometer), part of the 35 instrument series, is a semi-automatic viscometer measuring viscosity in the range of 0.17 - 1021 s-1 shear rate and in the range of 5.11-1533 dyne/cm2 shear stress. Its modern design, sophisticated ergonomics, rugged construction and four API test algorithms make the TRL35 SAV a versatile, portable device for use in field and stationary laboratories.The instrument allows automatic testing and parameter recording with operator assistance. The TRL35 SAV allows any rotation speed to be set. The temperature is monitored by a temperature sensor forcibly placed in the sample beaker and displayed on the LCD.

Specifications

Rated supply voltage 110...230 V

Number in the state register of measuring instruments 88324-23

Temperature range Standard to 93 0C °C

Fixed speeds 1

Testing programmes 4 preset API programs

Working pressure Atmospheric

Viscosity range 0.05 - 10,000 cPuaz

Shear velocity range 0,17 - 1021 sec-1

Shear voltage range 5,11 - 1533 dyne/cm2

Resolution 1 din/cm2

Accuracy ±0.5% torque range %

Dimensions 42-13-20 (w-to-d) cm

Weight 5 kg

Completeness Viscometer TRL35 SAV; Sample cup, 304 stainless steel; Temperature sensor, 304 stainless steel; Bob B1, 304 stainless steel, all-metal; Rotor R1, 304 stainless steel; Mud cover, 304 stainless steel; Torsion spring F1 (with

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
