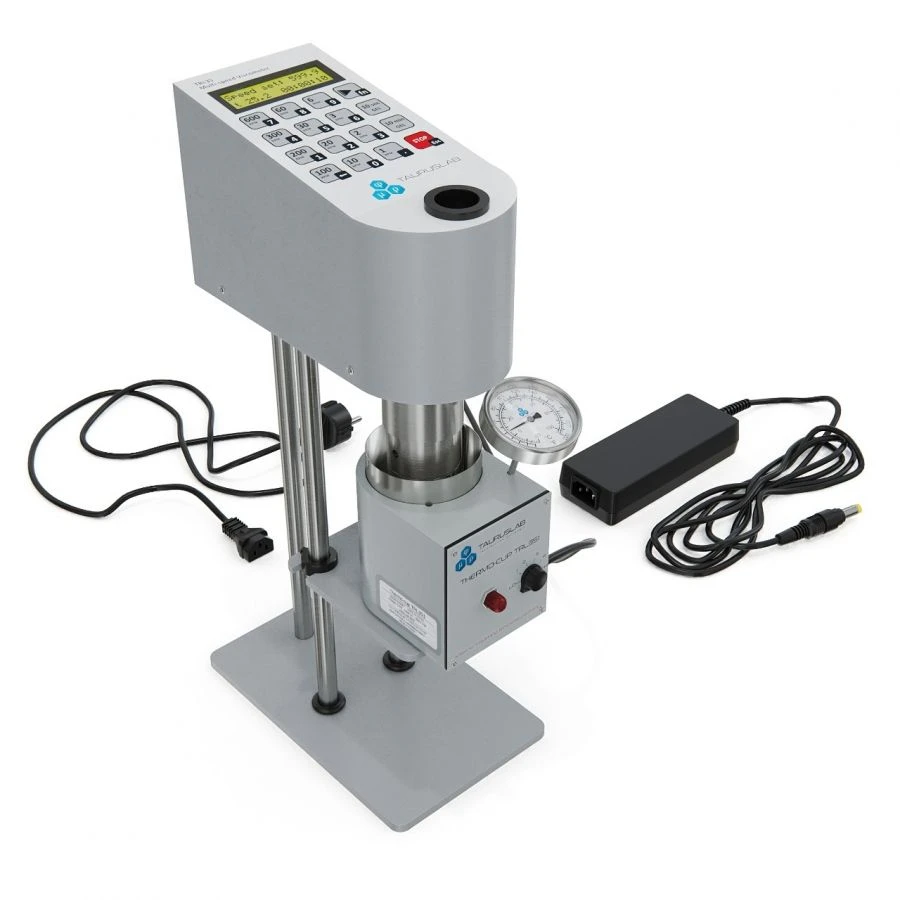

Rotational viscometer TRL35 MS

Fluid Measurement Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

The TRL35 Multi-Speed (MS) Rotational Viscometer is an instrument for direct measurement of viscosity over a wide range of speeds, from 0.1-600 rpm. It is a Couette rotary viscometer with a coaxial cylinder. The principle of viscometers operation is based on measurement of shear stress value of the investigated liquid with the help of torsion spring under the action on the bean of torque arising at rotation of the rotor with constant frequency. Fully complies with the requirements of GOST 33213-2014 (ISO 10414-1:2008) and API RP 10 and 13B-1 standard. Allows setting any rotational speed by simple manipulations on the control panel. There are preset speeds and buttons to start tests according to API standard in the instrument memory. Technological speed 800 rpm. Equipped with a temperature sensor with the value display on LCD, has audible signals when carrying out various tests and transitions between programme modes and steps. Included in the State Register of measuring instruments.

Technical Specifications

Rated supply voltage	110...230 V
Viscosity measurement range	0.05 - 10,000 cPuaz
Accuracy	±0.5% torque range %
Rotor speed range (N)	0...600
Operating temperature range	Standard to 93 °C
Working pressure range	Atmospheric
Operating temperature	5...40 °C
Fixed speeds	2
API programme	10 sec Gel and 10 min Gel
Standard layout	R1; B1; F1 (Rotor, Bob, Spring)
Height	43 cm
Width	13 cm
Depth	20 cm
Weight	5 kg
Number in the state register of measuring instruments	88324-23
Completeness	Viscometer TRL35 MS; Sample beaker, 304 stainless steel; Thermal sensor, 304 stainless steel; Bob B1, 304 stainless steel, all-metal; Rotor R1, 304 stainless steel; Dirt duster, 304 stainless steel; Torsion spring F1 (with a

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Shipping & Payment Information

Shipping Terms

FOB: Novorossiysk, Russia
CIF: Available to major ports worldwide
EXW: Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination)
Air freight: 14-21 days (for urgent orders)
Production lead time: 30-90 days (depending on order size)

Payment Methods

Letter of Credit (L/C)
Wire Transfer (T/T)
Escrow Services

Order Minimums

We work with orders starting from 1 container
You can mix different products in one container
Volume discounts available for larger orders

Customs & Documentation Support

We provide comprehensive assistance with all export documentation, customs clearance, and logistics arrangements. Our team has extensive experience facilitating international trade with businesses in Africa, Middle East, Asia, and Latin America.
