Measuring system ALCO 1M
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description

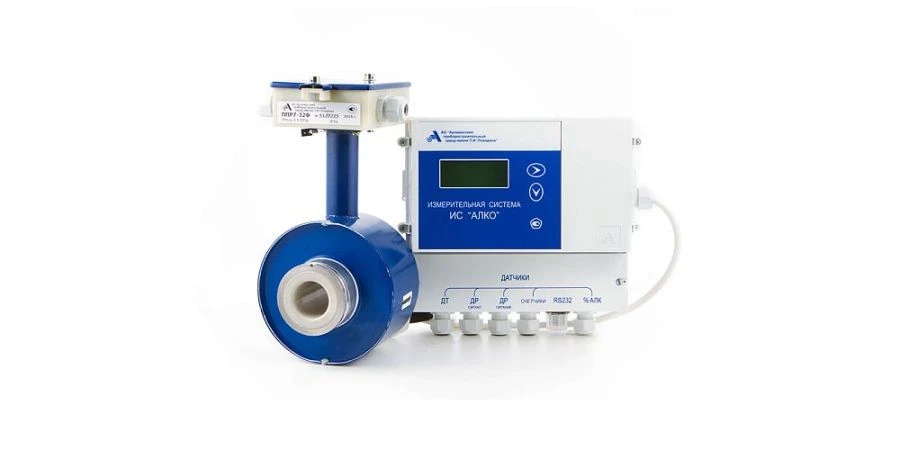

The system is designed for automatic accounting of brandy spirits, spirits (including vodka), wine, fruit wine, liqueur wine, sparkling wine (champagne), wine drinks, during their production (including bottling lines), shipment and receipt, as well as for the formation and transfer of information to a single state automated system of accounting of production and turnover of ethyl alcohol, alcoholic and alcohol-containing products (EGAIS). The system complies with the technical conditions approved by the order of Rosalkogolregulirovanie ? 74 of 24.03.15. To control the modes of operation, formation and transmission of information to the EGAIS, the system is connected to a specialised computer with a touch screen monitor of monoblock design (USPD-PC). The system components in contact with the measured medium are made of materials approved for use in the food industry. Warranty period of operation: 12 months from the date of commissioning.
Specifications
Meter type
Stationary
Weight of PPR-7 (kg)
DN TPR-7 20mm: not more than 4,0; DN TPR-7 32mm: not more than 4,3; DN TPR-7 40mm: not more than 5,0; DN TPR-7 50mm: not more than 6,0; DN TPR-7 80mm: not more than 9,0; DN TPR-7 100mm: not more than 11,0; DN TPR-7 150mm: not more than 37,0.
Minimum flow rate (l/s)
DN PRP-7 20mm: 0.034; DN PRP-7 32mm: 0.22; DN PRP-7 40mm: 0.40; DN PRP-7 50mm: 0.64; DN PRP-7 80mm: 0.8; DN PRP-7 100mm: 1.26; DN PRP-7 150mm: 3.2
Maximum flow rate (l/s)
DN PRP-7 20mm: 1.00; DN PRP-7 32mm: 3.33; DN PRP-7 40mm: 4.00; DN PRP-7 50mm: 6.4; DN PRP-7 80mm: 22.2; DN PRP-7 100mm: 33.3; DN PRP-7 150mm: 69.4
