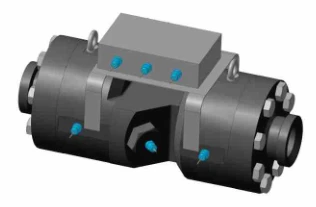

Multiphase bench multiphase flowmeter MR 100x105 YUMGI.407279.002

Fluid Measurement Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Multiphase flowmeter MR 100x105 YUMGI.407279.001

Description

Multiphase multiphase flowmeter-density meter MR 100x105 is designed to control flow rate and density of working medium (water, oil products, gel, gel with proppant and chemical additives, inhibited 20% hydrochloric acid solution) without separation of fractions when it is fed from the manifold into the well. The method of flow density measurement is performed by panoramic meters of amplitude-frequency characteristics. A continuous signal from generators is fed into resonators through which the working fluid passes. The resonant frequency of the resonators varies in proportion to the flow density. From the flux density, the phase ratio is calculated. Advantages: -Because of absence of moving protruding parts the flowmeter is least exposed to solid particles (proppant) with linear helium -Measurement results do not depend on pressure and temperature -No influence of device parts on the flow, no pressure losses -Source of radioactive radiation is excluded from the design

Specifications

Name Control and measuring instrument for oil and gas industry

Service life 20 a

Average MTBF 64000

Warranty period from the date of commissioning 2 a

Weight 550 kg

Height 600 mm

Width 600 mm

Length 1100 mm

Power consumption 100 W

DC voltage 24 V

Storage temperature -40...60 °C

Degree of protection of electrical equipment according to GOST 14254-96 Not lower than IP 66

Ground ambient air temperature -40...40 °C

Temperature of the medium 0...60 °C

Explosion protection of the sensor housing 1ExdbibIIBT5GbX

Data exchange protocol Modbus RTU

Communication interface RS-485

Coupler connection Type Hammer Union Fig. No. 1502

Density of the medium Up to 1.6 t/m³

Permissible relative error of working liquid measurements by density -0.15...0.15 %

Permissible error when measuring the volumetric flow rate of a liquid -0.5...0.5 %

Range of propane flow rate per cubic meter of helium 0...2.4 t

Liquid mass flow measurement range (m³ / min) 0,25 to 16

Test pressure 157.5 MPa

Maximum pressure of the medium 105 MPa

Nominal diameter of manifold pressure tube 100 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
