Available for Import

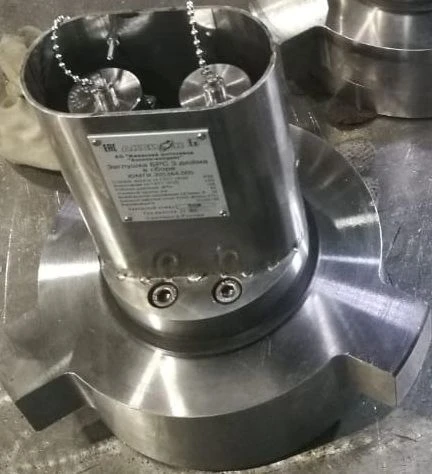

Blanking plug 3 inch in assembly YUMGI.305364.005

Fluid Measurement Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Blanking plug 4 inch complete YUMGI.305364.006

The plug 3 inch complete is designed for installation at the tapping into the manifold and measuring the pressure of the working medium (water, petroleum products, gel, gel with proppant and chemical additives) passing through the manifold, and converting the value of the measured parameter into a digital signal via Modbus RTU protocol, transmitted via RS-485 interface to the control system PC.

Technical Specifications

Rated supply voltage	24 V
Weight	18 kg
Average service life	20 a
Average MTBF	65000
Test pressure value	160 MPa
Climatic execution according to GOST 15150	UHL
Degree of protection against penetration of external solid objects and water according to GOST 14254	IP 66
Type of explosion protection	1 Ex D IIC Gb U
Connection type	Hammer Union Fig.?1502
Height	219 mm
Width	235.1 mm
Length	234.5 mm
Total power consumption	2 W
Digital output signal	RS-485 (Modbus RTU)
DC supply voltage	19.2...28.8 V
Permissible reduced error of pressure measurement, not more than	0.5 %
Measured pressure	0...105 MPa
Nominal bore diameter	76 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
