Water meter Decast VSCM-15 (110 mm, with kmh with OK)

Fluid Measurement Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

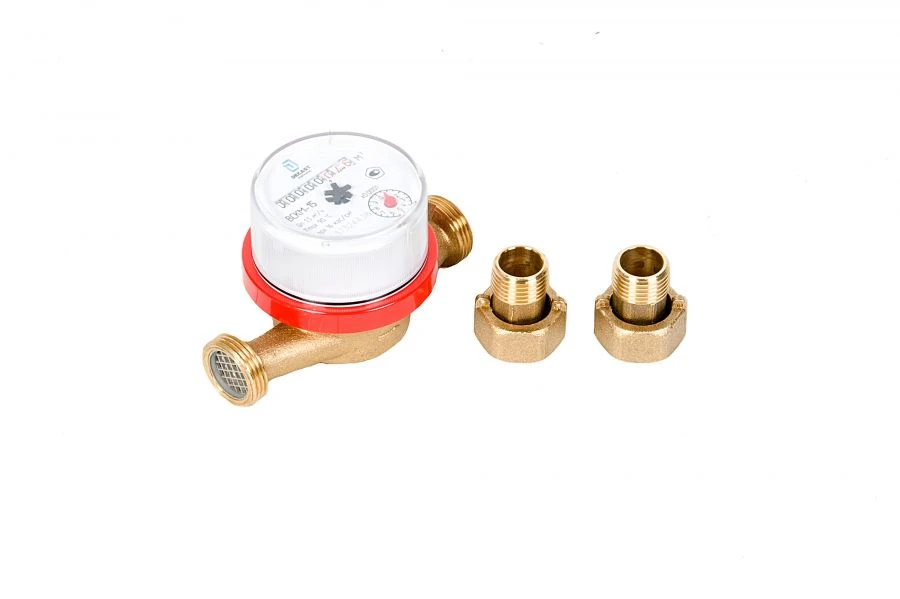

Decast VSCM-15 single-jet winged meter for cold and hot water.
FEATURES AND ADVANTAGES:
-maximally convenient reading;
-360 degrees rotatable counting mechanism with 8 rollers and arrow pointer;
-protection against external magnetic influence;
-interval of verification 6 years;
-set of mounting parts is completed with a check valve;
-the set of mounting parts provides the necessary lengths of straight sections;
-mounting length 110 mm.

Specifications

Diameter of nominal passage, DN 15 mm

Minimum flow rate, Qmin 0.03

Transient flow rate, Qt 0.12

Nominal flow rate, Qn 1.5

Maximum flow rate, Qmax 3

Maximum working pressure 1.6 MPa

Operating range of water temperature 5...95 °C

Capacity of counting mechanism, m3 99999.9999

Presence of check valve in the set of assembly parts Armoured glass
