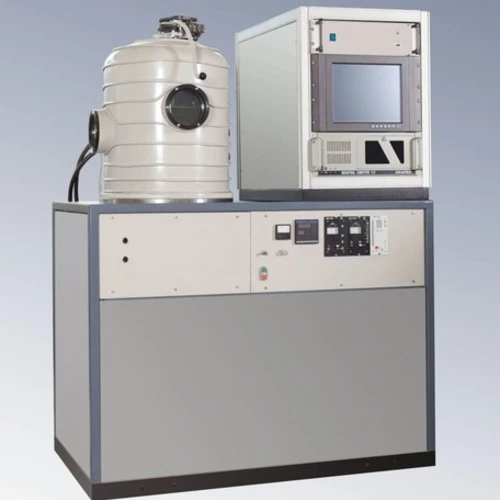

Vacuum deposition unit UVN-71P-3M-2
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
one-sided deposition of metallic and resistive films on polycor and
satin substrates by magnetron vacuum sputtering method in the production of
hybrid-film microchips.
Maximum number of substrates with the size of
60x48x(0,5...1,0) mm 11 pcs.
The unit has 3 magnetron evaporators.
Time of achievement of residual pressure 4 x 10-4 Pa in the working chamber
after opening of the high-vacuum shutter not more than 60 min.
The unit provides:
-regulation of rotation speed of the carousel with
substrates in the range from 10 to 60 rpm;
-heating of the carousel with substrates up to 300 °C;
-control of the witness resistance
of film sputtering on the substrates in the range from 0 to 100 kOhm;
- ion source power up to 200 W;
-power of the first magnetron evaporator
of the first magnetron evaporator of adhesive material up to 2 kW;
-power of the second magnetron vaporiser
of the second magnetron evaporator of conductive material and the third magnetron evaporator of resistive material...
Technical Specifications
Width | 4000 mm |
---|---|
Length | 1300 mm |
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
