Available for Import

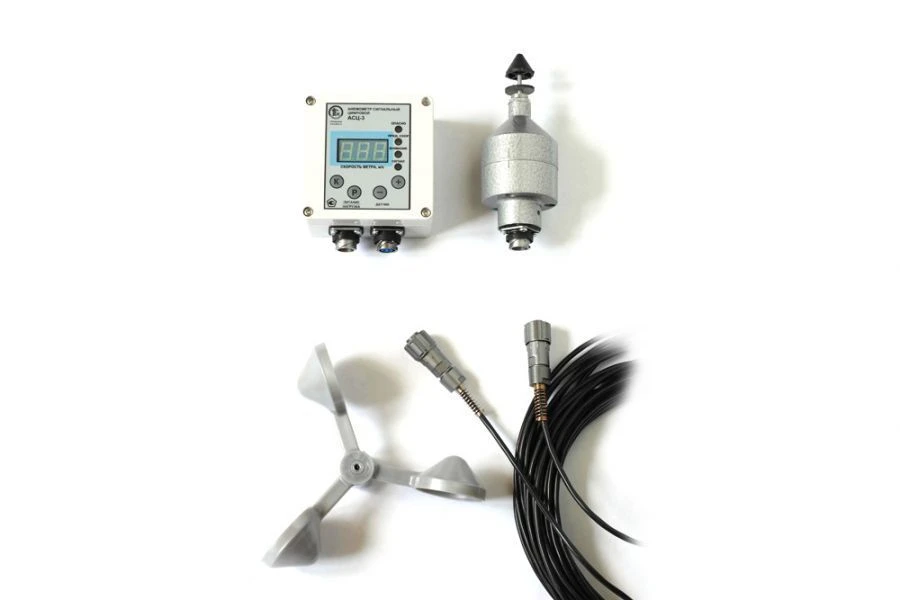

Signal digital anemometer ASC-3
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
It is a measuring instrument. Registered in GOSREESTR (FGIS "ARSHIN"). It is intended for determination of air flow speed (wind) in industrial conditions, allocation of dangerous wind gusts and inclusion of signalling devices.
Wind speed measurement range is from 3.0 to 30.0 m/s.
The range of setting thresholds in the form of setting the limit wind speed Vpr from 10.0 to 32.0 m/s with a step of 0.1 m/s.
The limit of permissible error of measurement and the threshold of operation by the limit wind speed Vpr is not more than ±(0.5+0.05V) m/s, where V is the measured speed.
Electrical power supply of the anemometer is carried out according to one of the variants:
- AC voltage ~220V +/- 15 %, frequency 50 Hz;
- DC voltage from 9 to 30 V.
Power consumption is not more than 3 VA.
Wind speed measurement range is from 3.0 to 30.0 m/s.
The range of setting thresholds in the form of setting the limit wind speed Vpr from 10.0 to 32.0 m/s with a step of 0.1 m/s.
The limit of permissible error of measurement and the threshold of operation by the limit wind speed Vpr is not more than ±(0.5+0.05V) m/s, where V is the measured speed.
Electrical power supply of the anemometer is carried out according to one of the variants:
- AC voltage ~220V +/- 15 %, frequency 50 Hz;
- DC voltage from 9 to 30 V.
Power consumption is not more than 3 VA.
Specifications
Number of reference characters
3 pc
Service life
10 a
Inspection interval
B1/B8 2100/900 MHz
Warranty period
B1/B8 2100/900 MHz
Permissible current in the external load
3 A
Power supply voltage
220 V
Discreteness of the information display reference
0.1
Control unit operating temperature range
-40...55 °C
Wind speed sensor operating temperature range
-50...65 °C
Tolerance limit of measurement error
±(0,5+0,05V)
Wind speed measurement range
3...32
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
