Pressure sensors DM5017

Fluid Control Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

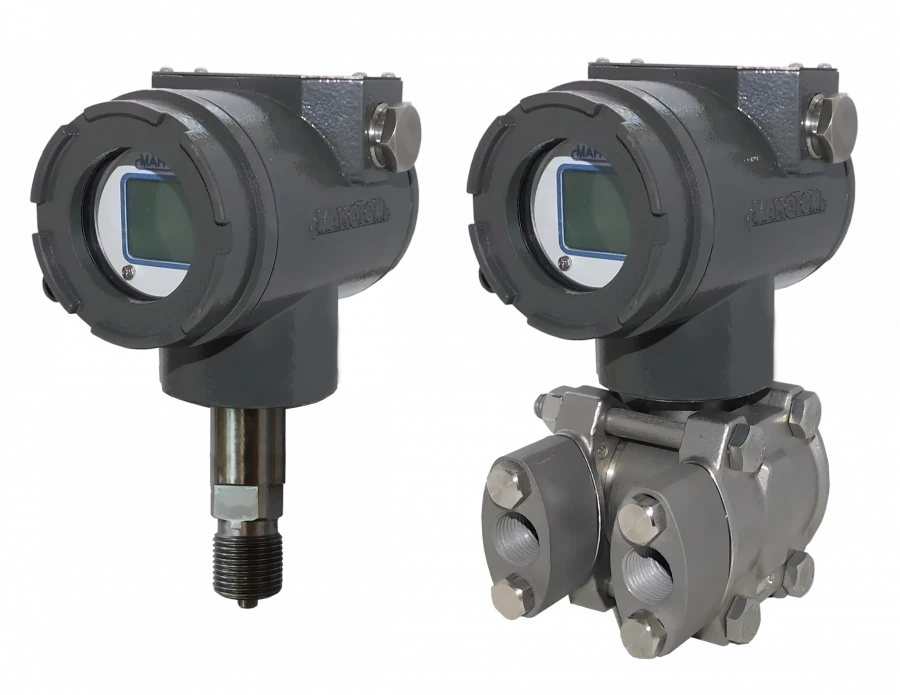

DM5017 pressure sensors are designed for continuous measurement and conversion of gauge pressure (DP), absolute pressure (AP), vacuum pressure (VP), gauge pressure-dissipation (GPD) and pressure difference (PD) into a unified current output signal and/or digital signal in HART protocol standard, or digital signal on the basis of RS-485 interface via Modbus protocol. Due to software configuration of the structure of analogue and digital parts of the sensor, implementation of automation functions (control of valves, pumps, etc.) the sensor can operate in control and measurement systems of level, density and flow, including aggressive media. The devices are produced for use in various industries, including for delivery to nuclear power plants.

Specifications

Operating static pressure 10 MPa, 25 MPa

Performances General industrial; Explosion-proof - "1Ex d IIC T5 Gb X" flameproof enclosure; Explosion-proof - "0Ex ia IIC T5 Ga X" intrinsically safe electric circuit.

Warranty period 5 years

Average service life At least 12 years

Inspection interval 5 a

Alarm devices (optional) Got it

Climatic version UHL3.1 (minus 20 to plus 70 C); U2 (without LCD display minus 55 to plus 85 C); T3 (minus 10 to plus 60 C)

Basic reduced error 0.25; 0.2; 0.15; 0.1; 0.06 %

Pressure-volume (PV), upper limit of measurement 100

Differential pressure (DP), upper measuring limit 6.3 MPa

Overpressure-dissipation (OPD), upper measuring limit 0.05 MPa

Overpressure (OD), upper limit of measurement 40 MPa

Absolute pressure (YES), upper measuring limit 6 MPa

Output signal, mA 4-20mA, HART; RS-485, ModBus

Dustproof IP66; IP67

Execution flanged, socket

Designation DM5017

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
