Available for Import

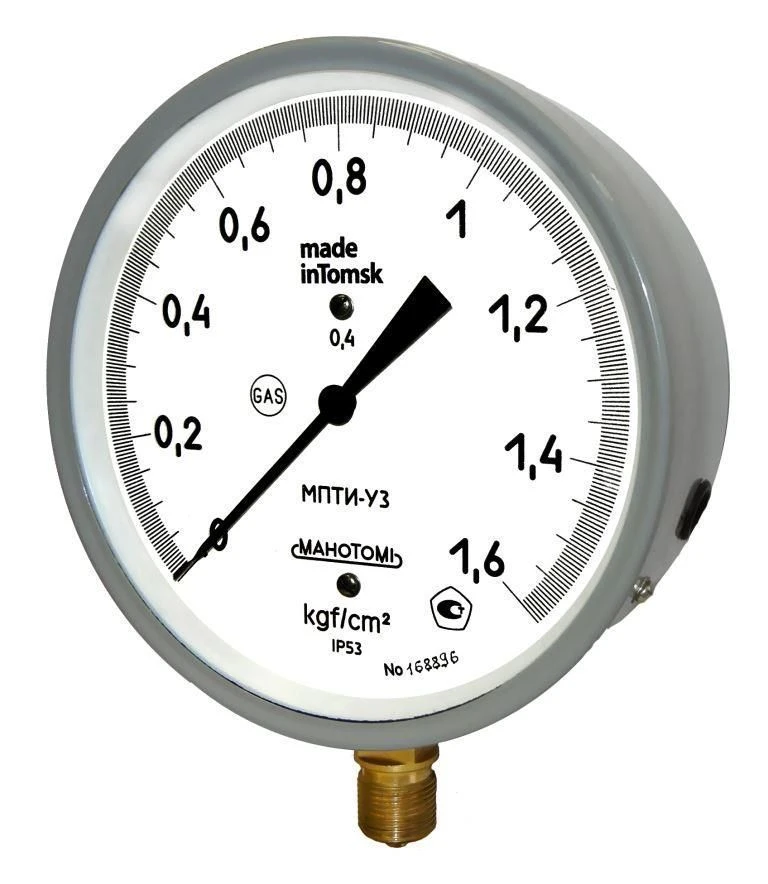

Manometer MPTI 0.4 160MM

Fluid Control Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Manometers, vacuum gauges and manovacuum gauges showing for precise measurements MPTI, VPTI, MVPTI are designed for measuring gauge and vacuum pressure of non-aggressive, non-crystallising liquids, gas and steam, including oxygen and application in the spheres of state metrological control and supervision (SMC&S) and state system of industrial devices and means of automation (GSP).

Instruments of accuracy class 0.4 are available with zero correction only on the housing.

Devices of accuracy class 0,4 are allowed to be used as reference measuring instruments, provided that the necessary ratios of the limits of tolerance of basic errors with working measuring instruments are observed.

Specifications

Inspection interval 2 a

Warranty period 3 a

Fitting threads M20*1;5-8g; G1/2-b (G1/2; K1/2 for reading ranges up to 600 kgf/cm²)

Degree of protection IP53

Material of parts glass: silicate tubular spring: copper alloy; iron-nickel alloy holder: copper alloy; stainless steel mechanism: copper alloy; stainless steel; steel 08kp

Housing material Aluminum alloy

Mark MPTI

Vibration protection V4 (5 to 120 Hz with an amplitude of 0;15 mm and an acceleration of 19;6 m/s²; and 120 to 250 Hz with a vibration acceleration of 3 m/s²)

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
