Liquid level indicator ILL-BP-A12 "Reserv-Eco"

Fluid Control Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

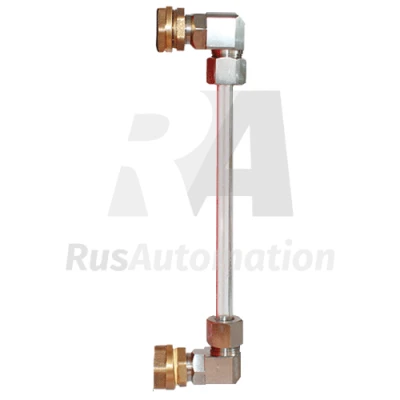

The level indicator is designed for visual control of liquids of different physical and chemical properties in a transparent glass tube and is used in equipment operating under overpressure up to 0.4 MPa, in all branches of economic activity except nuclear industry. The level indicator is installed outside the vessel: in manual control systems for control of its filling, and as a duplicating device in automatic systems for evaluation of correct work of automatics. Structurally the pointer is made in the form of 2 shut-off devices, between which a sight tube is installed. Operation is based on the law of communicating vessels: the level of liquid column in the tube corresponds to the level in the tank. The level is determined visually by the boundary of separation of liquid and gaseous phases. The pointer is available in several versions to suit the customer's needs. The following parameters are available for customisation: connection length, sight tube material, process connection, protective cover.

Technical Specifications

Minimum operating temperature	-30 °C
Material of shut-off valves	stainless steel
Seal material	NBR
Assigned resource	70000
Service life	8 a
Sealing class of shut-off devices	?
Climatic version	TOU1;U3.1
Maximum operating temperature	70 °C
Maximum permissible internal overpressure	0.6 MPa
Nominal pressure	0.4 MPa
Complete with hood	With hood; Without hood
Joining the process	Thread G 1/2"-A GOST 6357
Inspection tube material	Plexiglas; Acrylic glass
Connection length	500...1500 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
