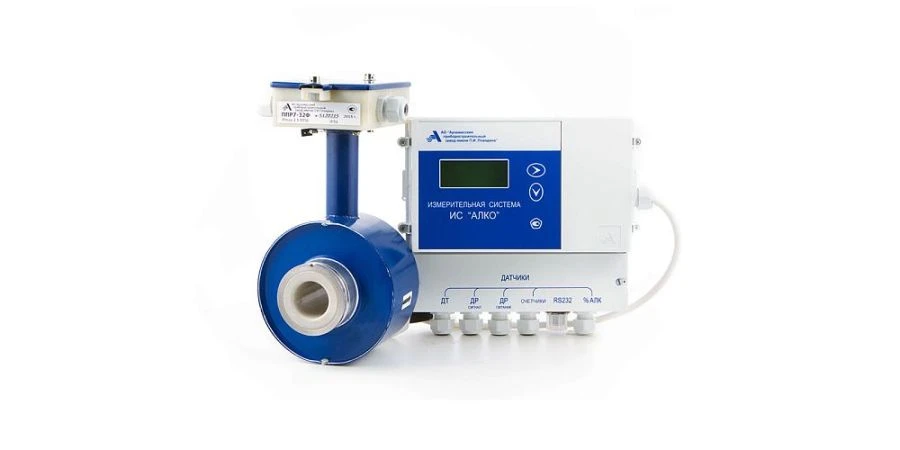

ALCO-P measuring system
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
The system is designed for automatic accounting of beer and beer-based beverages during their production (including bottling lines), shipment and receipt, as well as for the formation and transfer of information to the unified state automated system for accounting of production and turnover of ethyl alcohol, alcoholic and alcohol-containing products (EGAIS). The system is included in the State Register and has a certificate of type approval of measuring instrument. The system complies with the technical conditions approved by the order of Rosalkogolregulirovanie ? 74 of 24.03.15. To control the modes of operation, formation and transmission of information to the EGAIS, the system is connected to a specialised computer with a touch screen monitor of monoblock version (USPD-PC). The system components in contact with the measured medium are made of materials approved for use in the food industry. The warranty period of operation is 12 months from the date of commissioning.
Specifications
Meter type
Stationary
Weight of PPR-7 (kg)
DN 20mm: 4,0; DN 32mm: 4,3; DN 40mm: 5,0; DN 50mm: 6,0; DN 80mm: 9,0; DN 100mm: 11,0; DN 150mm: 19,5
Minimum flow rate depending on version (l/s)
DN PRP-7 20mm: 0.034; DN PRP-7 32mm: 0.22; DN PRP-7 40mm: 0.40; DN PRP-7 50mm: 0.64; DN PRP-7 80mm: 0.8; DN PRP-7 100mm: 1.26; DN PRP-7 150mm: 3.2
Maximum flow rate depending on version (l/s)
DN PRP-7 20mm: 1.00; DN PRP-7 32mm: 3.33; DN PRP-7 40mm: 4.00; DN PRP-7 50mm: 6.4; DN PRP-7 80mm: 22.2; DN PRP-7 100mm: 33.3; DN PRP-7 150mm: 69.4
