Fuel level sensor GSF

Fluid Control Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Fuel level sensor GSF is designed to measure the level in various containers for different types of fuels and refined products.
GSF fuel level sensors are available in different versions depending on the length of the sensing element: GSF700 (actual length of the sensing element is 714 mm, working length is 700 mm), GSF1000 (actual length of the sensing element is 993 mm, working length is 979 mm), GSF1500 (actual length of the sensing element is 1493 mm, working length is 1479 mm) or GSF2000 (actual length of the sensing element is 1993 mm, working length is 1979 mm), and can be supplied with or without primary verification.

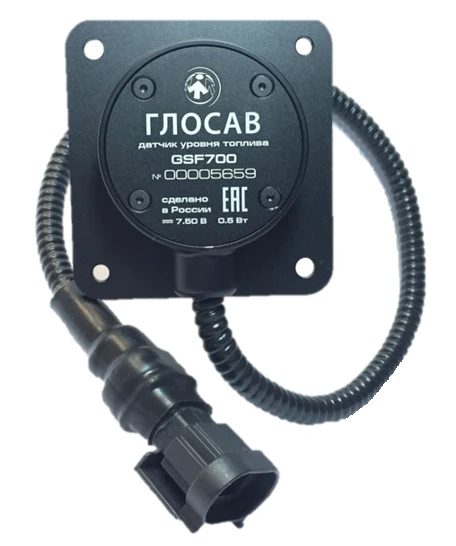

The sensors are available in aluminium alloy housing with black protective coating, connecting wires are protected by metal sleeves. Information exchange with fuel level sensor GSF is carried out either via RS-232 or RS-485 interface.

Specifications

Limits of permissible basic reduced error of level measurement ±1 %

Limits of permissible additional reduced error of level measurements at deviation of ambient temperature from normal ± 0.05 %

Limits of permissible additional reduced error of level measurements at deviation of ambient temperature from normal ±1 %

Temperature range of the ambient air and the medium determining normal measuring conditions plus 15 to plus 25 °C

Electrical strength of galvanic isolation, not less than 2500 V

Permissible range of supply voltage (DC) 7 to 80 V

Current consumption, max. 0.02 A

Power consumption, max. 0.3 W

Average MTBF, not less than 40000

Average service life 6 a

Degree of dust and moisture protection of the case IP 69

Permissible range of ambient temperature in normal operating conditions From minus 40 to plus 85 °C

Permissible ambient temperature range in extreme operating conditions from minus 60 to plus 85 °C

Operating conditions: relative humidity at temperature plus 25 °C 30 to 80 %

Operating conditions: atmospheric pressure From 84 to 107

Operating mode according to GOST R 52230-2004 prolonged

External device connection interface RS-232, RS-485

Programmable interface data transfer rate 9600, 19200, 38400, 57600, 115200

Range of change of the digital code corresponding to the maximum value of the measured level 0 to 4095

Range of change of the digital code corresponding to the minimum value of the measured level 0 to 1023

Range of change of the digital code corresponding to the minimum value of the measured level 0 to 32767

Measurement period 1

Interval of automatic data output 1 to 255

Internal filter size 0 to 21

Maximum number of slave sensors (SLAVE) 4 pc

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
