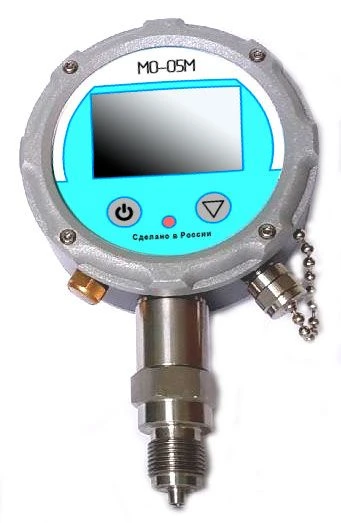

Manometer digital MO-05M Version 7

Fluid Control Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Digital pressure gauge MO-05M Version 6

Description

MO-05M digital pressure gauges for precise measurements with indication of current measured values on the digital display: gauge pressure of liquids and gases, gas discharge. Field of application in the sphere of state regulation of ensuring the uniformity of measurements: transfer of the size of pressure units during verification, calibration and testing of pressure measuring instruments

Specifications

Type depending on the operating principle Digital

Assignment Worker

Type according to the method of measurement information output Showing

Type of pressure to be measured Gauge pressure measurement; Vacuum pressure measurement; Gauge-vacuum pressure measurement

Basic reduced error 0,02; 0,025; 0,05; 0,1; 0,15; 0,25; 0,4 MPa

Display Liquid crystal

Measuring head (MH) Non-removable

Number of sub-bands 1 pc

Climatic version - UHL3.1 (-30 ÷ +70 °?); - UHL3.1 (-10 ÷ +70 °?); - UHL3.1 (+5 ÷ +50 °?); - UHL3.1 (+18 ÷ +28 °?) for 0,02 - 0,05% and pressure gauges with ±2 and ±6 kPa GPI.

Upper measurement limit 0.25 to 100 MPa

Lower measuring limit minus 0.1; 0

Absolute error of measurements ±1.5 mmHg

Dustproof IP65

Execution General industrial

Range reconfiguration depth 1:4 to 1:7

Inspection interval 2 a

Warranty period 1 a

UPI (measurement subranges) -0,1÷0,25, 0÷2,5, -0,1÷2,5, 0÷16, 0÷60, 0÷100 MPa

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
