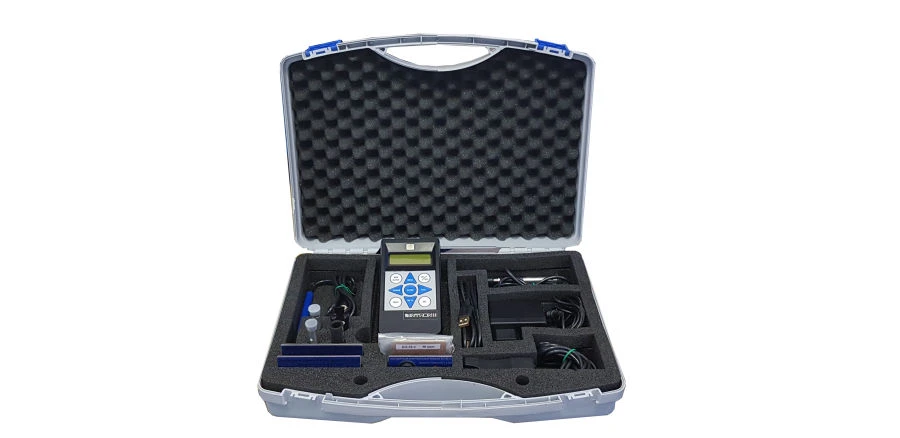

Printed circuit boards copper coating thickness meters INTROMET

Eddy Current Testers

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

The INTROMET instrument is designed for non-destructive non-contact measurements of metallisation thickness in the holes of printed circuit boards (PCBs) and on the dielectric surface, including PCBs. It is possible to measure the thickness of copper coatings before or after etching of the PCB pattern, as well as under the protective layer of tin-lead coating.

Specifications

Minimum size of a pad when measuring a copper layer on the surface of a printed circuit board 60mm * 60mm

Measuring range 10...60

Memory capacity 15 000 measurements

Temperature range 5...40 °C

PP thickness 1...2 mm

Diameter of monitored holes 0.8...2 mm

Type of product according to PP RF 616 Instruments and other instruments for measurement, control and testing

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
