Available for Import

Milliometer MIKO-8MA

Eddy Current Testers

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

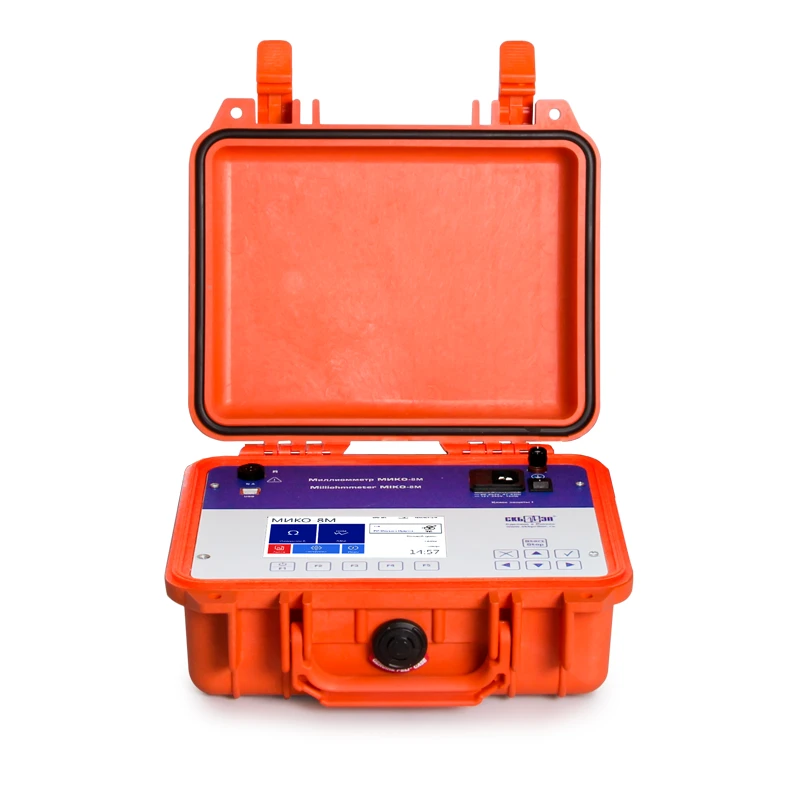

Milliometer MIKO-8M

Description

The software and hardware complex is designed to determine the electroparametric method of non-destructive testing of the technical condition of elements of high-voltage equipment. Also for measuring electrical resistance in inductive and inductive-free circuits in the range of 10 µOhm ÷ 10 kOhm at current strength from 0,001 to 10A.
Special modes taking into account specific measurement settings of different objects.
Full automation of the measurement process: calculation of relative deviations of resistance of windings of three phases between each other; conversion of linear resistance of windings into resistance of phase windings and many others.
The DRM-test mode (DRM-test), allows to carry out an on-load tap-changer with current-limiting resistors without removing the diverter switch tank cover. As a result, the device provides an evaluation oscillogram.
Touch screen, non-volatile memory, mains or internal battery power supply.

Specifications

Type of product according to PP RF 616 Instruments and other instruments for measurement, control and testing

Inspection period 3 a

Temperature range when operating the device -20 °C to +55 °C °C

Environmental protection in transport position IP 67

Environmental protection in working position IP 40

Instrument weight 4 kg

Communication with the MP/PC Bluetooth / USB cable

Built-in memory up to 1,000 measurements

Continuous battery life 8

Battery charging time 3

Power supply (built-in battery) Lithium-ion

Measuring current range in DRM mode 0,1 ÷ 10 A A

Accuracy ±(0,1%+0,5 ??)

Measuring current range 0,001 ÷ 10 A A

Resistance measurement range 1 ?? ÷ 10 k? ohm

Type of product according to PP RF 616 Instruments and other instruments for measurement, control and testing

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
