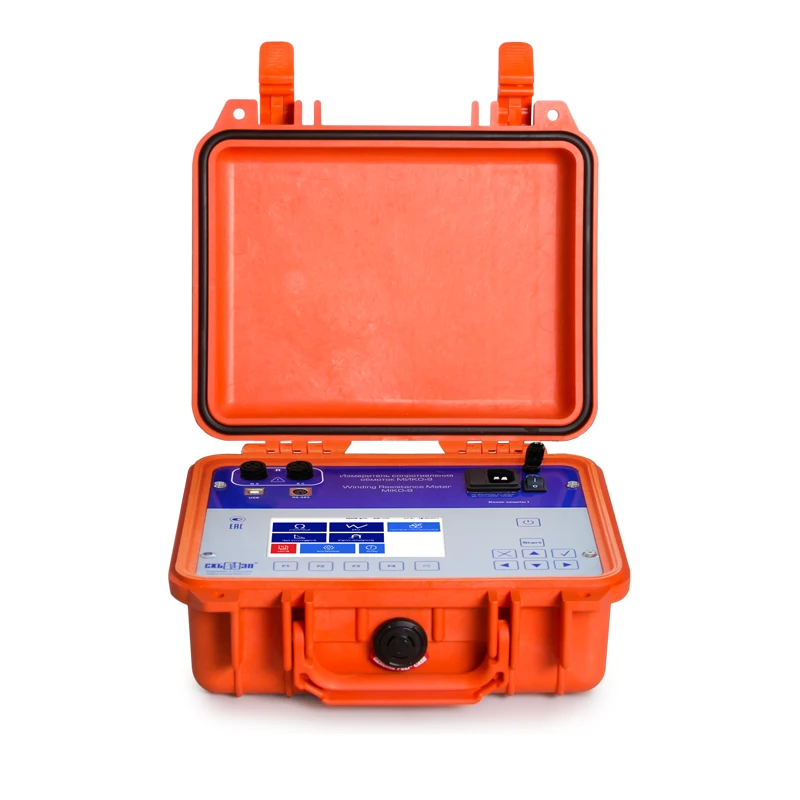

Milliometer MIKO-9A Winding Resistance Meter

Eddy Current Testers

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

The software and hardware complex is designed for determining the technical condition of elements of high-voltage equipment by the electroparametric method of nondestructive testing
Also for measuring electrical resistance in inductive and non-inductive circuits in the range of 10 µOhm ÷ 30 kOhm at current strength from 0,0005 to 10A.
Special modes taking into account specific measurement settings of different objects.
Allows simultaneous measurement and connection to all windings of three-phase transformers and measurement of resistance of two windings of HV/CV windings of high-power power transformers, which significantly reduces the time, labour intensity of measurement procedures and increases the reliability of the obtained measurement results.
Full automation of the measurement process: calculation of relative deviations of resistance of windings of three phases between each other; conversion of linear resistance of windings into resistance of phase windings and many others. The mode of on-load tap-changer diagnostics (DRM-test).

Specifications

Accuracy ±(0,1%+0,5 ??)

Measuring current 0,0005 ÷ 10 A A

Type of product according to PP RF 616 Instruments and other instruments for measurement, control and testing

Inspection period 3 a

Temperature range when operating the device -20 °C to +55 °C °C

Environmental protection in transport position IP 67

Environmental protection in working position IP 40

Instrument weight 4 kg

Communication with the MP/PC 4 kg

Communication with the MP/PC Bluetooth / USB cable

Built-in memory up to 1,000 measurements

Continuous battery life 8

Battery charging time 3

Power supply (built-in battery) Lithium-ion

Measuring current range in DRM mode 0,1 ÷ 10 A A

Resistance measurement range 1 ?? ÷ 30 k? ohm

Type of product according to PP RF 616 Instruments and other instruments for measurement, control and testing

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
