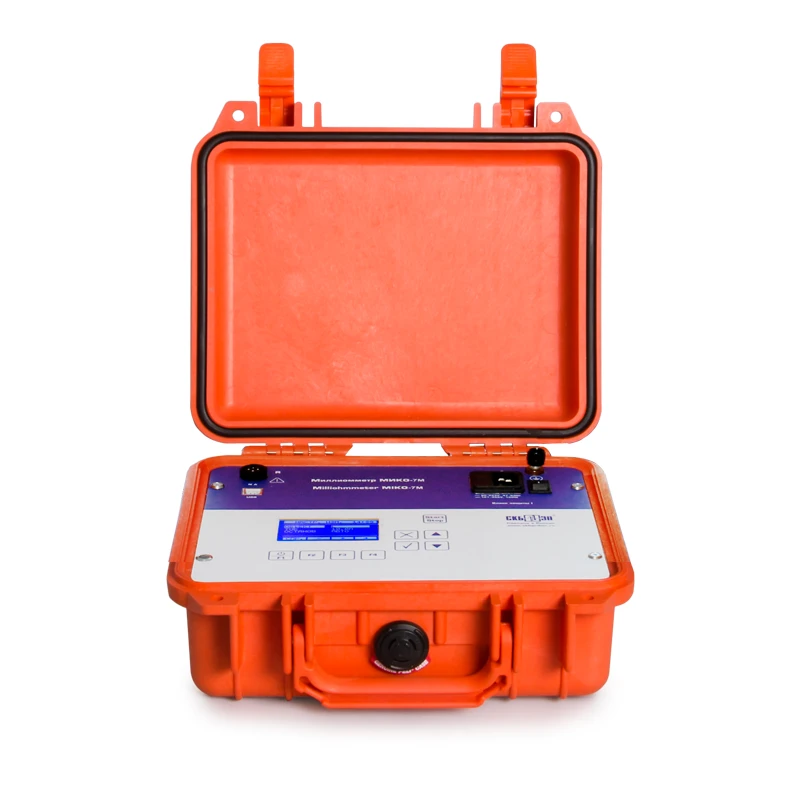

Milliometer MIKO-7MA

The hardware-software complex is designed to determine by electroparametric method of non-destructive testing of technical condition of elements of high-voltage equipment. The device is designed for measuring electrical resistance in inductive and inductive-free circuits in the range of 10 µOhm ÷ 2 kOhm at current strength from 0.01 to 10A.

It has a rather high area of application - it measures electrical resistance of windings of power transformers and measuring current transformers, windings of electromagnets and electric motors; equalising, current-limiting and other resistors of high-voltage switches; contacts and contact connections of power and signal circuits; cables. Special modes that take into account specific measurement settings of different objects. Display of special symbols that characterise: the process of establishing current in the circuit, the speed and direction of change of the measured resistance. Power not only from the mains, but also from an external battery.
