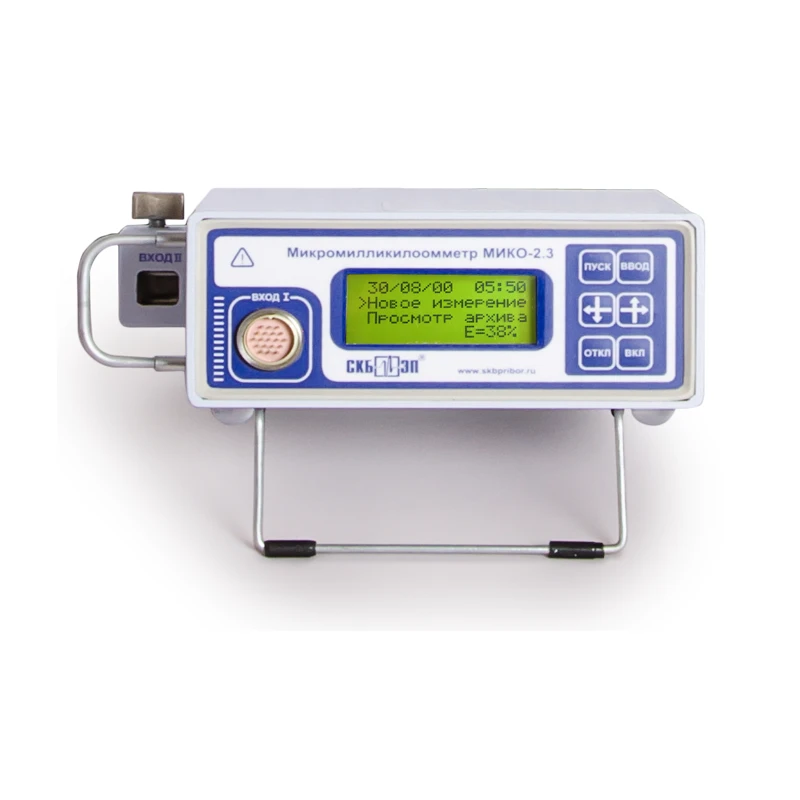

Electrical Resistance Meter Micromillikilohmmeter MIKO-2.3
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
The software and hardware complex is designed to determine by electroparametric and thermometric methods of non-destructive testing of the technical condition of elements of high-voltage equipment.
The universal device is a portable mini-laboratory, which allows to cover all tasks of resistance measurement in electrical equipment, because it works in four modes: "micro-ohmmeter", "milliohmmeter", "kiloohmmeter", "thermometer".
It surpasses all foreign and domestic micro-ohmmeters in terms of weight and measuring current. The closest foreign micro-ohmmeter with current 10÷500A has a weight of 7.5 kg, MIKO-2.3 with a weight of only 2.7 kg gives out a current of 1000A. The high current burns oxide films formed on the contacts and gives a significant error in resistance measurement.
A unique cable design that provides automatic start of one or another mode of the appliance.
Four minutes is enough to fully charge the battery
The universal device is a portable mini-laboratory, which allows to cover all tasks of resistance measurement in electrical equipment, because it works in four modes: "micro-ohmmeter", "milliohmmeter", "kiloohmmeter", "thermometer".
It surpasses all foreign and domestic micro-ohmmeters in terms of weight and measuring current. The closest foreign micro-ohmmeter with current 10÷500A has a weight of 7.5 kg, MIKO-2.3 with a weight of only 2.7 kg gives out a current of 1000A. The high current burns oxide films formed on the contacts and gives a significant error in resistance measurement.
A unique cable design that provides automatic start of one or another mode of the appliance.
Four minutes is enough to fully charge the battery
Specifications
Type of product according to PP RF 616
Instruments and other instruments for measurement, control and testing
Type of product according to PP RF 616
Instruments and other instruments for measurement, control and testing
Inspection period
1 a
Temperature range when operating the device
-20 °C to +40 °C °C
Environmental protection
IP20
Instrument weight
2.7 kg
Built-in memory
100 measurements
Battery charging time
5 min
Power supply (built-in battery)
??????????????
Accuracy
±0,5 % %
Resistance measurement range in "kilo-ohmmeter" mode
0,1 k? ÷ 300 k? ohm
Accuracy
±0,2 % %
Measuring current
0,5 ÷ 5 ? A
Resistance measurement range in "milliohmmeter" mode
100 ?? ÷ 1 k? ohm
Accuracy
±0,2 % %
Measuring current
10 ÷ 1 000 ? A
Resistance measurement range in "micro-ohmmeter" mode
0,1 ?? ÷ 0,1 ? ohm
Type of product according to PP RF 616
Instruments and other instruments for measurement, control and testing
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
