Combined engineering reconnaissance device Dubler-C

Eddy Current Testers

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

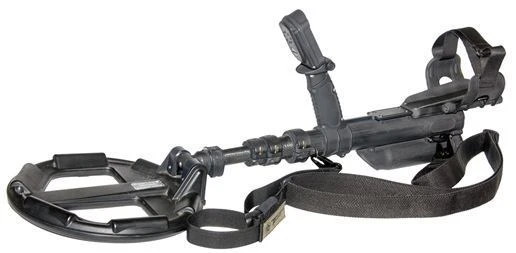

Doubler-C combined engineering reconnaissance device is designed to search for improvised explosive devices (IEDs) and explosive objects (EOIs), containing in its design metal objects and/or wire control lines, as well as buried caches (caches) with weapons and ammunition.
The device is used in field conditions (including in mountainous and wooded areas) with any type of soil of varying degrees of mineralisation.

Specifications

Degree of security ip-66

Depth of detection of PTM of TM-62M type, not less 0.5 m

Depth of detection of Kalashnikov assault rifle, 82 mm calibre mortar mine, not less 0.5 m

Depth of detection of PMN type PMN (PMN-2, PMN-4), battery type "6F22" (Krona), not less than 0.2 m

Detection depth of PFM type RPM, not less 0.15 m

Depth of detection of EDP electric detonator, not less 0.1 m

Depth of detection of a section of wire (with the battery connected to one of the poles) with a core diameter of 0, 5 mm and mor 0.1 m

Depth of immersion of the search element in fresh water 1 m

Maximum length of the boom, not less than 110 mm

Depth of ford to be explored, max. 1 m

Weight in working condition, not more 2.5 kg

Weight in carrying bag, max. 4 kg

Weight of the set in a transport case, not more 15 kg

Continuous operation time from a set of batteries at ambient temperature from -20 to +55 º?, not less than 4

Dimensions of the stacking case 600×470×290 mm

Folded dimensions 450×290×100 mm

Time of preparation for work, not more 5

Output to working mode after switching on the power supply, not more 10

Internal memory, at least 2

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
