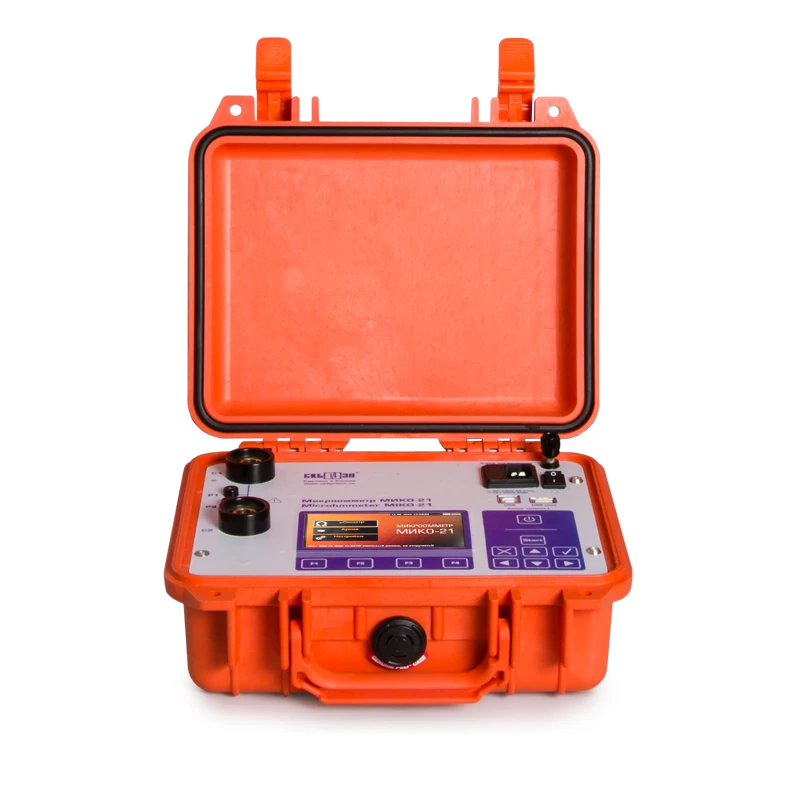

Micro-ohmmeter MIKO-21

Eddy Current Testers

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

High-precision software and hardware complex micro-ohmmeter is designed to measure transient resistances of electrical equipment circuits in the range of 0.1 µOhm ÷ 2 Ohm with the lowest error of ±0.05% at rated current up to 200A.

MIKO-21 has a special algorithm for measuring transient resistances of high-voltage circuit breakers with built-in CTs.

In the MIKO-21 micro-ohmmeter the user can set the current strength in several ways up to 200A.

The instrument has four ways to start the resistance measurement process, where the User can choose the most convenient and suitable operation option.

The built-in archive of passport values of electrical resistances allows the device to automatically detect and signal the measurement result exceeding the permissible limits.

The device can be integrated into measurement systems under PC control of diagnostic laboratories and enterprises - manufacturers of electrical equipment..

Specifications

Type of product according to PP RF 616 Instruments and other instruments for measurement, control and testing

Inspection period 3 a

Temperature range when operating the device -20 °C to +50 °C °C

Environmental protection in transport position IP 67

Environmental protection in working position IP 40

Instrument weight 3.3 kg

PC communication USB and USB host

Built-in memory Up to 2,000 measurements (64 Mb)

Continuous battery life 8

Battery charging time 2

Power supply (built-in battery) Lithium-ion

Number of digits in the measurement result output 5 pc

Accuracy ± 0,05% %

Measuring current 1 ÷ 200 ? A

Resistance measurement range 0,1 ?? ÷ 2 ? ohm

Type of product according to PP RF 616 Instruments and other instruments for measurement, control and testing

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
