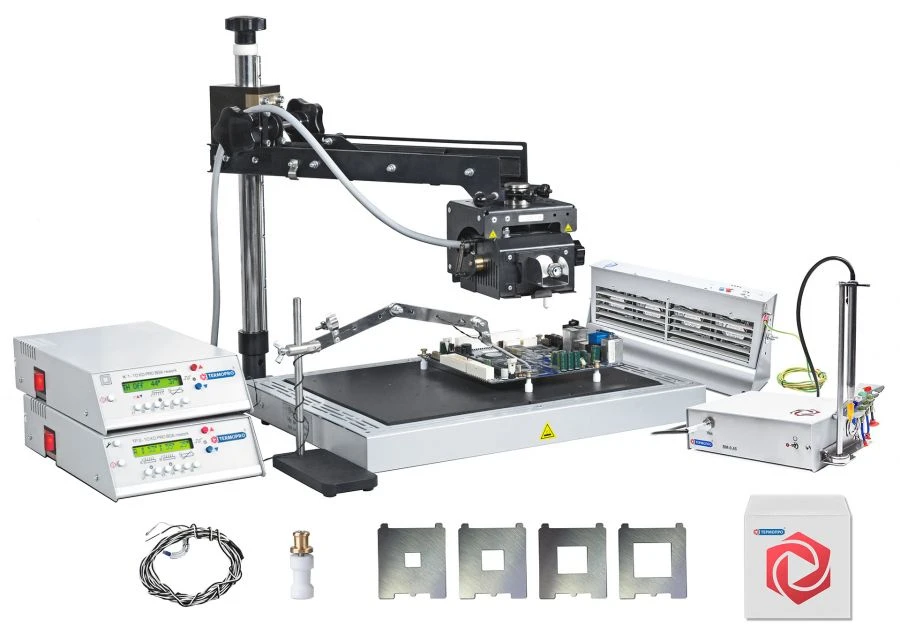

Infrared soldering station IR-650 PRO "Thermopro" in COMFORT set

Soldering and repair of BGA, PLIS, DSP, CPU, GPU, memory. Provides automatic soldering according to the thermal profile of any microchips installed at any point on the PCB, with the size and configuration of the board play virtually no role. Supply voltage [V/Hz] ~220-230 / 50-60Hz. Size of ceramic heater Elstein top radiator [mm] 60x60. Maximum operating temperature [°C] at voltage 230V -650V. Wavelength of IR radiation [µm] 2-10. Size of the thermostat working surface 340x240 (2 independent heating zones). The temperature of the working surface of the thermostat is 350° C. Rated power of the thermostat 2800 W (2 zones 1400 W each). Recommended dimensions of the printed circuit board up to 350x250 mm. Maximum dimensions of the printed circuit board up to 400x300 mm (maximum).
