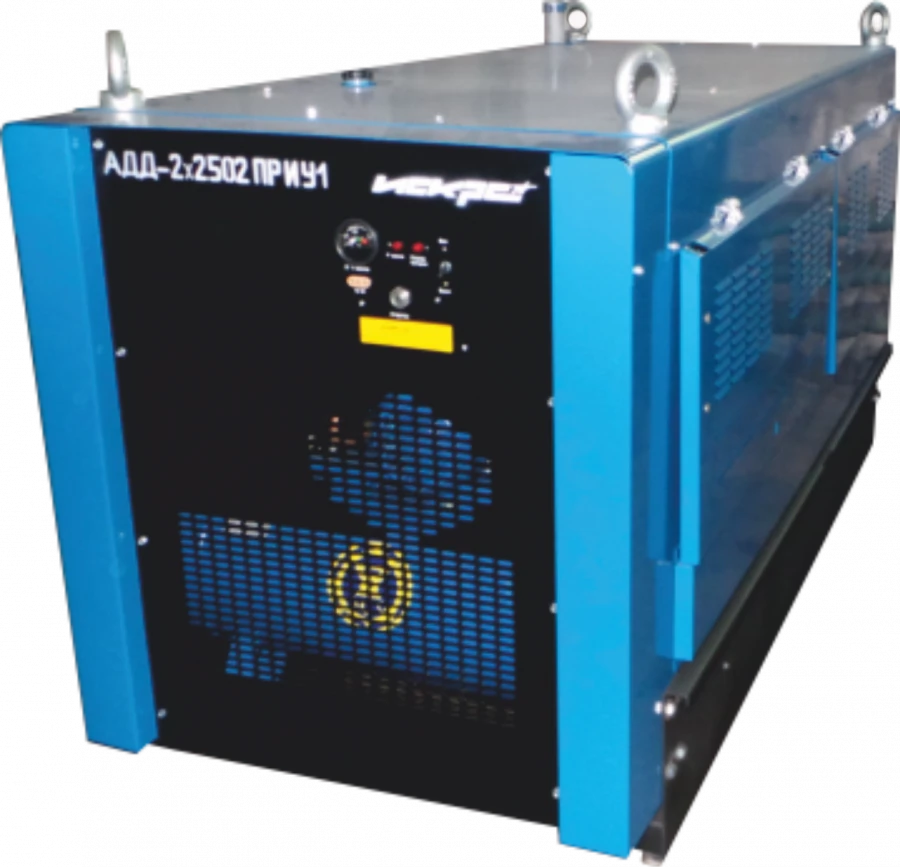

Welding machine ADD-2x2502 PR I U1
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
The welding unit is designed to power two independent welding stations for manual arc welding, cutting and surfacing of metals with direct current with a fusion electrode and manual air-plasma cutting of ferrous, non-ferrous metals and stainless steel with thickness from 0.5 to 20mm. Additionally, it has a three-phase synchronous generator, which is designed to power power tools, drills, grinders, lighting and compressor connection for air-plasma cutting.
The unit is designed to work outdoors in the field. The rated parameters of the unit refer to its operation at an altitude of not more than 1000m above sea level, relative air humidity (monthly average) up to 75% at +15°C and the following ambient air temperature:
-From +40 to -40°C when welding and cutting with direct current piece electrodes;
-From +5 to +40°C for air-plasma cutting (from +40 to -20°C when using Kompressorenoel VDL100 oil when working with a compressor) .....
The unit is designed to work outdoors in the field. The rated parameters of the unit refer to its operation at an altitude of not more than 1000m above sea level, relative air humidity (monthly average) up to 75% at +15°C and the following ambient air temperature:
-From +40 to -40°C when welding and cutting with direct current piece electrodes;
-From +5 to +40°C for air-plasma cutting (from +40 to -20°C when using Kompressorenoel VDL100 oil when working with a compressor) .....
Specifications
Rated welding current at 60% RH
250 A
Rated welding operating voltage
30 V
Rated operating voltage of plasma cutting
70 V
Welding current control limits
35...315 A
Plasma cutting welding current control limits
50...100 A
No-load voltage of welding, not more than
Flat grinder, Specialised grinder V
No-load voltage of plasma cutting, max.
220 V
Nominal welding cycle time
5
Load duration, PU
60 %
Engine model
?144
Motor power
44 kW
Rotational speed
2000
Engine cooling
Air
Summer fuel
?-0,2-40
Winter fuel
Z-0.2 minus 35
Hourly fuel consumption of the engine in nominal operation mode, not more than
0.00122
Fuel tank capacity
60 l
Air pressure in the compressor, no more than
6 MPa
Compressor capacity
3 kW
Compressor capacity
0,25
Receiver volume
60 l
Rated power of the genset
7
Power generator frequency
SBVVBG
Rated voltage of the generator when welding
230 V
Rated voltage of the electric generator during plasma cutting
230 V
Power generator speed
3000
Length
2200 mm
Width
1000 mm
Height
1150 mm
Unit weight without accessories
1200 kg
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
