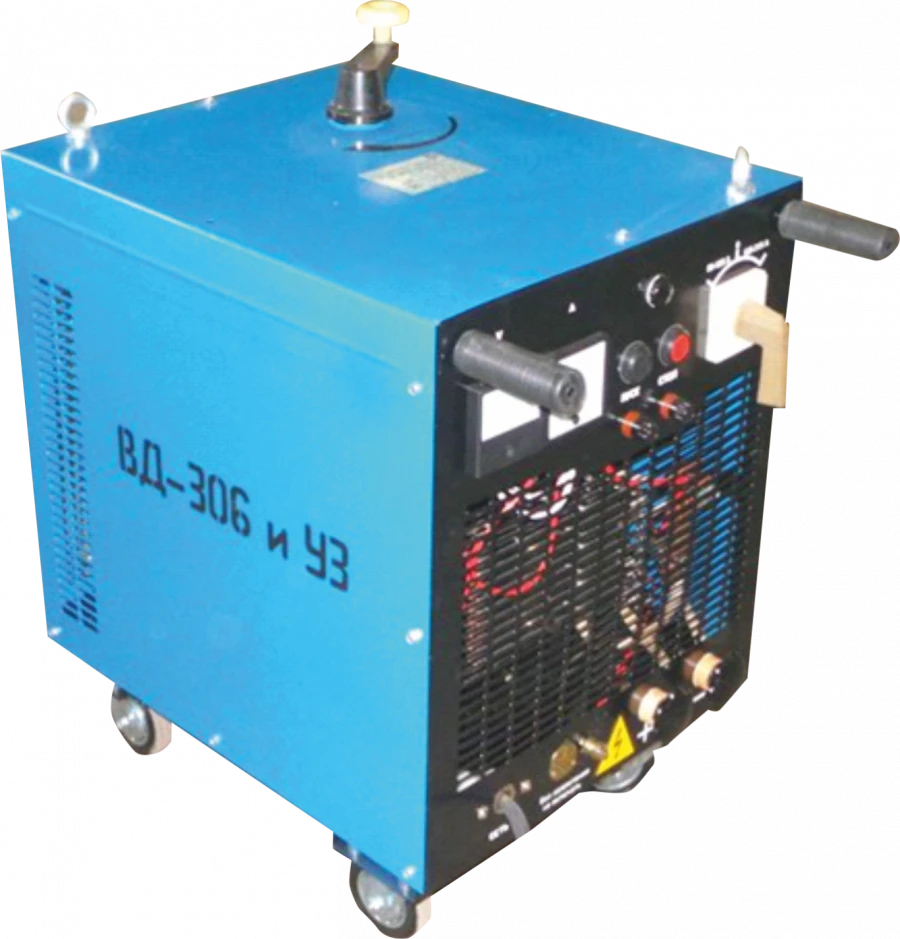

Welding rectifier VD-306 I U3

Electric Soldering & Welding Machines

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

The rectifier VD-306 and U3 is designed for supplying electric arc with direct current at manual arc welding, cutting and surfacing of metals.
It is designed to work outdoors in field conditions. The rated parameters of the unit refer to its operation at an altitude of not more than 1000m above sea level, ambient air temperature from +40°C to -45°C and relative air humidity (monthly average) up to 80% at +15°C. It is not allowed to use the rectifier in explosive environment, as well as environment containing caustic vapours and gases destroying metals and insulation.

Specifications

Rated welding current 315 A

Rated operating voltage 6 V

Welding current control limits 50...320 A

Welding current control limits, small range 50...150 A

Welding current control limits, large range 125...320 A

No-load voltage 70 V

Relative duration of PU load 60 %

Rated supply voltage 380 V

Network frequency SBVVBG

Power consumption at rated load, not more 23

Primary current, max. Built-in memory card slot, support microSD/SDHC/SDXC card (up to 256GB); manual recording/alarm recording A

Efficiency factor, not less than 64 %

Winding insulation class ?

Weight, not more 120 kg

Total average service life, not less than 5 a

Length 720 mm

Width 510 mm

Height 820 mm

Applicability coefficient 45

Degree of protection IP22

Power factor (cos ?), not less than 0.67

Number of phases 3

Class according to the method of protection of a person against electric shock 1

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
