Welding generator GD-5001 ?2 ???. 01

Electric Soldering & Welding Machines

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Welding generator GD-4004 U2 sp. 23 Welding generator GD-5001 U2 rev. 03 Generator welding GD-4004 U2 sp. 21 Generator welding GD-4004 U2 version 25 Welding generator GD-4004 U2 rev. 26

Welding generator GD-2507 U2 Welding generator GD-5001 U2 sp. 00 Welding generator GD-4004 U2 version 14 Generator welding GD-4004 ?2 ???. 22

Description

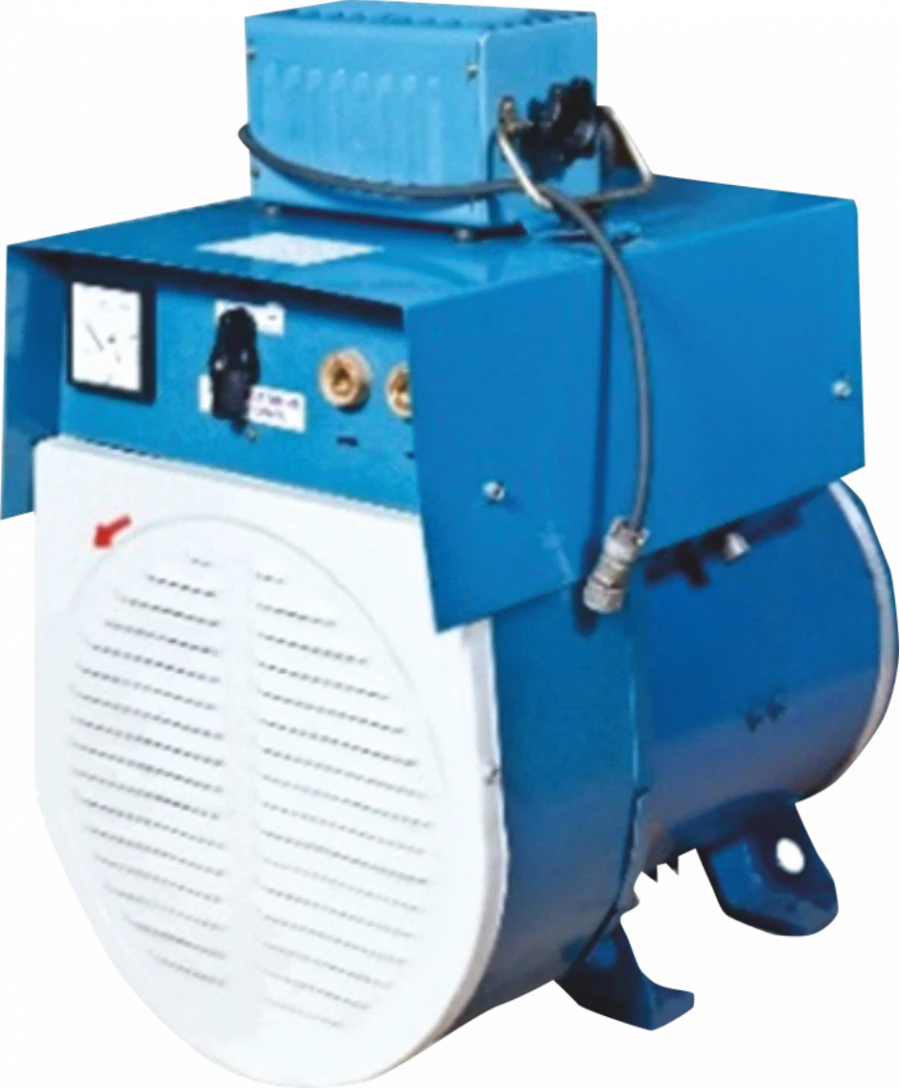

Generator welding GD-5001 ?2 ???.01 is designed to supply one welding station for manual arc welding, cutting and cladding of metals with direct current fusion electrode.
It is used both indoors and outdoors. When working outdoors, the generator must be protected from direct exposure to solar radiation and atmospheric precipitation.
Nominal parameters of the generator refer to its operation at an altitude of up to 1000 metres above sea level, in areas with moderate climate at ambient air temperature from -45°? to +40°? and relative air humidity not more than 80% at 20°?.
Version 01 - the generator is designed for connection to the engine type D144 of the Vladimir Tractor Plant.

Specifications

Rated welding current at 60% RH 500 A

Rated operating voltage 40 V

Welding current control limits 75...530 A

Nominal welding current at 100% RH 387 A

Nominal welding cycle time 10

Load duration, PU 60 %

Efficiency factor, not less than 70 %

Drive motor power 8 kW

Rotational speed 1800...2000

Sound level at the reference radius of 3m, max. 85

Length 760 mm

Width 468 mm

Height 640 mm

Weight, not more 208 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
