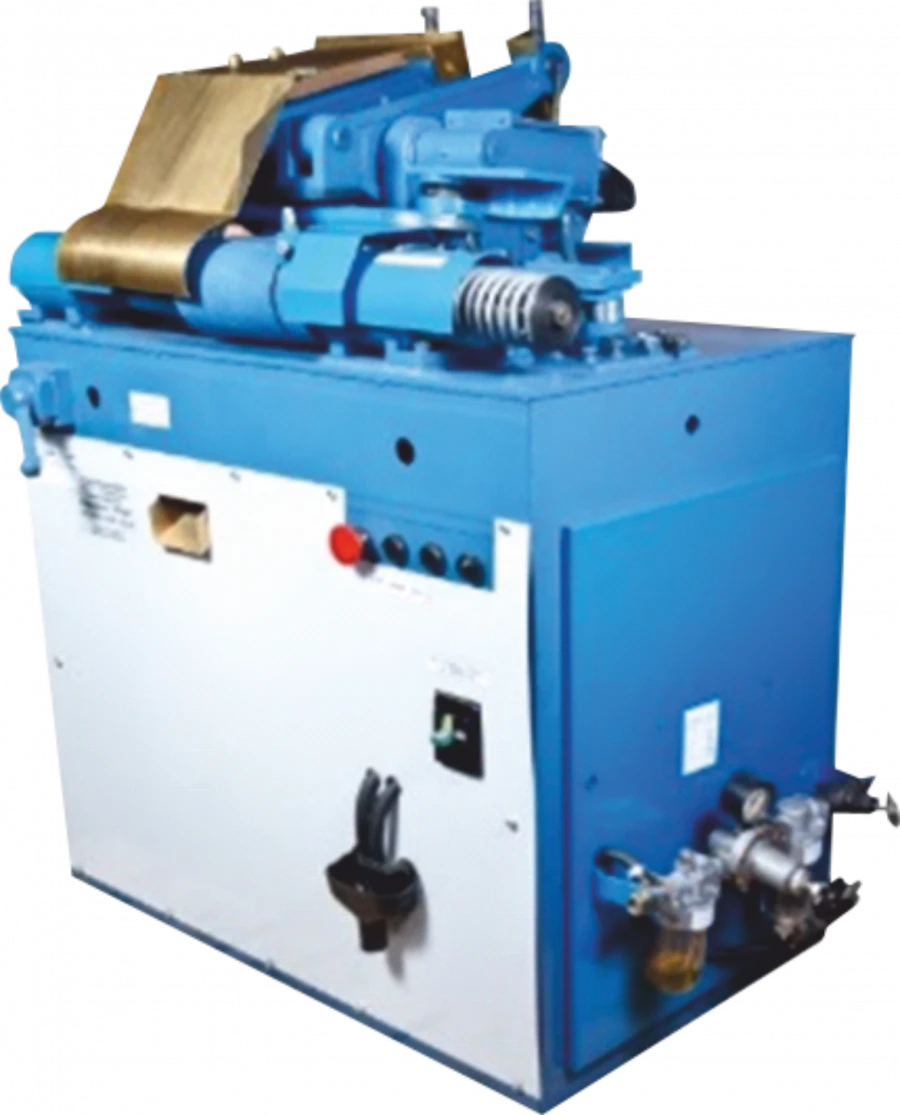

Contact welding machine MSO-201 UHL4
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Machine contact welding MSO - 201 is designed for butt welding by continuous fusion and fusion with preheating of parts made of low-carbon steel with cross-section 120 - 1400 mm2, as well as tool blanks and blanks of building structures made of low-alloy steel, including reinforcement of reinforced concrete of II and III classes, with diameter up to 32 mm inclusive.
The special automatically performed precipitation process ensures the stability of welded joints quality.
The machine is designed for operation in the following conditions: ambient temperature from plus 1° C to plus 35° C, ambient humidity up to 80% at 25° C, atmospheric pressure from 84.0 kPa (630 mmHg) to 106.7 kPa (800 mmHg).
Category 4 provides for operation of the machine in closed heated (cooled) and ventilated rooms.
The special automatically performed precipitation process ensures the stability of welded joints quality.
The machine is designed for operation in the following conditions: ambient temperature from plus 1° C to plus 35° C, ambient humidity up to 80% at 25° C, atmospheric pressure from 84.0 kPa (630 mmHg) to 106.7 kPa (800 mmHg).
Category 4 provides for operation of the machine in closed heated (cooled) and ventilated rooms.
Technical Specifications
| Weight, not more | 720 kg |
|---|---|
| Recommended cross-sectional range of welded parts made of mild steel | 120...1400 mm2 |
| Recommended cross-sectional range for welded low-alloy steel parts | 120...800 mm2 |
| Nominal diameter of low carbon steel parts to be welded | Built-in memory card slot, support microSD/SDHC/SDXC card (up to 256GB); manual recording/alarm recording mm |
| Rated voltage of three-phase supply network at 50 Hz frequency | 380 V |
| Highest short-circuit power consumption | 310 |
| Maximum permissible continuous power, max. | 43 |
| Power at SP=50% | 61 |
| Secondary voltage of no-load the highest, not less than | 7 V |
| Secondary no-load voltage the smallest, not more | 4 V |
| Travelling platen stroke, not less than | 25 mm |
| Length | 1025 mm |
| Width | 970 mm |
| Height | 1370 mm |
| Rated continuous secondary current, not less than | 8 |
| Power factor at short circuit at nominal stage, not less than | 0.5 |
| Highest settling speed, not less than | 40 |
| Highest short-term capacity at welding of rods of nominal diameter, not less | 160 |
| Long-term productivity at welding of rods of nominal diameter, not less than | 120 |
| Long-term productivity at welding of rods with cross-section of 320 mm square, not less | 140 |
| Highest design air flow rate at pressure of 0,49 MPa in the draft and clamping cylinders, not more than | 0.5 |
| Cooling water flow rate | 300 |
| Minimum gauge force | 5000 |
| Settling force, max. (at compressed air pressure 0,62 MPa) | 25000 |
| Rated gauge force (at compressed air pressure of 0.49 MPa) | 20000 |
| Nominal stage | 7 |
| Number of stages of secondary voltage regulation of welding transformer | 8 |
| Rated clamping force, not less than | 40000 |
| Number of phases for machine connection | 2 |
| Highest secondary current, not less than | 45 |
| Resistance of secondary circuit to direct current | 58 |
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
