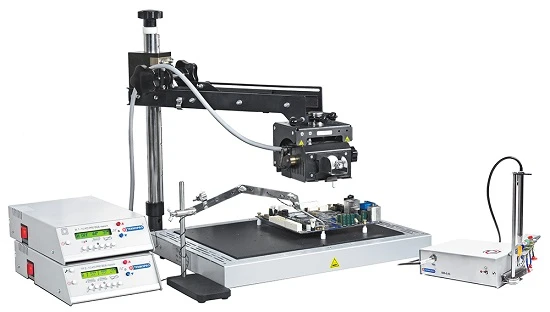

Infrared soldering station IR-650 PRO "Active" set

Manufacturer:
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Key Highlights

  • Made in Russia - engineered for durability
  • Suitable for challenging environments
  • Lower cost of ownership than European alternatives
  • Bulk orders available with volume discounts
  • Documentation and customs clearance assistance provided
Kit with vacuum tweezers. BGA soldering for specialised products requires precise adherence to the recommended thermal profile. In the IR-650 PRO, thermal profiling
is provided by automatic temperature correction of all heaters by means of feedback on the temperature of the sensor,
installed on the printed circuit board in the BGA soldering zone.
The IR station is equipped with vacuum tweezers and air cooler for PCBs. IR-650 PRO provides automatic soldering of any microchips installed at any point of the printed circuit board, while the size and configuration of the board play virtually no role.
configuration of the board practically do not play any role. It is estimated that since 2008 more than 2,500,000 BGA packages have been soldered on the IR-650 PRO stations.
pieces of BGA packages.
PLIS, DSP, CPU, GPU, memory - all these components in BGA packages can be easily installed on a multilayer printed assembly of class 5
with internal thermoconductive layers of copper of increased thickness, using infrared soldering station IK-650 PRO.

Technical Specifications

Assignment Universal digital infrared repair center IK-650 PRO is designed for soldering and repair of printed circuit assemblies with BGA, made both by lead-free and traditional technologies, with working out of thermal profile on heaters and printed circuit board.
Maximum power consumption power (including temperature controller) 300 W
Rated power of the infrared radiator 250 W
Length of the working surface of the infrared radiator 60 mm
Width of the working surface of the infrared radiator 60 mm
Maximum transmitter temperature 650 °C
Wavelength of IR radiation, µm 2...10
Length of the working surface of the thermostat 320 mm
Working surface width of the thermostat 240 mm
Maximum temperature of the working surface of the thermostat 350 °C
Rated capacity of the thermostat 2800 W
Recommended PCB length 350 mm
Recommended PCB width 250 mm
Maximum PCB length 400 mm
Maximum PCB width 300 mm
Power of vacuum tweezers VP-0.45 5 W

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
