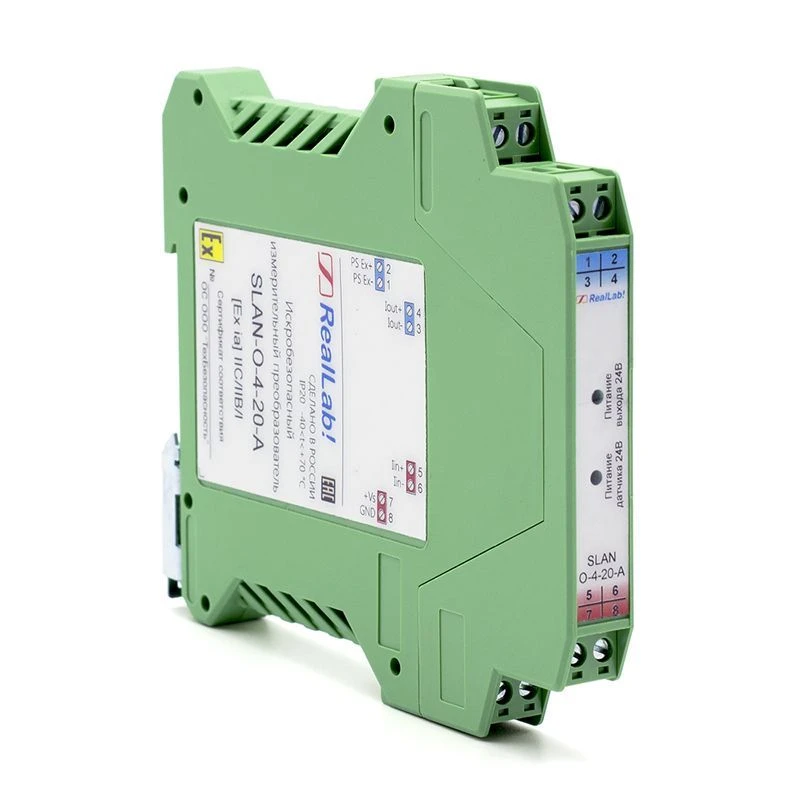

SLAN-O-4-20-A Intrinsically safe 4-20 mA signal transmitter with active input

Purpose: intrinsically safe transmission of current signal from explosion-proof area to explosion-proof area
Intrinsic barrier type: galvanically insulated active.
Signal type/sensor: current 4-20 mA
Connection: 1 analogue input channel of passive signal 4...20 mA (active input of the converter with power supply for control device), 1 analogue output channel of active or passive signal 4...20 mA
Conversion error: basic conversion error not more than ±0.1 %
Galvanic isolation: input, output, power supply - 2500 V
Supply voltage: 10-30 V
Power consumption: not more than 2 W
Explosion protection marking: [Ex ia] IIC/IIB/I
Operating temperature range: -40°C to +70°C
Average MTBF: 120 000 hrs.
Average service life, not less than: 12 years
Overall dimensions (HxWxH): 99x12.6x113.6
Mounting: on DIN-rail
Degree of protection: IR20 according to GOST 14254-2015
Warranty: 18 months
