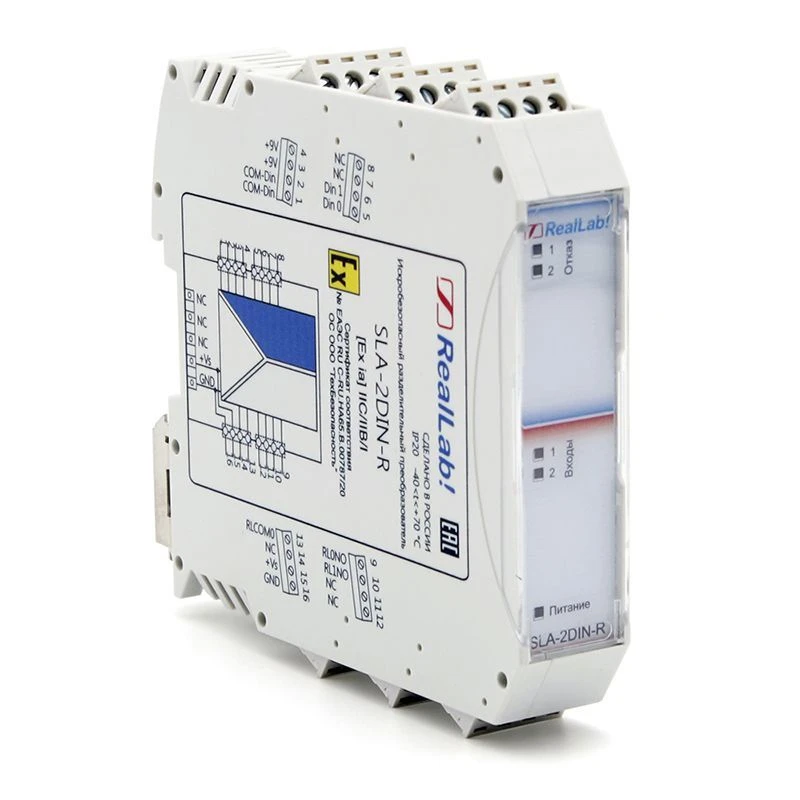

SLA-2DIN-R Intrinsically safe NAMUR binary signal divider converter with relay outputs

Purpose: intrinsically safe transmission of discrete signals in NAMUR standard from the hazardous area to the explosion-proof area.
Intrinsic barrier type: active with galvanic isolation
Signal type/sensor: binary signal in NAMUR standard
Number of sensors to be connected: 2
Signal parameters or connection method: 0-9 V
Relay output parameters: 4A/30V; 0.5A/250V
Number of outputs: 2
Power supply voltage: 10 - 30 V
Power consumption: not more than 1.5 W
Explosion protection marking: [Ex ia] IIC/IIB/I
Protection class of a person against electric shock: 01 according to GOST 12.2.007.0-75
Operating temperature range: -40°C to +70°C
Average MTBF: 100 000 h.
Average service life, not less than 12 years
Overall dimensions (HxWxH): 99.4x22.5x109
Mounting: on DIN-rail
Degree of protection: IR20 according to GOST 14254-2015
Warranty: 18 months
