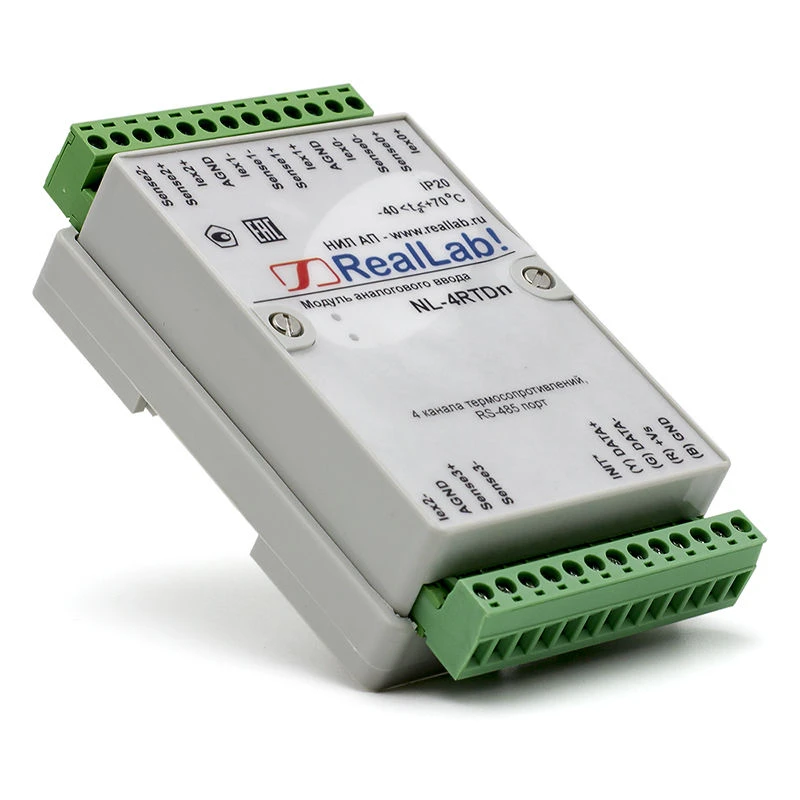

NL-4RTDn Thermal resistance analogue input module
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Purpose: temperature measurement with thermistor sensors Connection: 4 differential channels of analogue input signals of thermistor types: Pt50, Pt100, Pt500, Pt1000, 50P, 100P, 500P, 1000P, Cu50, Cu100, Cu500, Cu1000, 50M, 100M, 1000M, 100N, 500N, 1000N Measuring ranges: independent setting of the thermoresistance type for each channel Connection diagrams: 4 sensors by 4 (2) wire or 3 by 3 wire connection schemes Digit capacity: 16 digits Sensor control: hardware diagnostics of sensor breakage Galvanic insulation: 2500V Temperature: -40 to +70C Connection interface: RS-485 Protocols: default protocol - DCON and MODBUS RTU (enabled by software) Power supply: from 10 to 30 V Power consumption: not more than 0.5 W Mounting: on DIN-rail Dimensions (HxWxG): 123x76x33 mm Warranty: 18 months
Specifications
Assignment
for temperature measurement with TCM, TSP, TSN sensors and temperature stabilization
Material
ABS plastic impact resistant
Size
123x76x33
Operating conditions
operating temperature range from -40 to +70 °C
Flammability class according to GOST 28157 (UL 94)
NV
