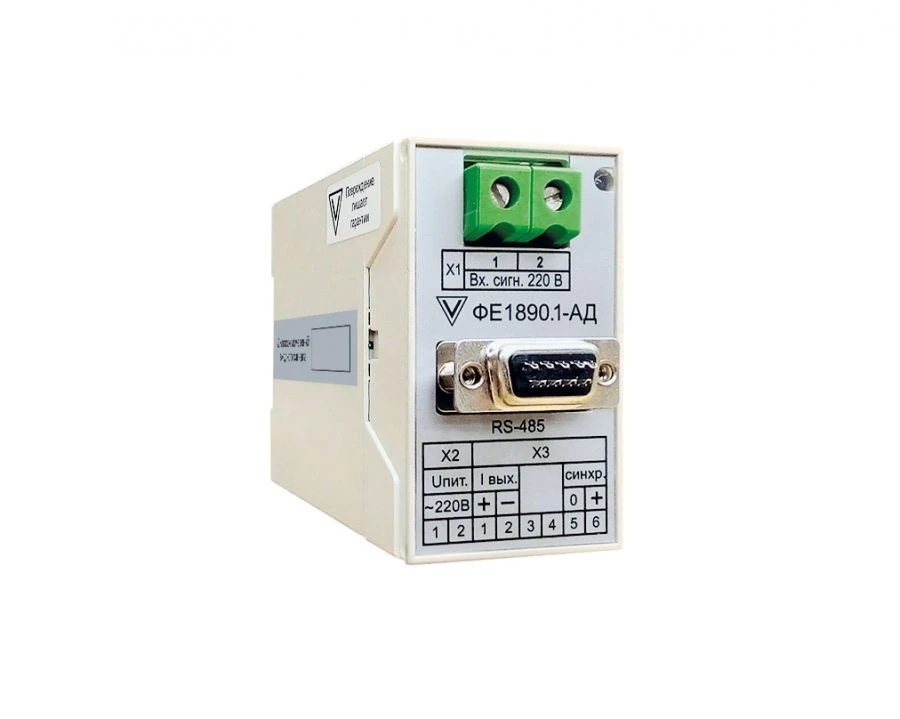

Converters measuring voltage and current of measuring voltage and power of electric networks of direct and alternating current F

Digital Signal Converters

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Converters are designed for linear conversion of voltage and current of DC or AC networks with frequency 50 Hz into unified DC signal and digital signal.

Specifications

Housing material Plastic

Explosion protection no

Ambient temperature range -30...50 °C

Type of primary transducer (PT) no

Output, mA 0...20

Type of digital protocol Modbus RTU

Vibration resistance according to GOST R 52931-2008 complies with the requirements of group m40 according to gost 17516.1

Length of mounting part 116 mm

Mounting of the measuring transducer (MT) On din-rail ts35 (din tn50022) using the clamp; located on the back of the inverter.

Metrological requirements Present error of measured parameters: voltage and AC power - 0;2%; voltage and DC power - 0,2%; mains frequency 45-55 Hz 0,04% on analogue output, 0,02% on digital output.

Input nominal signal 100 V; 220 V; 380 V; 1 A; 5 A; 50 mV; 75 mV

Supply voltage, V 24 V or 220 V DC or AC, 100 V AC

Inspection interval 6 a

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
