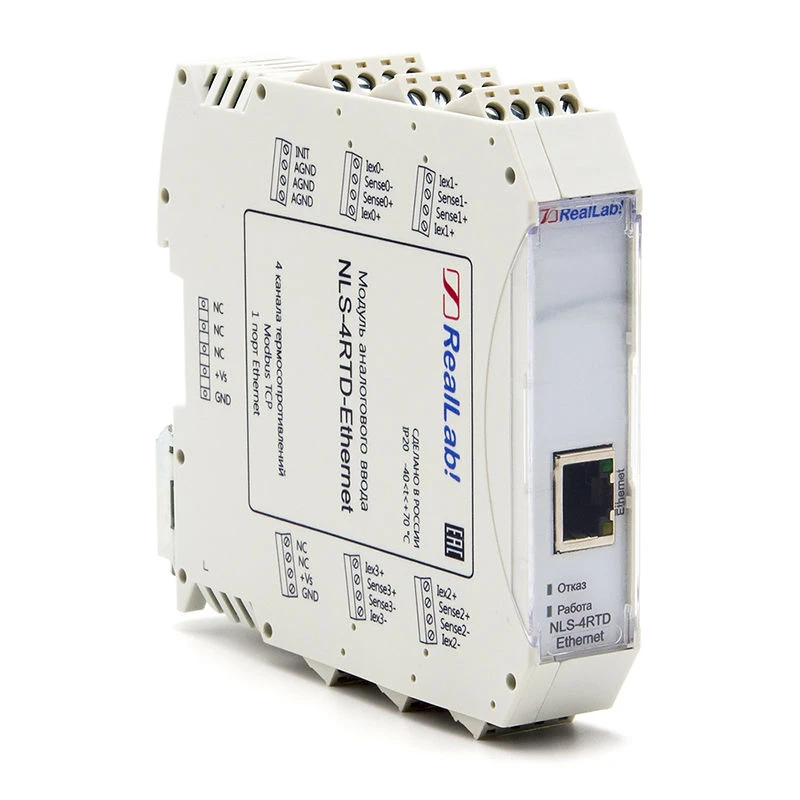

NLS-4RTD-Ethernet Module of analogue input of thermal resistance signals

Purpose: temperature measurement using thermistor sensorsConnection: 4 differential channels of analogue input signals of thermistor types Pt50, Pt100, Pt500, Pt1000, 50P, 100P, 500P, 1000P, Cu50, Cu100, Cu500, Cu1000, 50M, 100M, 500M, 1000M, 100N, 500N, 1000NMM Measurement error: Not worse than 0,1 %Measurement ranges: independent setting of thermistor type for each channelConnection diagrams: 4 sensors on 4-wire, 3-wire or 2-wire connection schemesDigit capacity: 16 digits (ADC)Temperature: -40 to +70SInterface connection: 1 Ethernet portProtocols: Modbus TCP, DHCPEthernet speeds: 10BASE-T/100BASE-TX. Selected automaticallyConfiguration: Web-interface, Modbus TCPPower supply: from 10 to 30 VPower consumption: not more than 1.5 WDesign: slot design, bus connector for power supplyMounting: on DIN-rail OKPD2 code: 26.51.43.117Dimensions (H x W x D): 109x22.5x113 mmWarranty: 18 months
