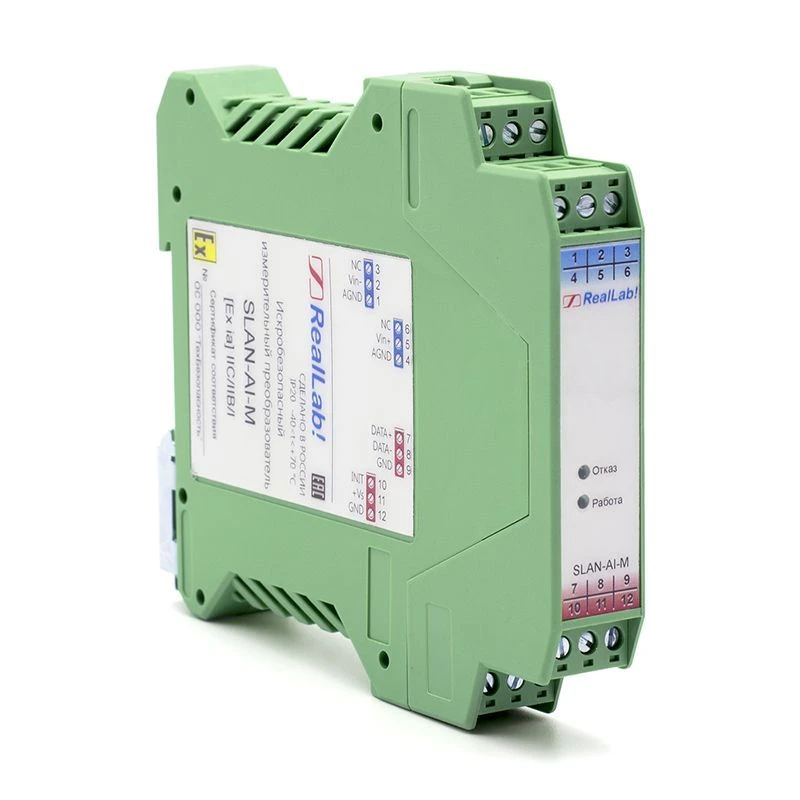

SLAN-AI-M Intrinsically safe measuring converter of analogue signals with RS-485 output (MODBUS RTU)

Purpose: intrinsically safe transmission of analogue signals from hazardous area to explosion-proof area
Intrinsic barrier type: active with galvanic isolation
Signal type: voltage, current
Connection: 1 single or 1 differential analogue input channel with software-settable ranges ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V, ±20 mA
Measurement error: not more than ±0,1 %
Digit capacity: 16 digits (ADC)
Bandwidth: 13.1 Hz
Upper limit of signal variation range: ±10 V (±20 mA with 125 Ohm external shunt)
Galvanic isolation: Group isolation of analogue inputs (2500 V)
Explosion protection marking: [Ex ia] IIC/IIB/I
Connection interface: RS-485
Configuration: via RS-485 interface
Supply voltage: 10-30 V
Power consumption: not more than 1 W
Operating temperature range: -40°C to +70°C
Overall dimensions (HxWxH): 99x17,6x113,7 mm
Degree of protection: IR20
Warranty: 18 months
